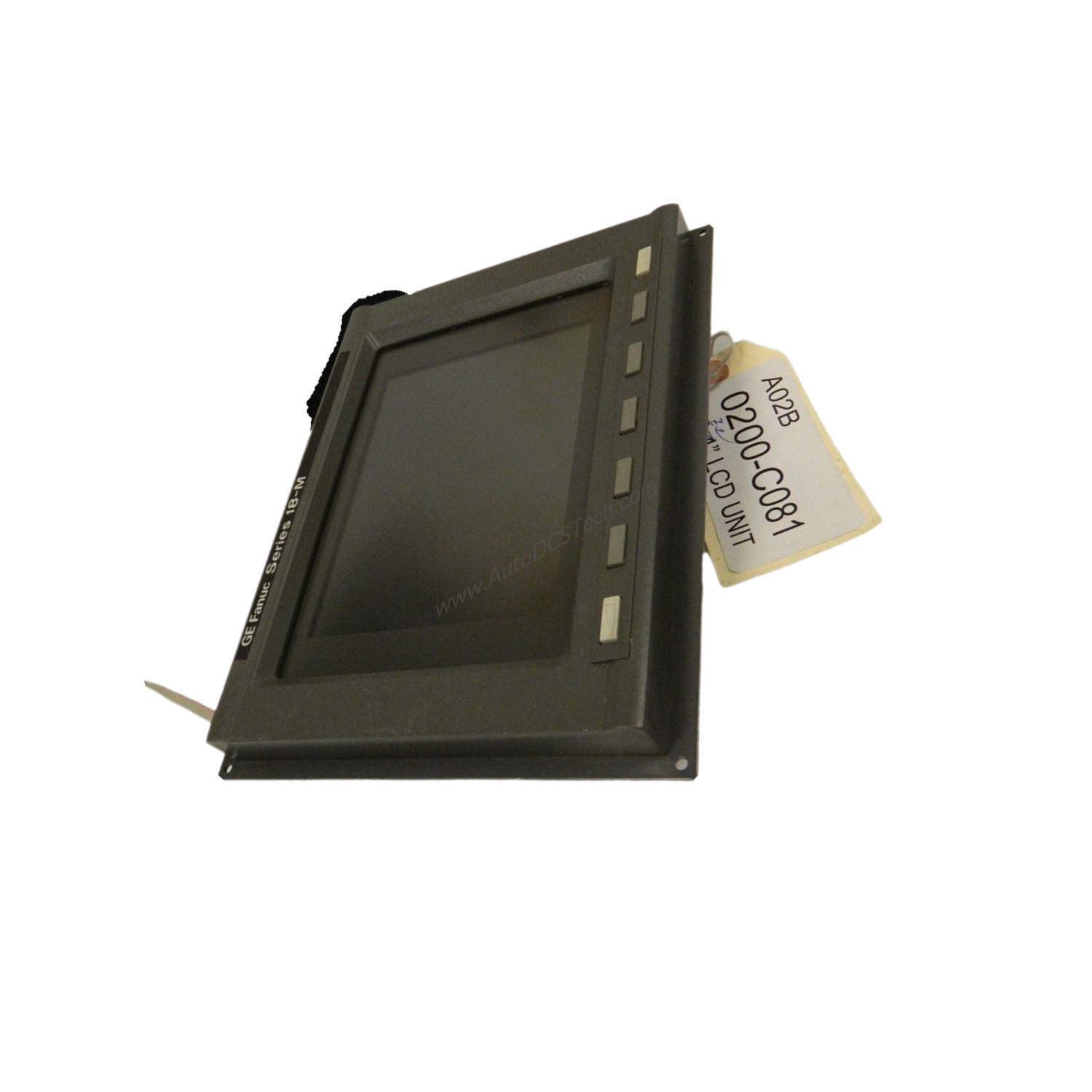

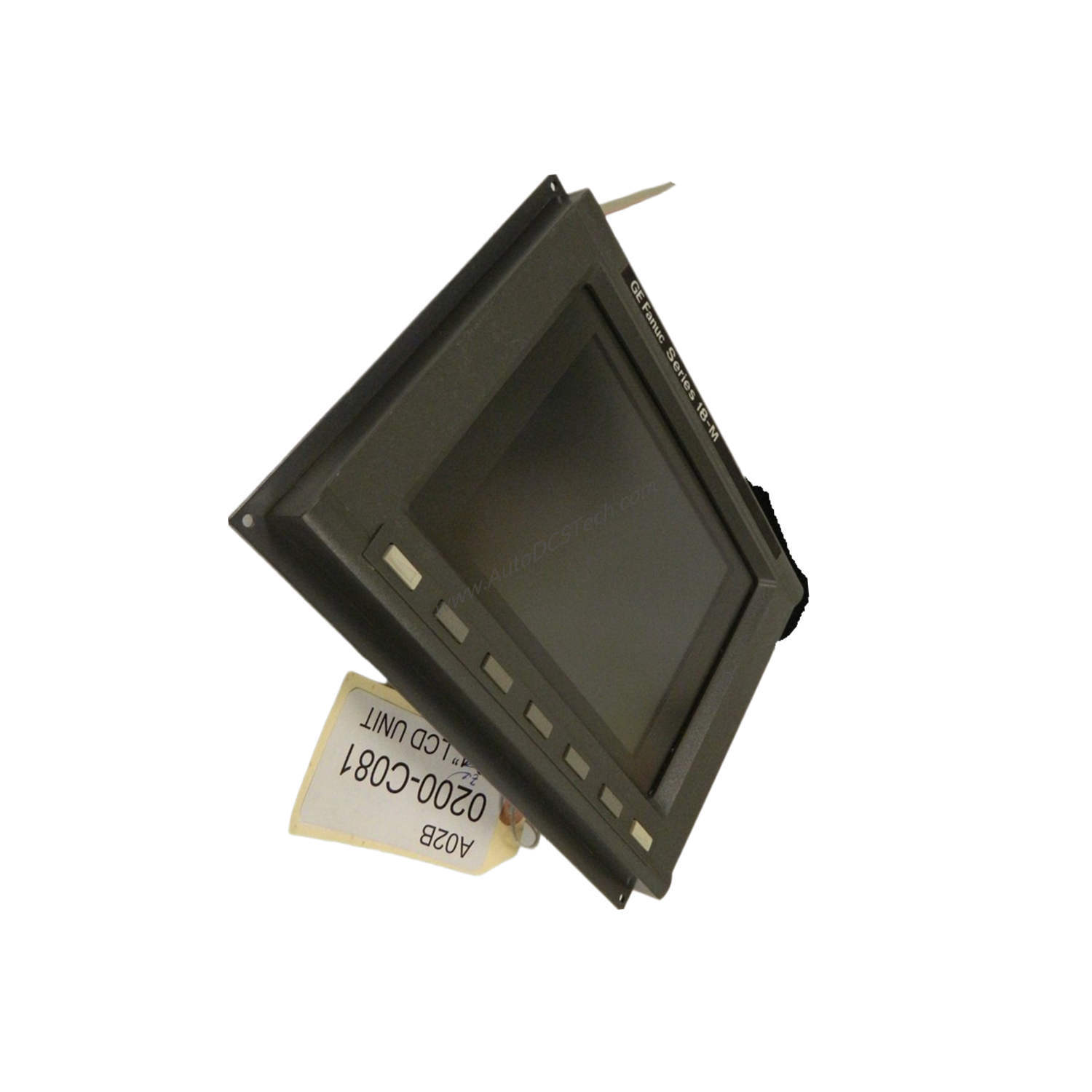

What Is the FANUC A02B-0200-C081?
When your production line demands reliable human-machine interaction, the FANUC A02B-0200-C081 Operator Interface Panel delivers clear communication and intuitive control. This dedicated panel features a 7.2-inch mono LCD display and 7 soft keys for easy navigation. It operates on 24V DC input, making it suitable for standard industrial environments. Part of the A02B product line, this panel is designed for panel mounting and offers flexible connectivity through RS-232, RS-422, and RS-485 interfaces.
Technical Specifications Breakdown
The FANUC A02B-0200-C081 provides essential specifications for dependable operation:
- Display: 7.2-inch mono LCD ensures clear readouts even in challenging lighting.
- Key Type: 7 soft keys enable straightforward menu navigation and function selection.
- Input Voltage: 24V DC input aligns with common industrial power supplies.
- Interface Type: RS-232, RS-422, and RS-485 support versatile communication with controllers and devices.
- Backlight Type: LED backlight maintains visibility in low-light conditions.
Industry Applications
In manufacturing environments, the A02B-0200-C081 excels at machine control and monitoring. For example, on a CNC machining line, operators use the 7 soft keys to adjust parameters and view production data on the mono LCD. The RS-422 interface allows reliable long-distance communication with PLCs. In packaging systems, the panel’s 24V DC input simplifies integration into existing control cabinets, while the LED backlight ensures readability during night shifts.
Installation & Setup Guidance
Mount the FANUC A02B-0200-C081 securely into a panel cutout using the provided mounting hardware. Connect the 24V DC power supply to the designated terminals, ensuring correct polarity. For communication, select the appropriate RS-232, RS-422, or RS-485 interface based on your controller’s requirements. Verify wiring before powering up to prevent damage. The separate type design allows flexible placement within the enclosure.
Maintenance & Reliability
To maximize uptime, inspect the A02B-0200-C081 periodically for dust accumulation on the display and connectors. Clean the front panel with a soft, dry cloth. Ensure ambient temperature stays within 0°C to 50°C during operation and -20°C to 60°C during storage. The LED backlight offers long service life, reducing replacement frequency. Regular checks of cable connections help maintain reliable communication.
Compatibility & Integration
The A02B-0200-C081 integrates seamlessly with FANUC CNC systems and other industrial controllers supporting RS-232, RS-422, or RS-485 protocols. Its panel mount design fits standard enclosures. The 7.2-inch mono LCD provides a compact yet readable interface for various automation tasks.
Frequently Asked Questions
What is the display size of the FANUC A02B-0200-C081?
The display is a 7.2-inch mono LCD, providing clear text and graphics for operator interaction.
What communication interfaces does the A02B-0200-C081 support?
It supports RS-232, RS-422, and RS-485 interfaces for flexible connectivity.
What is the input voltage requirement for this panel?
The panel requires a 24V DC input, standard for many industrial power supplies.
What is the operating temperature range?
The operating temperature range is 0°C to 50°C, with storage from -20°C to 60°C.
How many soft keys does the panel have?
It features 7 soft keys for intuitive navigation and control.
