Introduction

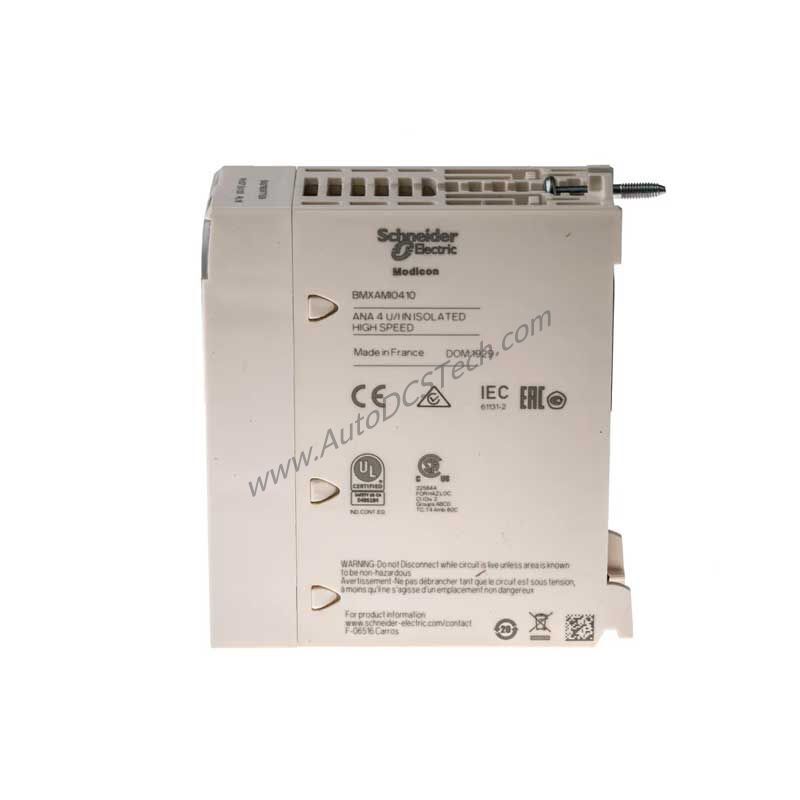

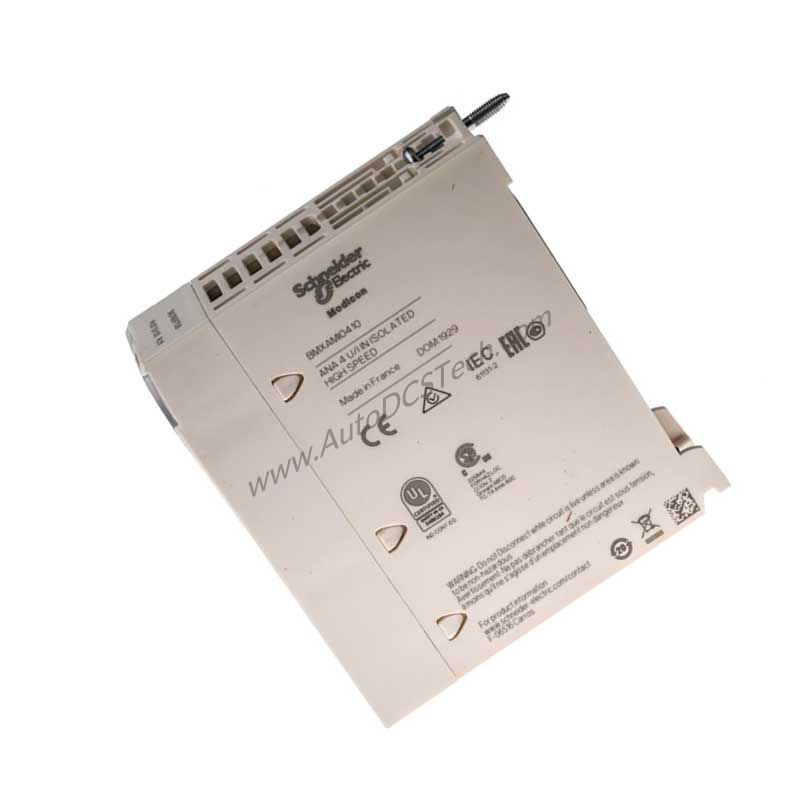

When process control demands precise, high-speed analog signal acquisition, the Schneider BMXAMI0410 analog input module delivers reliable performance. Part of the Modicon X80 family, this module provides four isolated inputs for current and voltage signals, making it ideal for demanding industrial automation applications.
Technical Specifications Breakdown
The BMXAMI0410 features four analog inputs supporting multiple signal types: current ranges of +/-20 mA, 0...20 mA, and 4...20 mA, as well as voltage ranges of +/-10 V, +/-5 V, 0...10 V, 0...5 V, and 1...5 V. With 24-bit analog-to-digital conversion and 16-bit resolution, it ensures accurate measurement. The module offers a fast read cycle time of 1 ms plus 1 ms per channel used, and a nominal read cycle time of 5 ms for four channels. Measurement error is <=0.1% of full scale for voltage inputs and <=0.3% for current inputs over 0...60 °C. Common mode rejection between channels is 120 dB, and isolation voltage is 300 V DC between channels, with 1400 V DC between channels and ground or bus.
Industry Applications
In chemical processing plants, the BMXAMI0410 handles high-speed current loop signals from pressure transmitters, ensuring fast and accurate data acquisition for critical control loops. For water treatment facilities, its isolated inputs prevent ground loop interference when monitoring flow meters across long cable runs. The module's ability to accept both current and voltage signals simplifies inventory and reduces spare parts requirements.
Installation & Setup Guidance
Mount the BMXAMI0410 securely in a Modicon X80 rack, ensuring proper grounding per EN/IEC 61131-2 standards. Connect signals using the 20-way connector, respecting polarity for current inputs. For voltage inputs, use shielded twisted-pair cables to minimize noise. Configure input ranges via the programming software to match your transducers. Verify isolation voltage ratings before connecting to high-potential circuits.
Maintenance & Reliability
Routine inspection of connections and LED status indicators helps maintain uptime. The module's green RUN LED and per-channel diagnostic LEDs provide immediate status feedback. With an IP20 degree of protection, it suits clean indoor environments. Operating temperature range is 0...60 °C, and storage range is -40...85 °C. The module is RoHS compliant since date code 0722, supporting sustainability goals.
Compatibility & Integration
The BMXAMI0410 integrates seamlessly with Modicon X80 backplanes and M340 controllers. It supports 24-bit conversion for high-resolution measurements. The module is certified to Merchant Navy, RCM, UL, CSA, EAC, and CE standards, ensuring global compliance.
Selection Guide & Purchasing Advice
Before ordering, verify that your system uses Modicon X80 racks and that the input signal types match the module's supported ranges. The BMXAMI0410 is available from SpareTechPLC, a trusted supplier of industrial automation parts. Contact SpareTechPLC for current availability and lifecycle status.
