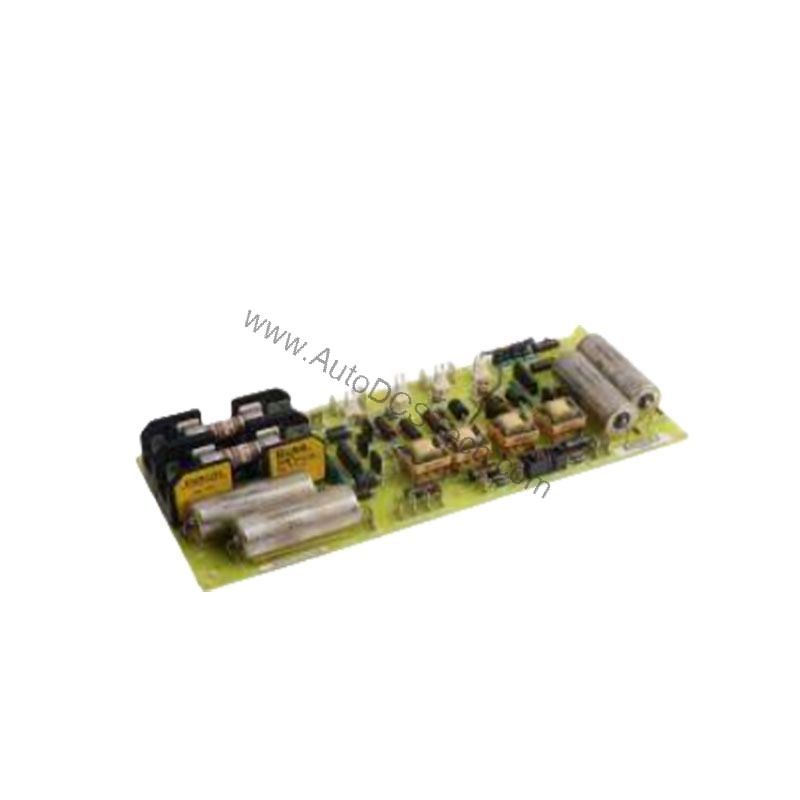

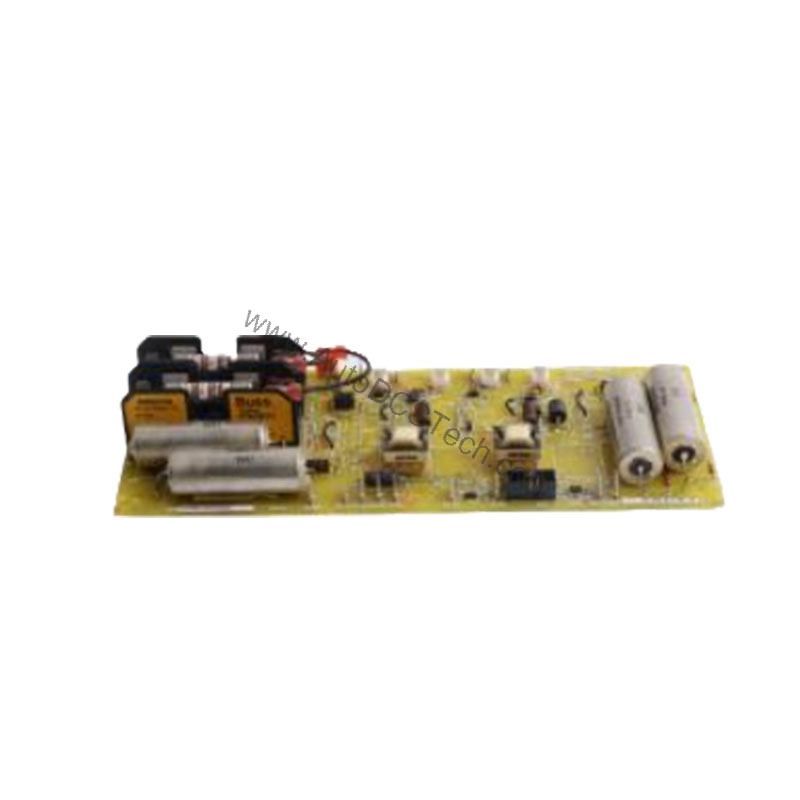

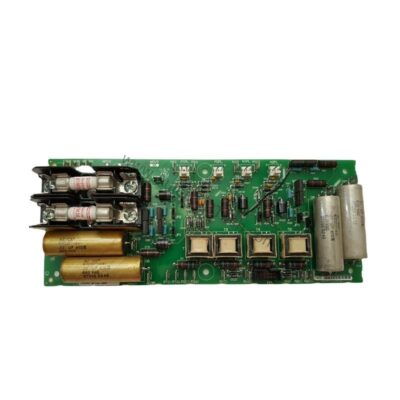

GE DS200FSAAG1ABA Field Supply Gate Amplifier Board for Mark V

Technical Specifications Breakdown

Key parameters for the DS200FSAAG1ABA are listed below for quick reference:

Industry Applications

• Turbine Control Retrofits: Integrates into Mark V Speedtronic systems to replace older amplifier boards with outdated revisions. The DS200FSAAG1ABA includes three significant product revisions (A, B, and artwork A) for improved reliability.
• Non-Reversing Plugging (NRP) and NRX Functions: Jumpers allow configuration for NRX mode, which handles excessive field issues during NRP applications. This flexibility reduces the need for multiple board variants.
• Drive System Field Supply Regulation: The board boosts control signals to manage field supply voltages, ensuring precise modulation in industrial drives.

Installation and Setup Guidance

Handle the DS200FSAAG1ABA with care to prevent electrostatic discharge (ESD) damage. Keep the board in its sealed antistatic bag until installation. Wear a grounded wrist strap attached to an unpainted metal surface during handling. Avoid walking with the board, as movement generates static, especially in dry conditions. Follow original GE manuals for exact replacement procedures.

Maintenance and Reliability

Inspect the two 30 A fuses periodically for signs of fatigue or blowout. Ensure the 10-pin FPL connector remains clean and securely seated. The board operates reliably in 0 to 60 °C environments, but avoid exposure to conductive dust or moisture. Regular visual checks of test points can help detect early signs of component stress.

Problem: Unstable Field Supply Regulation in Turbine Control Systems

Turbine control systems demand precise and reliable field supply regulation to maintain operational stability. The GE DS200FSAAG1ABA Field Supply Gate Amplifier Board addresses this challenge by providing robust phase control for silicon-controlled rectifiers (SCRs), ensuring consistent field voltage even under demanding conditions.

Solution: Phase Control and Fuse Protection for Reliable Operation

The DS200FSAAG1ABA uses phase control to regulate four SCRs, enabling plugging operations essential for turbine speed management. Two Limitron fast-acting fuses (KTK symbol, 30 A rating) protect fields up to 24 A and the AC metal-oxide varistor (MOV). For fields exceeding 24 A, external fuses are required. This design minimizes downtime caused by overcurrent faults.

Compatibility and Integration

This board is designed for the GE Mark V series, specifically the Drive Control product line. It is compatible with both NRP and NRX configurations, offering flexibility in system design. The G1 series grouping tag indicates normal PCB coating, suitable for standard industrial environments.

Selection Guide and Purchasing Advice

When ordering the DS200FSAAG1ABA, verify that your system requires the FSAA functional acronym and normal coating style. AutoDCSTech stocks this board and can confirm availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering to ensure compatibility with your Mark V system.
