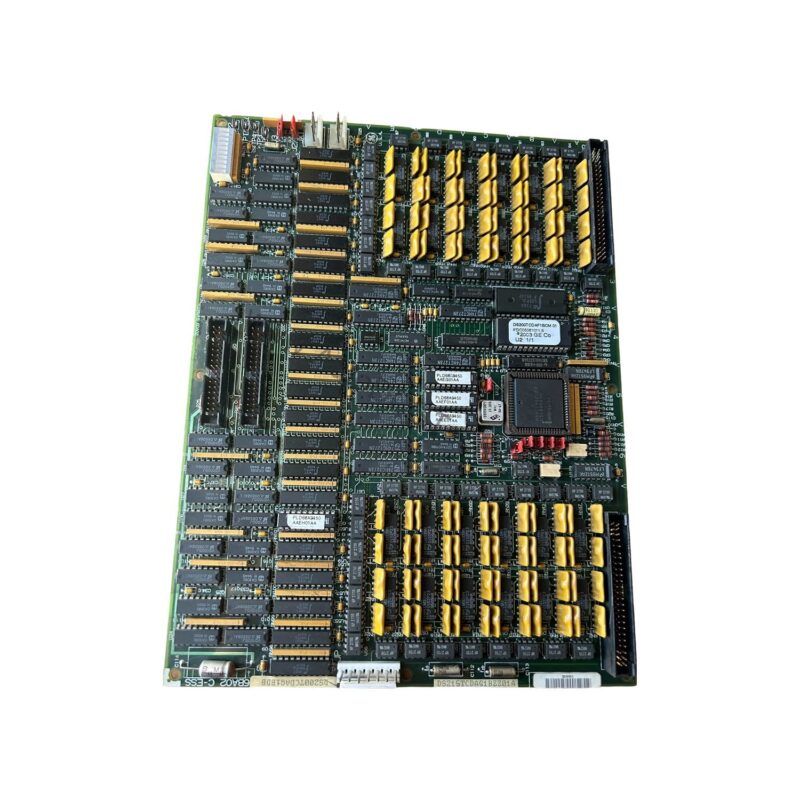

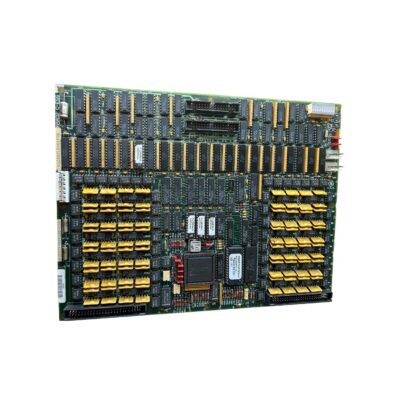

DS200TCDAG1BDB: Digital I/O Board
The DS200TCDAG1BDB is the Digital I/O Board covered on this page. The attribute that decides whether it fits the existing installation without modification is +5 V dc, 6 A.
The reason to specify this exact variant is digital i/o board. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. digital i/o board sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching +5 V dc, 6 A against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | DS200TCDAG1BDB |
| Part Number | DS200TCDAG1BDB |
| Series | Mark V LM |
| Product Type | Digital I/O Board |
| Power Requirements | +5 V dc, 6 A |
| Number of Relay Channels | 12 |
| Power Supply Voltage | 28 V dc |
| Mounting | DIN-rail mounting |
| Technology | Surface mount |
| Operating Temperature | -30 to +65°C |
| Size | 15.9 cm high x 17.8 cm |
| Country of Origin | United States |
| Manual | GEI-100182B |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ds200tcdah1bgd-mark-v-digital-i-o-board-for-turbine-control | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | DS200TCDAG1BDB |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
