Product Overview

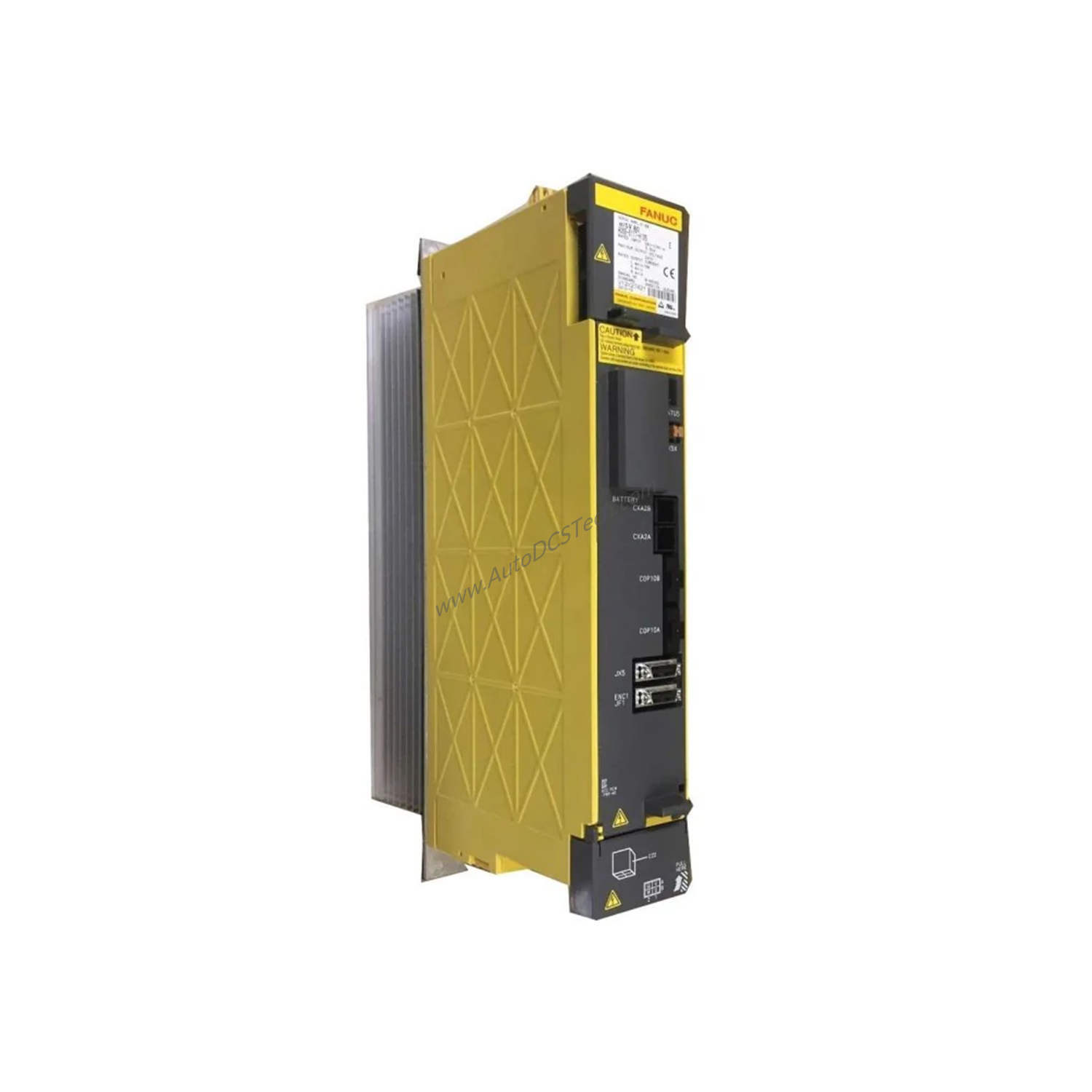

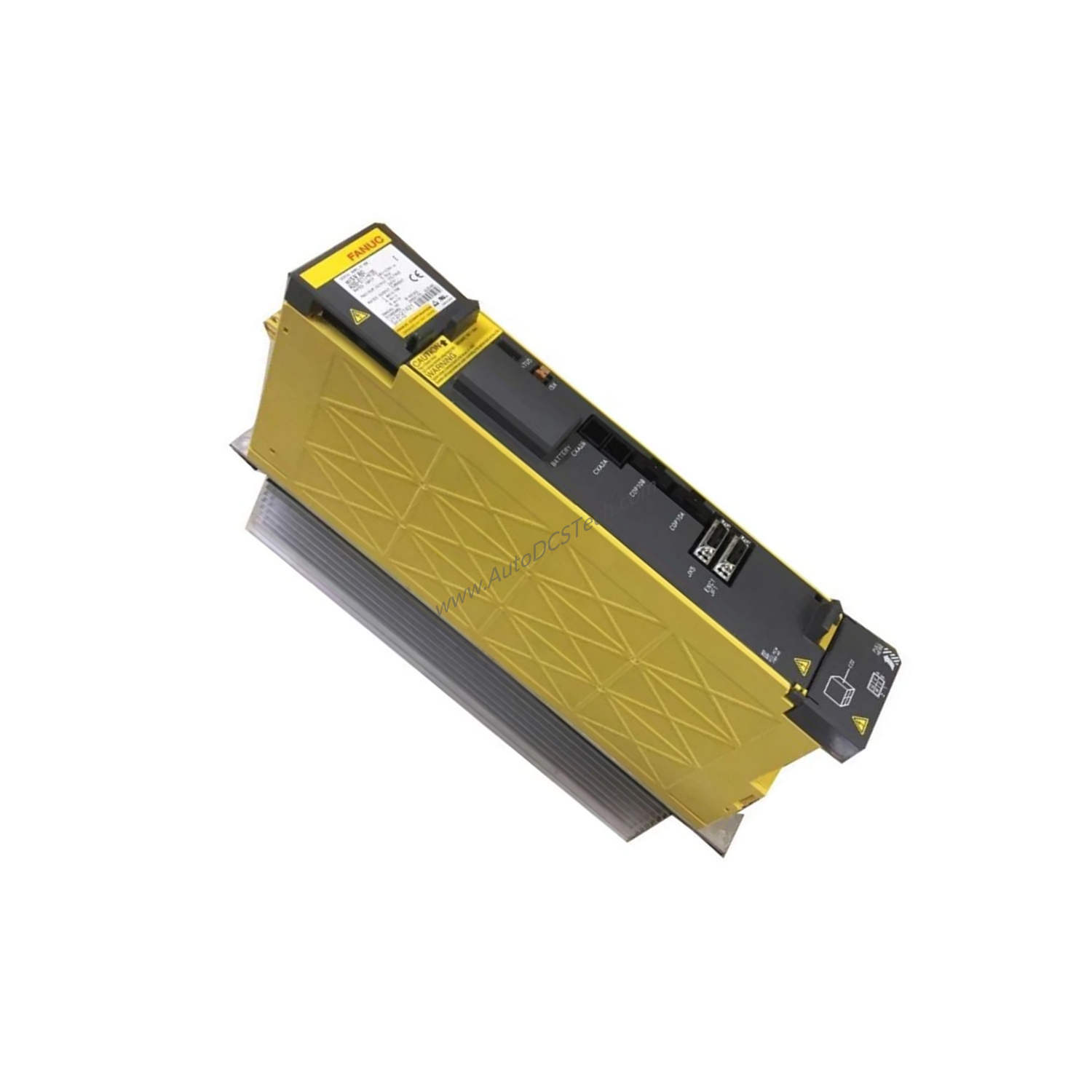

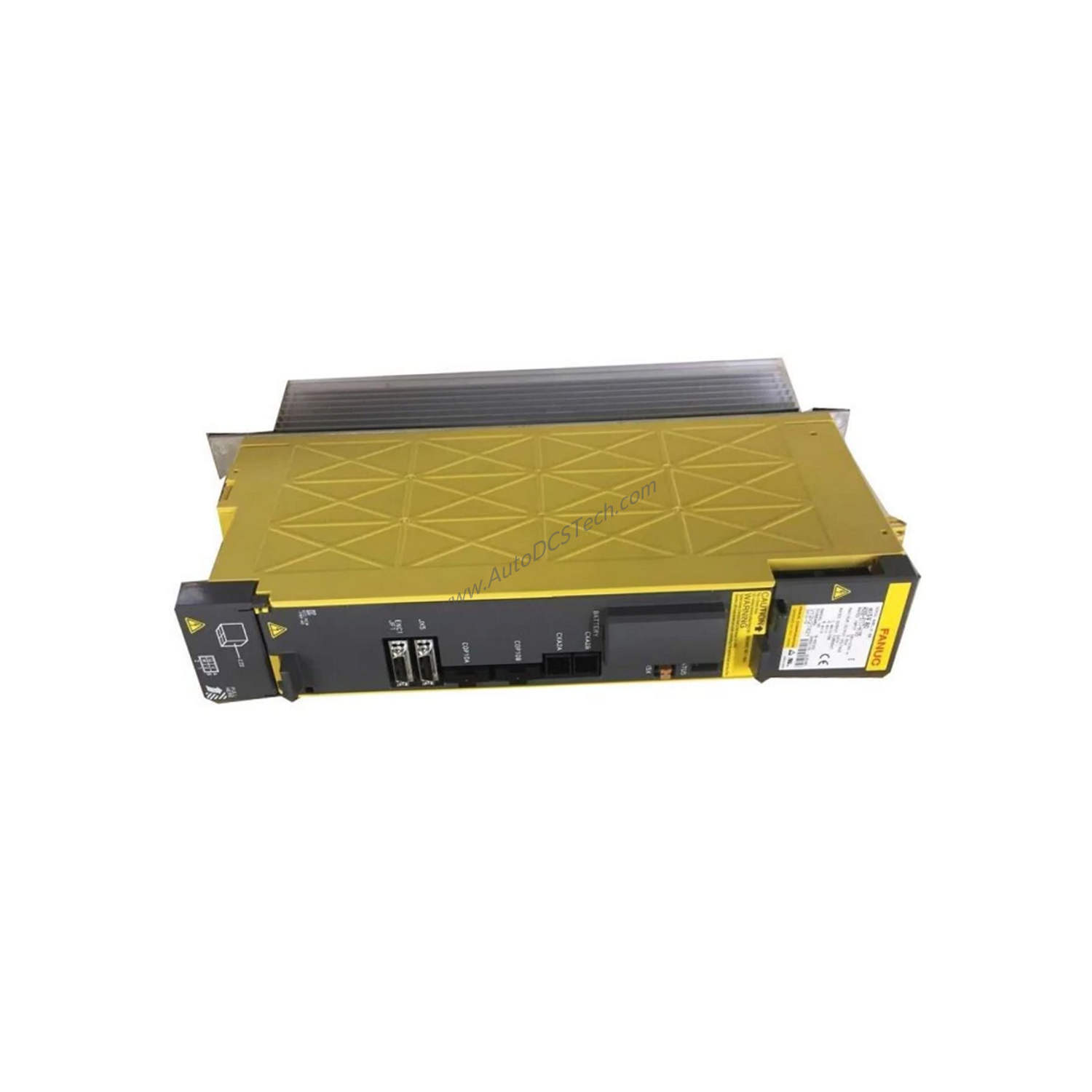

When your application demands precise motion control and reliable power delivery, the FANUC A06B-6117-H103 servo amplifier module delivers exactly that. This module is part of the FANUC A06B product line and is engineered for dynamic control tasks. It provides a rated output current of 6.5 A on the L-axis, making it suitable for demanding operations in industrial automation.
Technical Specifications Breakdown
Understanding the key specifications helps you evaluate if this module fits your system. The A06B-6117-H103 operates with an input voltage range of 283–339 VDC and delivers a rated input power of 2.5 kW. It supports an output frequency range from 0.1 Hz up to 800 Hz, offering versatility for various speed and torque requirements. The output voltage is 200–240 VAC, which matches many standard motor systems. The module also accepts input frequencies of 50/60 Hz, providing flexibility across different power supply regions.
Industry Applications
This servo amplifier module is well-suited for applications such as CNC machining centers, robotic arms, and precision material handling systems. In a CNC milling machine, for example, the 6.5 A L-axis output ensures consistent torque delivery during heavy cutting passes. The wide output frequency range allows smooth acceleration and deceleration, reducing mechanical stress. For robotic pick-and-place operations, the module's reliable power delivery helps maintain cycle times and positioning accuracy.
Installation & Setup Guidance
Before installation, ensure the ambient temperature stays between 0°C and 55°C, and ambient humidity does not exceed 90% RH without condensation. Mount the module in a clean, dry enclosure with adequate ventilation. Verify that the DC input voltage matches the 283–339 VDC range. Connect the L-axis output to the corresponding motor, respecting polarity and wire gauge recommendations from the motor manufacturer. Always follow local electrical codes and use proper safety equipment.
Maintenance & Reliability
To maximize service life, inspect the module periodically for dust accumulation and ensure cooling airflow remains unobstructed. Check all electrical connections for tightness and signs of corrosion. The module's robust design supports continuous operation within its rated parameters. Regular inspection helps prevent unexpected downtime and extends the equipment's operational life.
Buying Guide & Selection Advice
When selecting the A06B-6117-H103, confirm that your system's DC bus voltage falls within the 283–339 VDC range and that the motor's rated current does not exceed 6.5 A on the L-axis. Verify compatibility with your controller and motor feedback devices. For current availability and lifecycle status, contact SpareTechPLC. Our team can help you verify stock and recommend suitable alternatives if needed.
Frequently Asked Questions
Q1: What is the rated output current of the A06B-6117-H103?
A: The rated output current is 6.5 A on the L-axis.
Q2: What input voltage does this servo amplifier require?
A: It requires an input voltage of 283–339 VDC.
Q3: Can this module operate in high-humidity environments?
A: Yes, it can operate at ambient humidity up to 90% RH as long as no condensation occurs.
Q4: What is the output frequency range?
A: The output frequency range is from 0.1 Hz to 800 Hz.
Q5: Is the A06B-6117-H103 still in production?
A: Please verify current lifecycle status and availability with SpareTechPLC before ordering.
