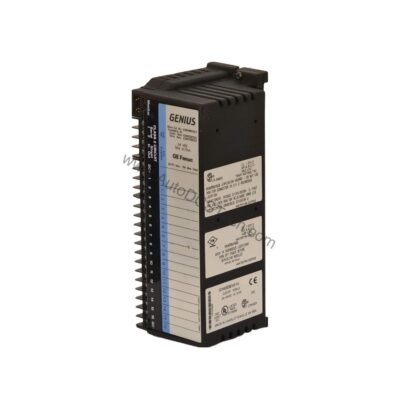

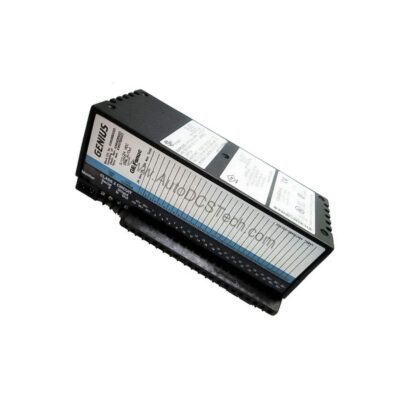

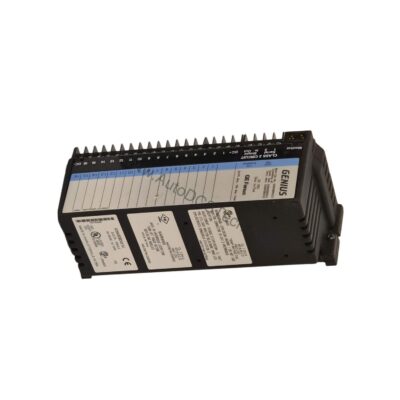

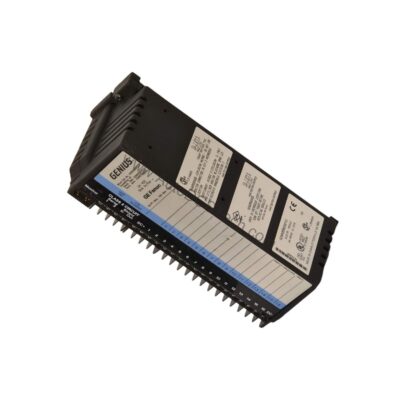

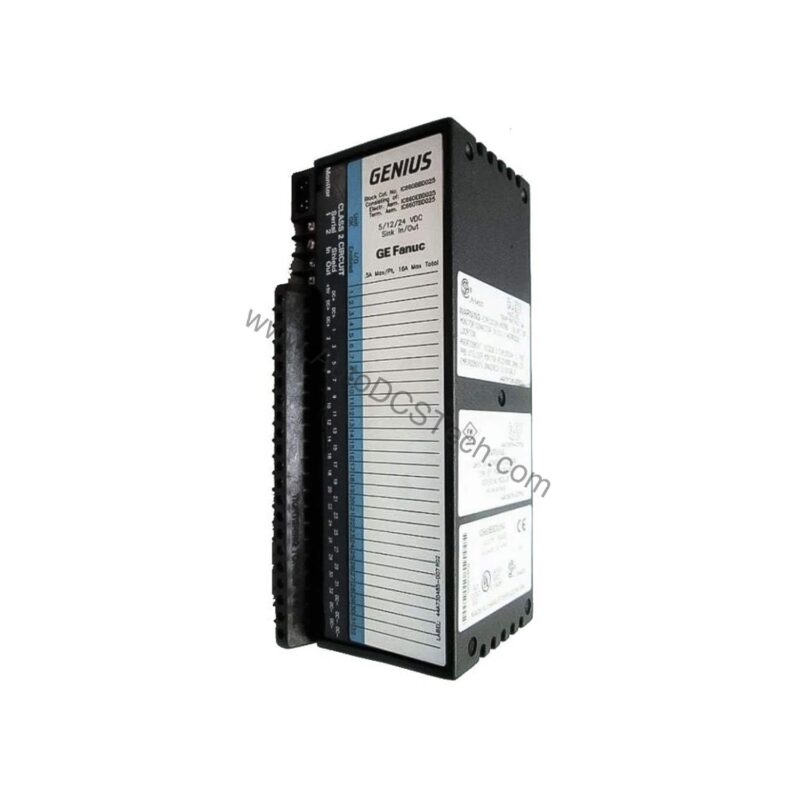

IC660TBA105: Genius I/O Terminal Assembly with 6 Current Source
The IC660TBA105 is the Genius I/O Terminal Assembly with 6 Current Source covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
This configuration's genius i/o terminal assembly with 6 current source is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. genius i/o terminal assembly with 6 current source sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660TBA105 |
| Series | Genius I-O |
| Part Number | IC660TBA105 |
| Block Type | Six current-source outputs |
| Rated Voltage | 115 Volts AC / 125 Volts DC |
| Power Supply Voltage | 93 to 132 Volts AC / 105 to 145 Volts DC |
| Maximum Current | 250 milliamps (AC) / 140 milliamps (DC) |
| Frequency/Ripple | 47 to 63 Hertz / 10% maximum ripple |
| Power Supply Dropout Time | 1 cycle (AC) / 10 milliseconds (DC) |
| Heat Dissipation (Maximum) | 12 Watts |
| Block to Block Isolation | 1500 Volts for 1 minute |
| Dimensions | 224 x 88 x 100 millimeters (8.8 x 3.5 x 3.9 inches) |
| Weight | 1.8 kilograms (4 pounds) |
| Operating Temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Storage Temperature | -40 to 100 degrees Celsius (-40 to 212 degrees Fahrenheit) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic660tba101-genius-i-o-terminal-assembly-for-rtd-blocks | confirm the configuration against your installation |
| ge-ic660tba103-genius-terminal-assembly-for-thermocouple-inputs | confirm the configuration against your installation |
| ge-fanuc-ic660tba104-genius-i-o-terminal-assembly-for-analog-modules | confirm the configuration against your installation |
| ge-fanuc-ic660tba106-genius-i-o-terminal-assembly-for-analog-input-circuits | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660TBA105 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
