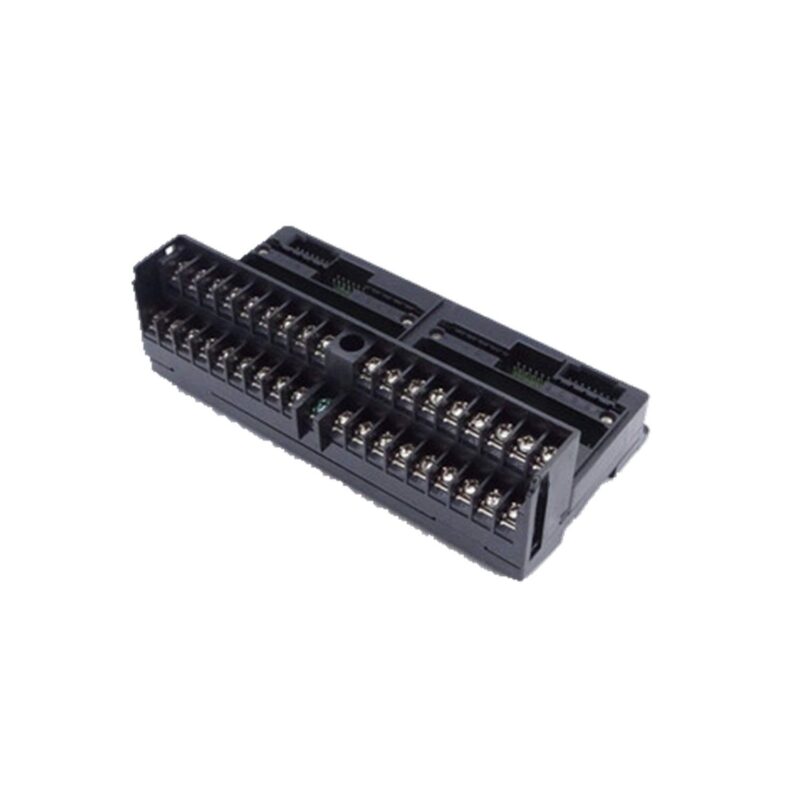

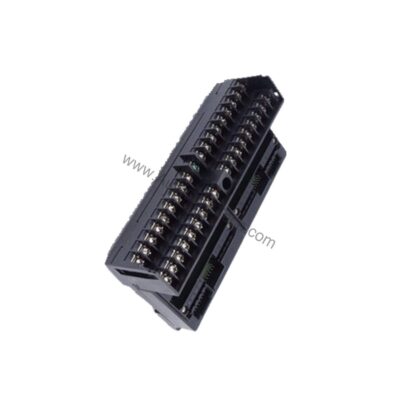

IC670CHS103: I/O base
The IC670CHS103 is the I/O base covered on this page. The attribute that decides whether it fits the existing installation without modification is 115 Volts AC, 125 Volts DC.
This configuration's i/o base is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. i/o base sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 115 Volts AC, 125 Volts DC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC670CHS103 |
| Series | Field Control |
| Part Number | IC670CHS103 |
| Type | I/O base |
| Style | Connector, hot insertion |
| Compatibility | Field control IC670 / IC670CH / IC670CHS |
| Nominal Rated Voltage | 115 Volts AC, 125 Volts DC |
| Voltage Range | 90 to 135 Volts AC / 105 to 150 Volts DC |
| Frequency | 47 to 63 Hertz |
| Power at 115 Volts AC | 48 Volt-Amps (maximum) at full load |
| Power at 125 Volts AC | 24 Watts (maximum) at full load |
| Inrush Current | 20 Amps (peak), 3 milliseconds (maximum) |
| Power Supply Output | 6.5 Volts DC |
| Holdup Time | 20 milliseconds (maximum) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic670chs101-field-control-i-o-terminal-block-barrier-style | confirm the configuration against your installation |
| ge-fanuc-ic670chs102-i-o-terminal-block-for-field-control-systems | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC670CHS103 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
