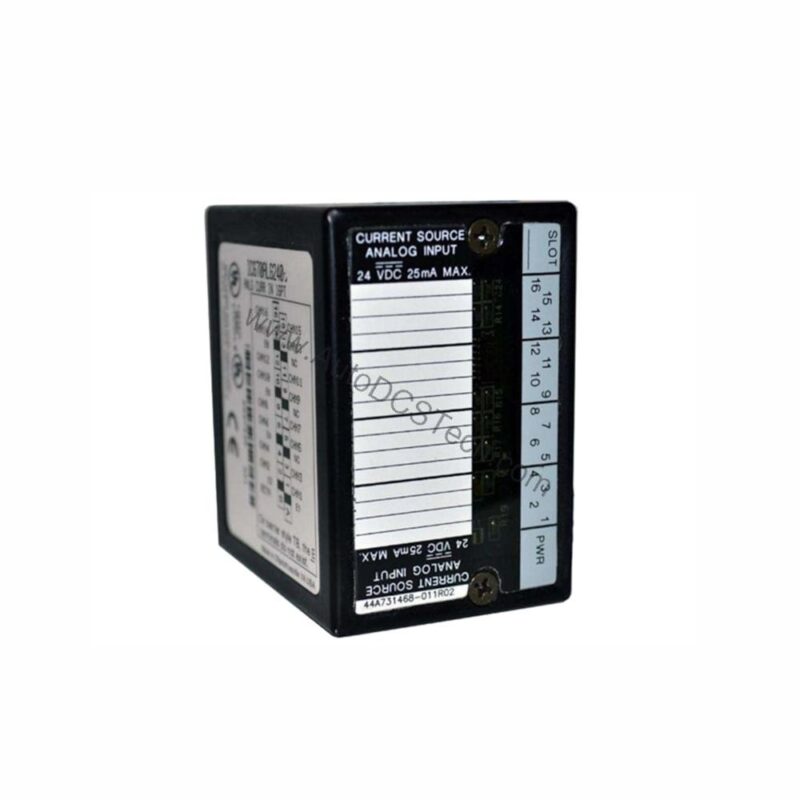

IC670GBI102: Genius Bus Interface Module for Field Control
The IC670GBI102 is the Genius Bus Interface Module for Field Control covered on this page. The attribute that decides whether it fits the existing installation without modification is 115 VAC, 125 VDC.
On this unit genius bus interface module for field control is the figure that decides fit and function. A communication or network module is judged by the protocol it carries and the bus it joins, not by its catalogue headline. genius bus interface module for field control sets which controllers and field devices it can bridge, and the isolation and termination it provides. Matching 115 VAC, 125 VDC against the existing network topology avoids a module that fits the rack but cannot talk to the rest of the system.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC670GBI102 |
| Series | Field Control |
| Part Number | IC670GBI102 |
| Nominal Rated Voltage | 115 VAC, 125 VDC |
| Supply Voltage Range | 90-135 VAC, 105-150 VDC |
| Frequency | 47-63 Hz |
| Power Consumption | 48 VA max (115 VAC), 24 W max (125 VDC) |
| Inrush Current | 20 A peak, 3 ms max |
| Holdup Time | 20 ms max |
| Power Supply Output | 6.5 VDC |
| Transmission Speed | 153.6 Kbaud std/ext, 76.8 Kbaud, 38.4 Kbaud |
| Protocols | Genius |
| I/O Modules Supported | Up to 8 |
| Mounting | DIN Rail/Panel |
| Lifecycle | Discontinued/Obsolete |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic670gbi002-field-control-bus-interface-unit-discontinued | confirm the configuration against your installation |
| ge-ic670gbi001-genius-bus-interface-unit-for-field-control | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC670GBI102 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
