Product Overview

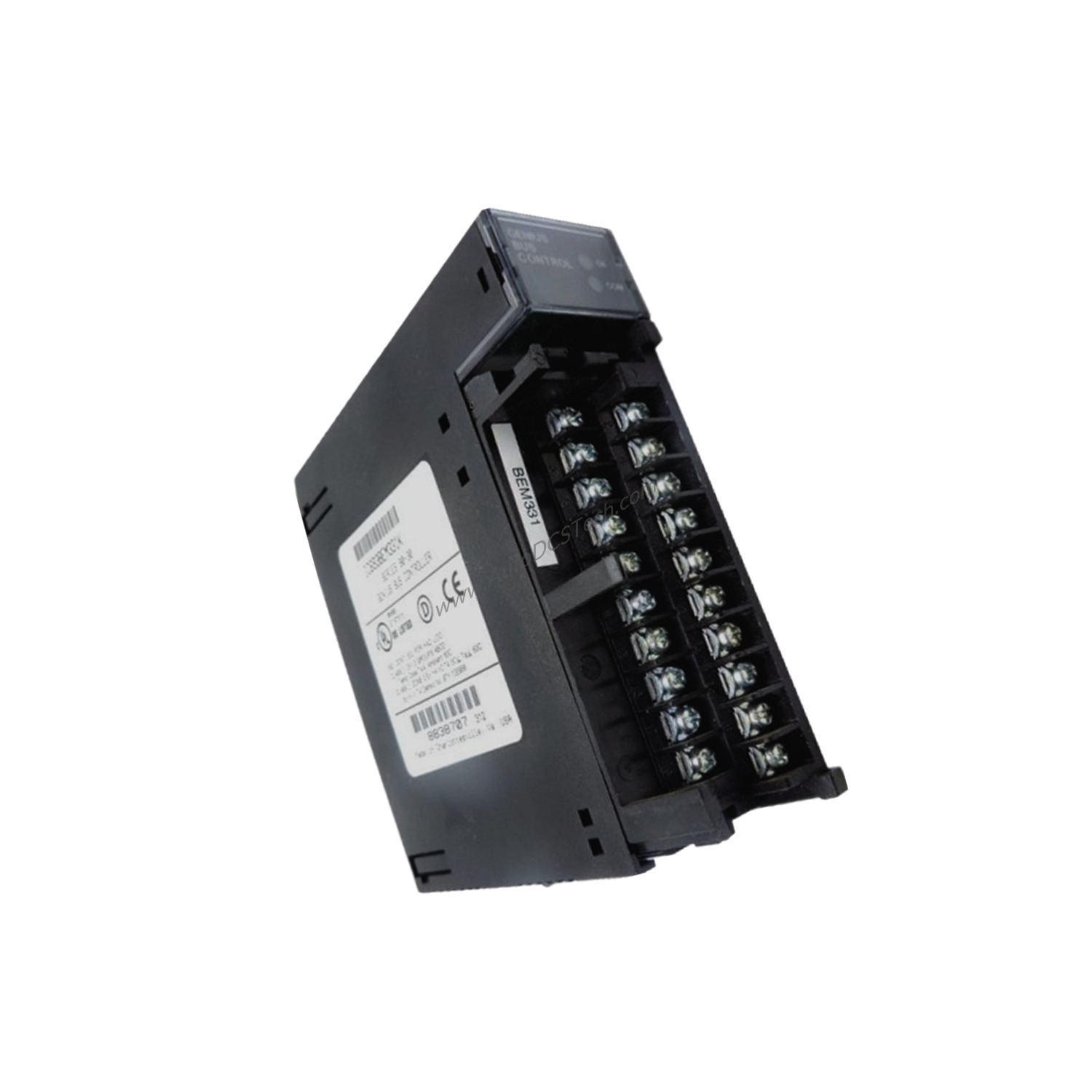

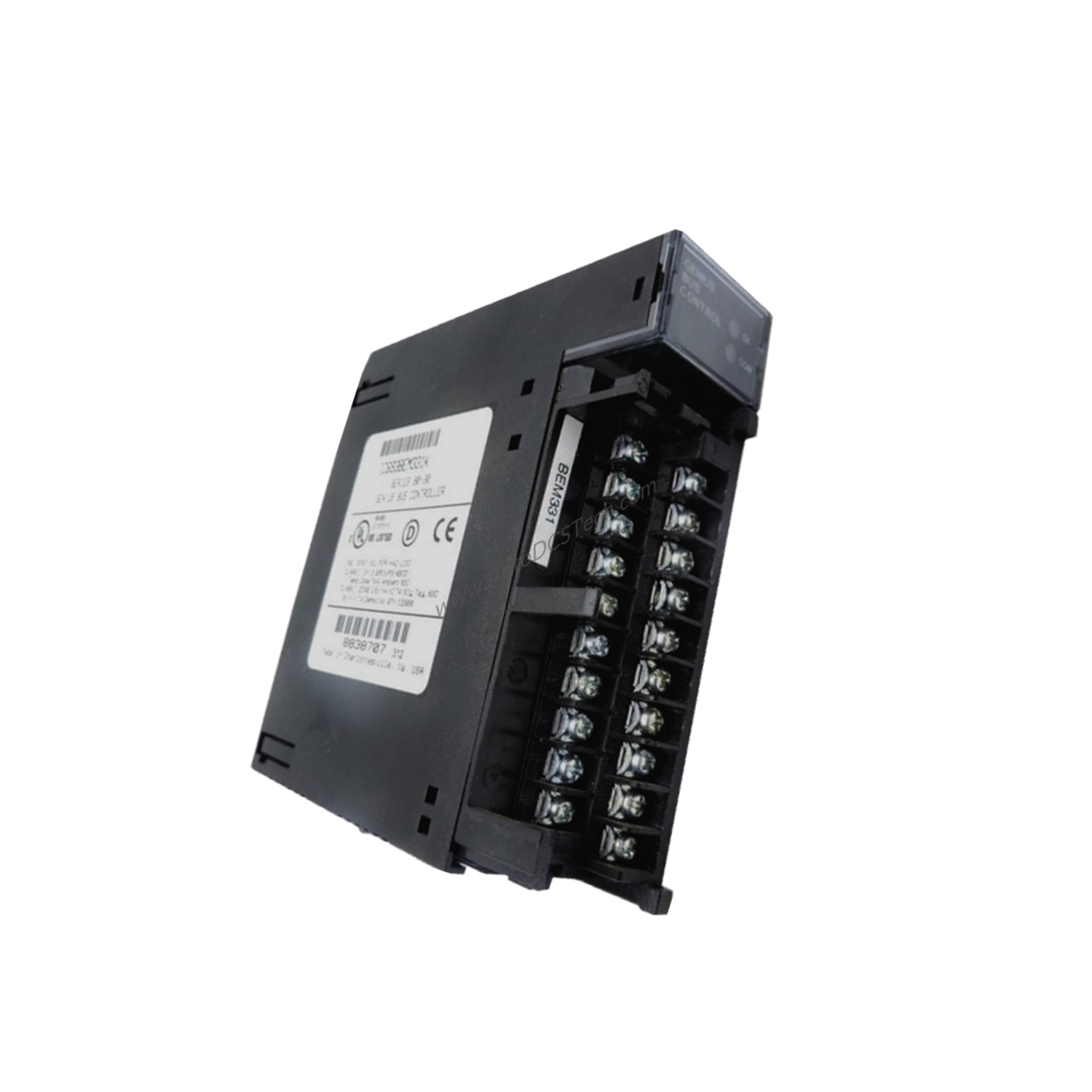

When integrating a GE Fanuc Series 90-30 PLC with an existing Genius I/O serial bus, the IC693BEM331 Genius Bus Interface provides a reliable and efficient solution. This module acts as a communication bridge, enabling the PLC to exchange data with up to 31 Genius field devices, including discrete and analog I/O blocks, remote I/O drops, and handheld monitors. Designed for industrial environments, it simplifies system expansion and reduces wiring complexity.
Technical Specifications Breakdown
The IC693BEM331 operates on a 5 V DC power supply drawn directly from the Series 90-30 backplane, with a current consumption of less than 300 mA at +5 V DC. It supports a maximum data rate of 128 bytes for both transmission and reception, ensuring efficient data exchange with field devices. The module features two front-panel LEDs: OK and COMM OK, which indicate power-up diagnostics and active communication status respectively. Its IP 20 rating makes it suitable for use within protective enclosures.
Industry Applications
In manufacturing plants, the IC693BEM331 enables centralized control of distributed I/O points. For example, a Series 90-30 PLC can monitor solenoid valves and motor starters across multiple production lines via a single Genius bus. In process industries, it interfaces with analog sensors like pressure transmitters and temperature sensors, providing real-time data for precise control loops. This reduces the need for extensive point-to-point wiring, lowering installation costs and improving system reliability.
Installation & Setup Guidance
Mount the IC693BEM331 inside a protective enclosure to shield it from moisture, humidity, and extreme temperatures. Insert the module into any available slot on the Series 90-30 backplane; it draws power automatically. Configure the bus controller using a GE Fanuc handheld monitor to set communication parameters and device addresses. Ensure the Series 90-30 CPU firmware is version 5.0 or later to support up to eight Genius Bus Controllers in a single system.
Maintenance & Reliability
Regularly inspect the front-panel LEDs to verify normal operation. The OK LED should remain steadily on after power-up diagnostics, while the COMM OK LED indicates active bus communication. If the COMM OK LED blinks, it signals intermittent bus connection or errors. Keep the enclosure clean and free of contaminants to maintain the IP 20 rating. Only qualified personnel should perform internal maintenance to avoid equipment damage or injury.
Compatibility & Integration
The IC693BEM331 is compatible with Series 90-30 CPU models IC693CPU311K, 321K, 331L or later, and any version of IC693CPU313, 323, 340, 341, 350, 351, 352, 360, 363, and 364. It also works with Series 6 controllers using the IC660CBB902F/903F bus interface unit. The module supports up to eight additional field control modules per remote I/O drop, enabling flexible system expansion.
Selection Guide & Purchasing Advice
Before purchasing, verify that your Series 90-30 CPU firmware is version 5.0 or later for full functionality. Confirm the number of Genius devices on your bus does not exceed 31. For replacement or new installations, the IC693BEM331 is available from SpareTechPLC, a trusted supplier of industrial automation parts. Contact their team to confirm current stock, lifecycle status, and any required accessories.
Frequently Asked Questions
What is the power requirement for the IC693BEM331?
The module requires 5 V DC from the Series 90-30 backplane and consumes less than 300 mA at +5 V DC.
How many devices can the IC693BEM331 communicate with?
It can communicate with up to 31 Genius devices on the same I/O bus.
What do the front-panel LEDs indicate?
The OK LED stays on after successful power-up diagnostics. The COMM OK LED is steadily on during active communication and blinks for intermittent bus errors.
Can I use the IC693BEM331 with older Series 6 controllers?
Yes, it is compatible with Series 6 controllers using the IC660CBB902F/903F bus interface unit.
What is the maximum data throughput of this module?
It can transmit and receive up to 128 bytes of data per cycle.
