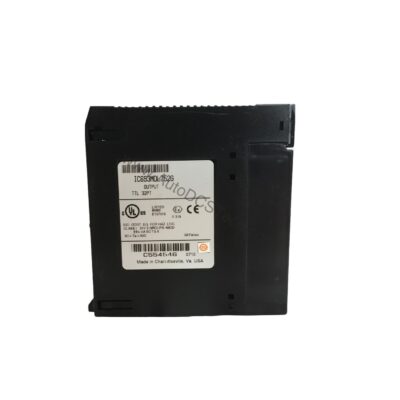

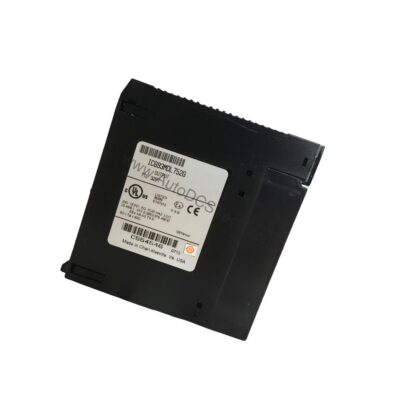

IC693MDL752: Discrete Output Module
The IC693MDL752 is the Discrete Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 32 channels.
The reason to specify this exact variant is discrete output module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. discrete output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 32 channels against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MDL752 |
| Series | Series 90-30 |
| Part Number | IC693MDL752 |
| Product Type | Discrete Output Module |
| Channels | 32 |
| Output Groups | 4 |
| Output Voltage Range (12/24 VDC Mode) | 10.2-28.8 VDC |
| Output Voltage Range (TTL Mode) | 4.75-5.25 VDC |
| Output Current per Point (TTL Mode) | 0.25 mA |
| Isolation | 1500 V (field to logic), 250 V (between groups) |
| Response Time | 0.5 ms |
| Lifecycle Status | Discontinued/Obsolete. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic693mdl753-series-90-30-discrete-output-module-32-point | confirm the configuration against your installation |
| ge-fanuc-ic693mdl750-series-90-30-digital-i-o-module-32-point | confirm the configuration against your installation |
| ge-fanuc-ic693mdl751-32-point-positive-logic-output-module-for-series-90-30 | confirm the configuration against your installation |
| ge-fanuc-ic693mdl754-series-90-30-digital-output-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693MDL752 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
