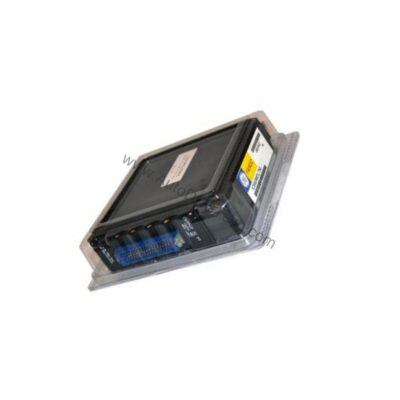

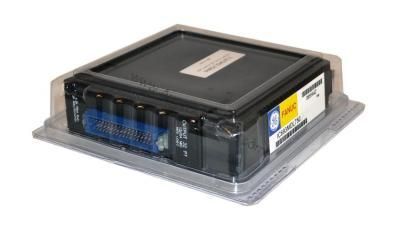

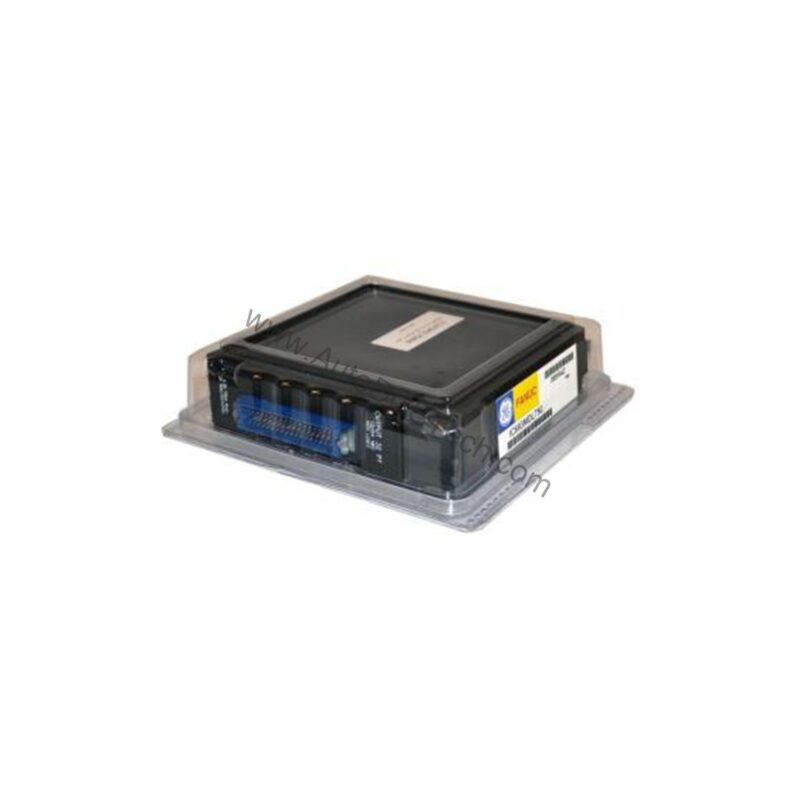

IC693MDL751: 32 Point Positive Logic Output Module for Series 90 30
The IC693MDL751 is the 32 Point Positive Logic Output Module for Series 90 30 covered on this page. The attribute that decides whether it fits the existing installation without modification is 12 to 24 Volts DC.
The reason to specify this exact variant is 32 point positive logic output module for series 90 30. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 32 point positive logic output module for series 90 30 sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 12 to 24 Volts DC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MDL751 |
| Output Points | 32 |
| Output Connector | 50-point Honda |
| Output Voltage Range | 12 to 24 Volts DC |
| Module Current Draw | 21 milliamps |
| Output Point Peak Output Current | 0.3 Amps |
| Common Peak Current Output | 2 Amps |
| Off-State Leakage | 0.1 milliamps |
| Output Voltage Drop | 0.24 Volts DC |
| Isolation | 1500 Volts |
| Product Lifecycle Status | Discontinued/Obsolete |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic693mdl753-series-90-30-discrete-output-module-32-point | confirm the configuration against your installation |
| ge-fanuc-ic693mdl750-series-90-30-digital-i-o-module-32-point | confirm the configuration against your installation |
| ge-fanuc-ic693mdl752-series-90-30-discrete-output-module-overview | confirm the configuration against your installation |
| ge-fanuc-ic693mdl754-series-90-30-digital-output-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693MDL751 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
