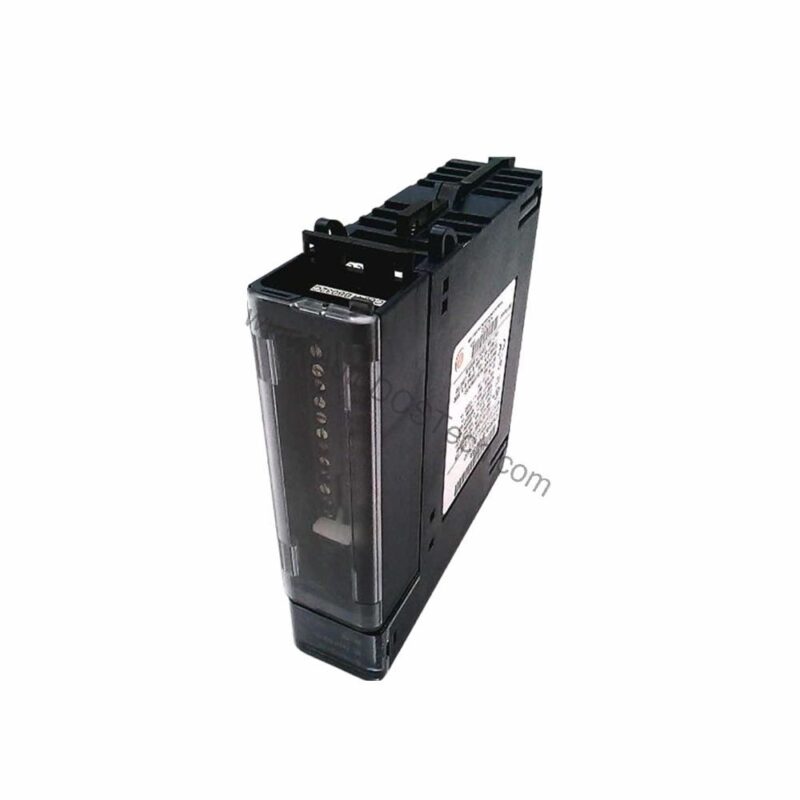

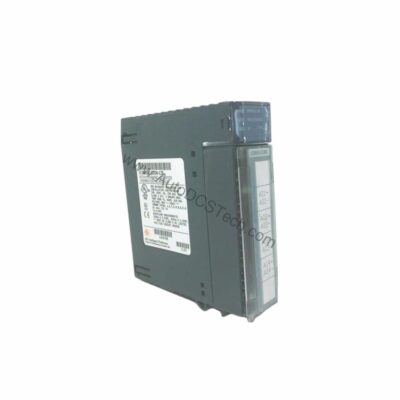

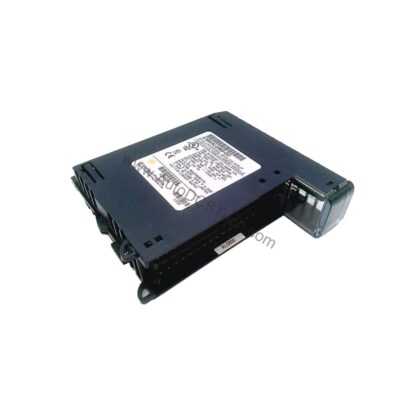

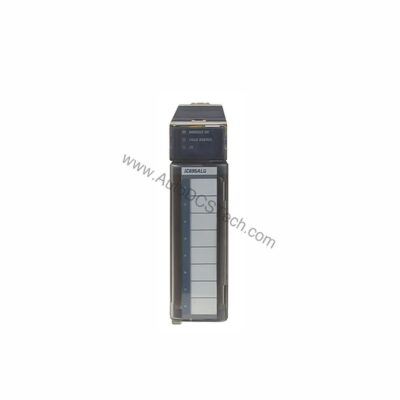

IC695ALG704: Analog Output Module for PACSystem RX3i
The IC695ALG704 is the Analog Output Module for PACSystem RX3i covered on this page. The attribute that decides whether it fits the existing installation without modification is 14.9 to 15.9 bits.
This configuration's analog output module for pacsystem rx3i is the attribute that drives the replacement decision. A processor or controller is selected on memory, scan time and platform compatibility before anything else. analog output module for pacsystem rx3i sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 14.9 to 15.9 bits against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695ALG704 |
| Number of Channels | 4 |
| Output Signals | +/-10 VDC, 0-10 VDC, 0-20 mA, 4-20 mA |
| Resolution | 14.9 to 15.9 bits |
| Output Load | 850 Ohms max |
| Update Rate | 8 ms |
| Power Consumption | 375 mA at +3.3V DC, 160 mA at +24V DC Isolated |
| Calibrated Accuracy | 0.15% at 25°C, 0.30% at 60°C |
| Output Data Format | IEEE 32-bit float or 16-bit integer |
| External Power | 19.2V to 30V DC. |
Datasheet & Downloads
Specification sheet for IC695ALG704. For lead time, condition and price, contact our team.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic695alg708-pacsystem-rx3i-analog-output-module-8-channels | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC695ALG704 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
