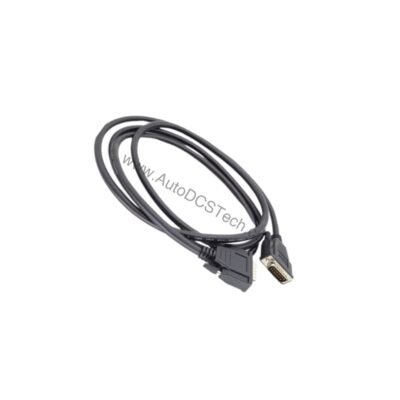

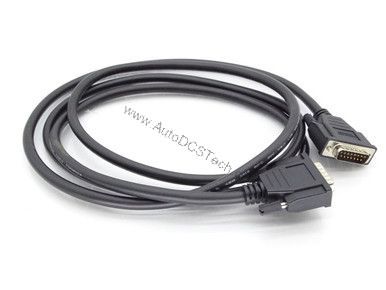

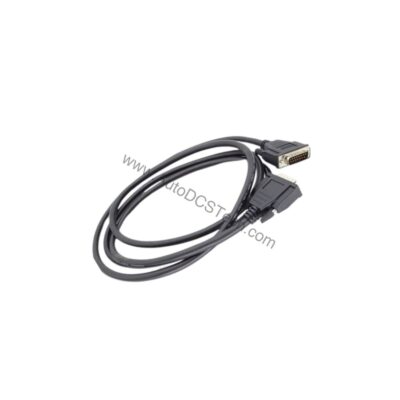

IC693CBL303: Cable
The IC693CBL303 is the Cable covered on this page. The attribute that decides whether it fits the existing installation without modification is #24 (.22 mm2).
The reason to specify this exact variant is cable. An extension or probe cable is specified by length, armor and connector rather than by any processing function. cable is what decides whether the run reaches the junction box and mates with the existing probe and monitor. Checking #24 (.22 mm2) against the original cable route avoids a cable that fits the connector but leaves the run short or mismatched.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693CBL303 |
| Series | Series 90-30 |
| Part Number | IC693CBL303 |
| Type | Cable |
| Purpose | HHP connection |
| Connector Type | Canon DA15S with solder pot |
| Connector 1st End | 15-pin male, D-Subminiature on both ends |
| Connector 2nd End | 15-pin male, D-Subminiature on both ends |
| Hood | AMP 207470-1 connector shell |
| Hardware Kit | AMP 207871-1 Kit includes 2 metric screws and 2 screw clips |
| Cable Type | Belden 9508 |
| AWG | #24 (.22 mm2) |
| Cable Length | 6 feet (2 meters) |
| Product Lifecycle Status | Discontinued/Obsolete |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693cbl300-bus-expansion-cable-1-meter-wye-adapter | confirm the configuration against your installation |
| ge-ic693cbl301-i-o-bus-expansion-cable-for-series-90-30-plc | confirm the configuration against your installation |
| ge-fanuc-ic693cbl302-i-o-expansion-cable-15m-for-series-90-30 | confirm the configuration against your installation |
| ge-fanuc-ic693cbl304-port-expansion-wye-cable-for-series-90-30 | confirm the configuration against your installation |
| ge-ic693cbl305-wye-cable-for-series-90-30-cmm-pcm-modules | confirm the configuration against your installation |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | IC693CBL303 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
