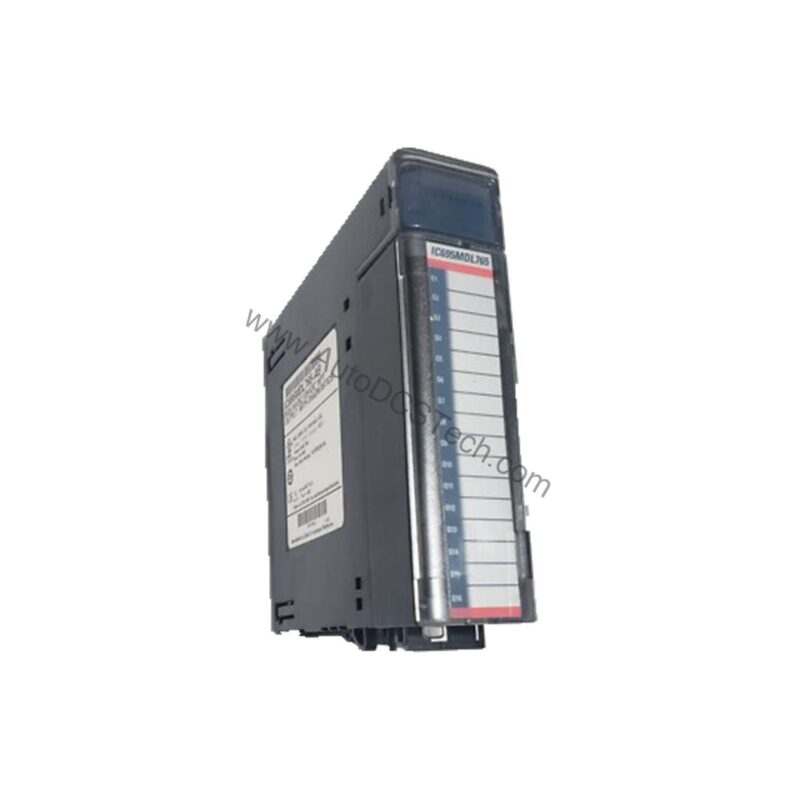

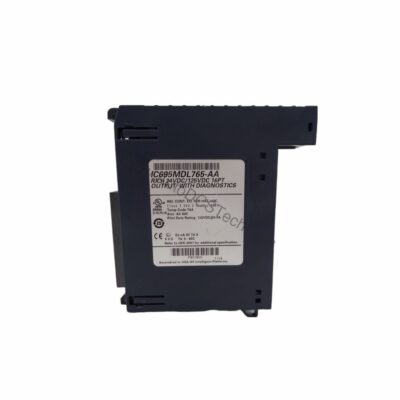

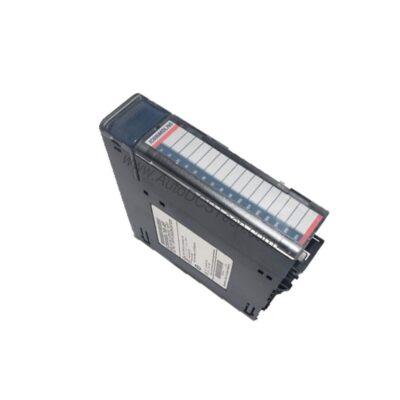

IC695MDL765: Smart Digital Output Module
The IC695MDL765 is the Smart Digital Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 24/125 VDC.
What separates this variant from its siblings is smart digital output module. A processor or controller is selected on memory, scan time and platform compatibility before anything else. smart digital output module sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 24/125 VDC against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695MDL765 |
| Product Type | Smart Digital Output Module |
| Number of Channels | 16 |
| Groups | 2 isolated |
| Rated Voltage | 24/125 VDC |
| Output Voltage Range | 18-30 VDC / 105-132 VDC |
| Output Current per Point | 2 A |
| per Group | 8 A |
| per Module | 16 A |
| Response Time | 1 ms |
| Current Draw | 540 mA at 5.1 VDC, 152 mA at 3.3 VDC |
| Protection | Over temperature, Failed Switch Detection, Overload Detection, Shutdown, No-load Detection |
| Isolation | 250 V AC/1500 V AC |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic695mdl664-rx3i-positive-logic-input-module-16-points-24-vdc | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC695MDL765 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
