GE IC200CPU002 Versamax CPU Module | 42KB Memory, RS-232/485

Technical Specifications Breakdown

Key parameters for the IC200CPU002 are listed below for quick reference:

Industry Applications

Manufacturing Line Control

In automotive assembly lines, this CPU module manages sequential logic for conveyor systems, part presence detection, and robotic cell coordination. The 2048 digital I/O capacity handles numerous sensors and actuators simultaneously, while the RS-485 port enables communication with remote I/O racks over long distances.

Process Automation in Water Treatment

For water and wastewater treatment plants, the controller executes ladder logic for pump sequencing, valve control, and level monitoring. The real-time clock with 0.01% accuracy ensures precise time-stamping of events, critical for regulatory compliance. The non-volatile flash memory retains programs during power outages, enhancing system reliability.

Packaging Machinery Integration

In high-speed packaging lines, the module coordinates multiple stations such as filling, sealing, and labeling. The RS-232 port allows connection to operator interfaces or barcode scanners. The Run/Stop switch provides a simple method for maintenance personnel to halt operations safely.

Installation & Setup Guidance

Mount the IC200CPU002 on a properly grounded DIN rail in either vertical or horizontal orientation. Ensure the DIN rail is grounded to protect against electromagnetic interference (EMC). Connect the 5 Volts power supply to the designated terminals. Use the RS-232 or RS-485 serial ports for programming and communication with other devices. Configure the communication protocol as SNP slave, RTU slave, or Serial I/O as needed. Insert the battery to maintain the real-time clock; verify the battery is fresh to achieve the full 5-year lifespan. After mounting, use the Run/Stop switch behind the module door to start the CPU and begin data processing.

Maintenance & Reliability

Periodically inspect the LED indicators on the front panel to confirm normal operation. Replace the battery every 5 years or when the low-battery indicator activates. Keep the module free from dust and moisture to prevent corrosion. The non-volatile flash memory retains programs without power, but regular backups are recommended. Ensure the DIN rail grounding remains intact to maintain EMC protection.

The GE IC200CPU002 Versamax CPU Module: Reliable Control for Your PLC System

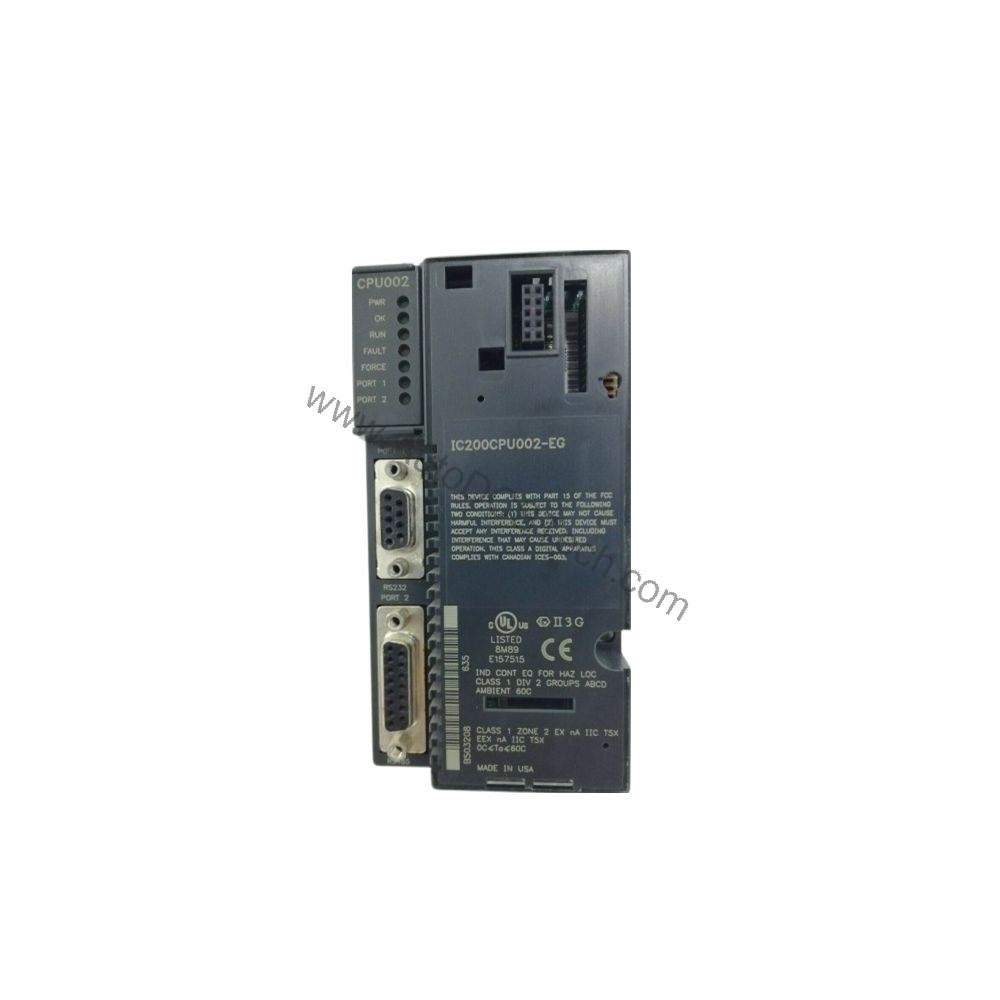

The IC200CPU002 is a CPU module from the GE Versamax series, designed to serve as the central processing unit in programmable logic controller (PLC) systems. Manufactured by GE Fanuc, this module provides robust control capabilities for a wide range of industrial automation tasks. It supports up to 2048 digital inputs and 2048 digital outputs, making it suitable for medium to large-scale applications. The module is equipped with 42 KB of user-configurable memory and uses non-volatile flash memory to store programs and instructions. Programming can be done using ladder diagram or instruction list languages, offering flexibility for engineers. A built-in battery powers the real-time clock, with a lifespan of 5 years under normal usage. The front panel includes LED indicators for activity status, and a Run/Stop switch located behind the module door allows operators to start or stop the CPU and control data write processes.

Compatibility & Integration

It supports built-in communication protocols including SNP slave, RTU slave, and Serial I/O, enabling connectivity with HMIs, drives, and SCADA systems. The RS-485 port allows multi-drop networks for distributed control architectures. The module also supports floating point and real data functions, facilitating complex calculations.

Selection Guide & Purchasing Advice

When selecting a CPU for your PLC system, consider the I/O count and memory requirements. The IC200CPU002 offers 2048 digital I/O and 42 KB memory, suitable for mid-range applications. For larger systems, evaluate higher-memory CPUs. At AutoDCSTech, we stock this module and can advise on compatibility with your existing Versamax components. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
