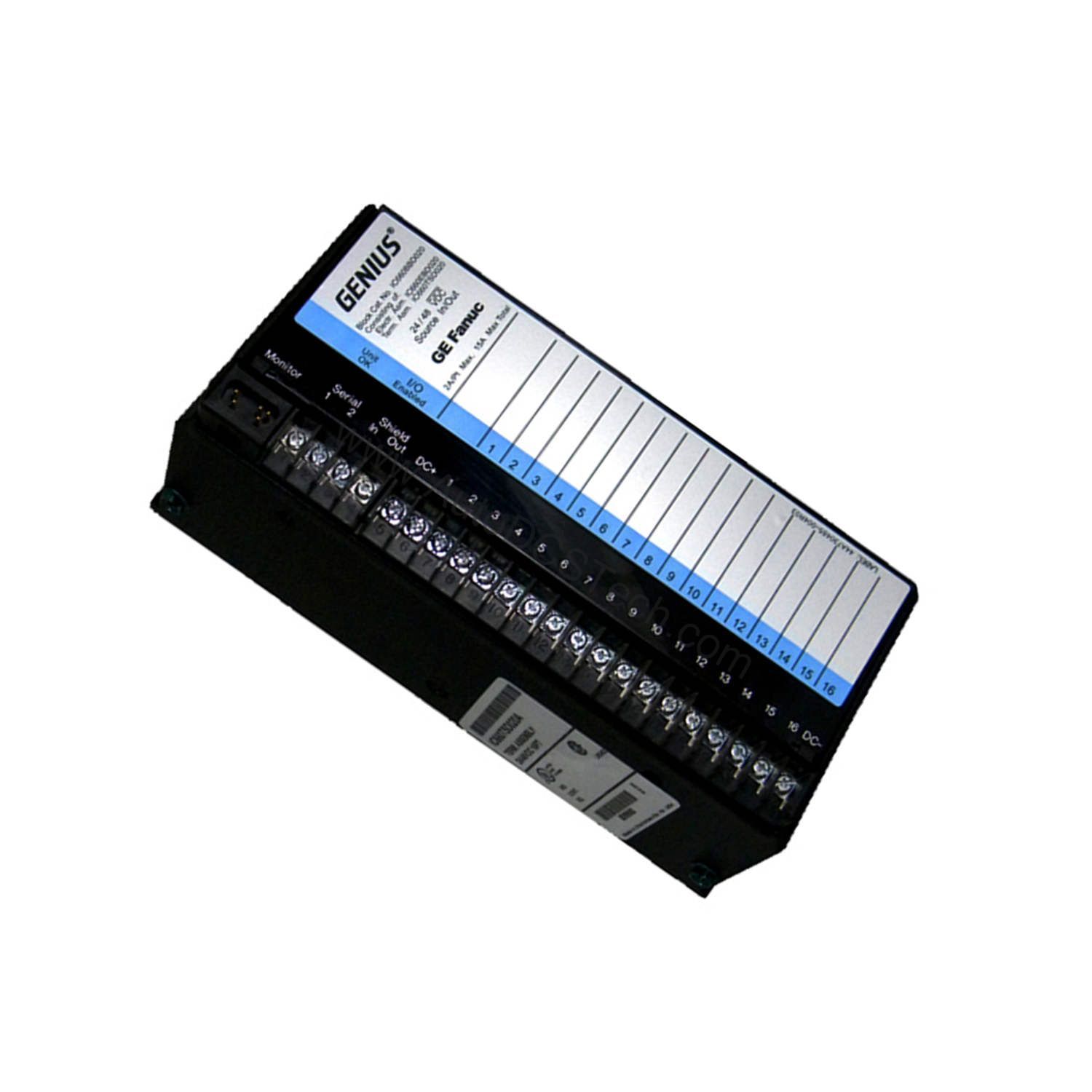

GE IC660BRD021 24/48VDC Sink Block for Genius I/O Systems

Technical Specifications Breakdown

Key parameters for the IC660BRD021 are listed below for quick reference:

Application Scenarios for the Sink Block

The IC660BRD021 is well-suited for discrete monitoring and control in manufacturing lines. For example, it can interface with proximity sensors on a conveyor system, using its 5.6 kiloohm input impedance at 24 or 48 VDC to detect part presence. Its 16 circuits allow grouping multiple sensors into a single block, reducing wiring complexity. The module also supports diagnostics like open wire detection, which helps identify sensor failures before they cause downtime.

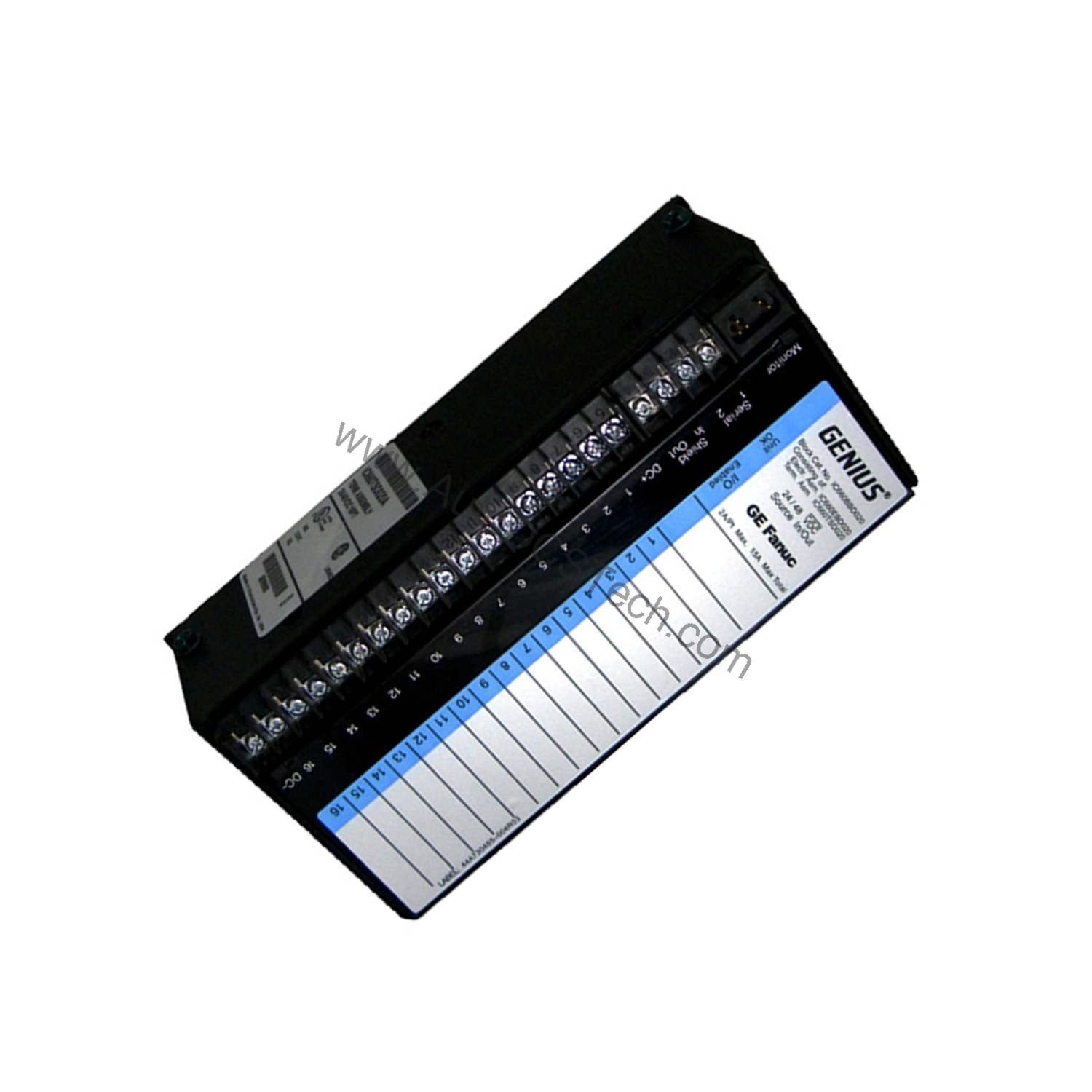

Installation and Setup Guidance

This module is open equipment and must be installed inside a protective enclosure. The mounting area should be free of airborne contaminants. Control power is derived from the I/O devices wired to the terminals, so no separate power block is required. When wiring, ensure the input voltage thresholds are respected: at 24 VDC, the input turns on between 0 and 8 VDC and turns off between 17 and 24 VDC; at 48 VDC, it turns on between 0 and 16 VDC and turns off between 34 and 48 VDC. The processing time is 1.7 milliseconds plus the selectable filter delay.

Maintenance and Reliability

To ensure long-term reliability, periodically inspect the enclosure for dust and moisture. The operating temperature range of 0 to 60 degrees Celsius and storage range of -40 to 100 degrees Celsius provide a wide margin for most industrial environments. The vibration rating of 5 to 10 Hertz or 10 to 200 Hertz should be considered during mounting. Regular checks of wiring connections and sensor health can prevent intermittent faults.

The GE IC660BRD021: A Reliable 24/48VDC Sink Block for Genius I-O

In industrial automation, ensuring consistent signal integrity from sensors is critical. The GE Fanuc IC660BRD021 I/O block addresses this need as a 24/48 Volts DC rated sink block, part of the Genius I-O series. It provides 16 circuits that can be configured as inputs, outputs, or tristate inputs, offering flexibility for various field devices. Whether used with solid-state or electromechanical sensors, this module helps maintain uptime by integrating diagnostic capabilities.

Compatibility and Integration

The IC660BRD021 is compatible with any hand-held monitor for the Genius I-O system. It supports multiple input diagnostics, including open wire, overtemperature, and failed switch diagnostics. Each of the 16 circuits can be individually configured as an output, input, or tristate input, allowing flexible adaptation to different control strategies.

Selection Guide and Purchasing Advice

When selecting a sink block for your Genius I-O network, the IC660BRD021 offers a robust solution for 24 or 48 VDC applications. Contact AutoDCSTech for current pricing and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
