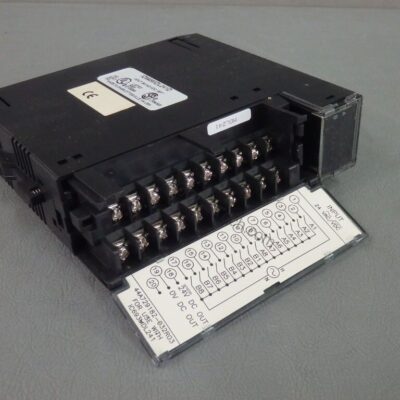

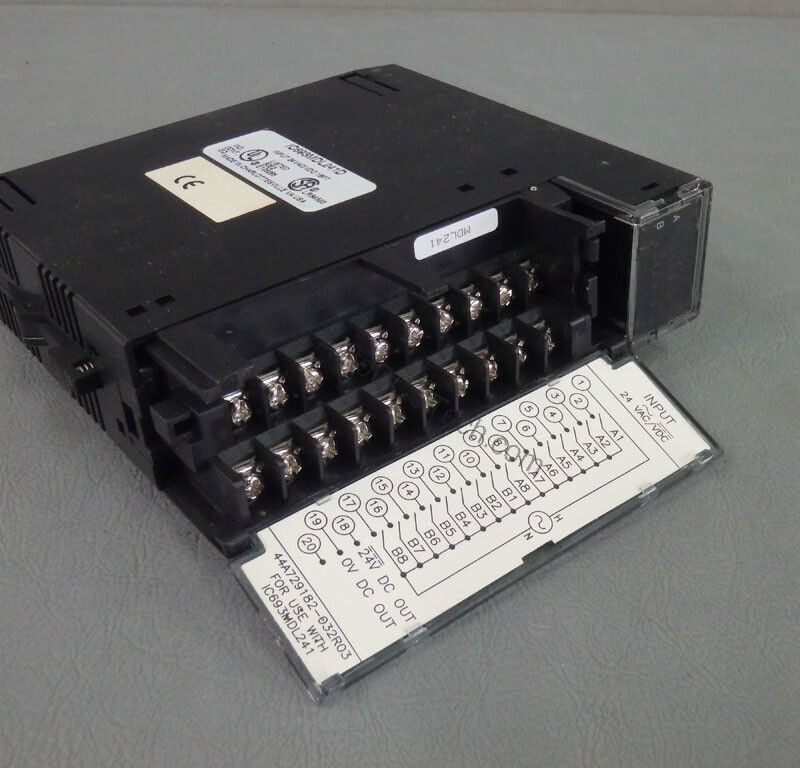

IC693MDL241: Input Module
The IC693MDL241 is the Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 to +30 volts DC or 0 to +30 volts AC, 50/60 Hz.
What separates this variant from its siblings is input module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0 to +30 volts DC or 0 to +30 volts AC, 50/60 Hz against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MDL241 |
| Series | Series 90-30 |
| Part Number | IC693MDL241 |
| Product Type | Input Module |
| Number of Channels | Sixteen (16) |
| Input Voltage Range | 0 to +30 volts DC or 0 to +30 volts AC, 50/60 Hz |
| Nominal Input Voltage | 24 VAC / VDC |
| Input Current at Rated Voltage | 7 mA |
| On-state Voltage | 11.5 to 30 volts AC or DC |
| Off-state Voltage | 0 to +4 volts AC or DC |
| On-state Current | 1 mA maximum |
| Off state current | 1 mA |
| On response time, maximum | 12 ms |
| Off response time, maximum | 28 ms |
| Current draw | 80 mA @ 5 VDC when all inputs on |
| Wiring configuration | Positive / Negative logic |
| LED Indicators | 16 |
| Logic reading | %I |
| Product Lifecycle Status | Discontinued/Obsolete. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic693mdl240-series-90-30-16-point-120-vac-discrete-input-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693MDL241 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
