Introduction to the 330930-060-10-00

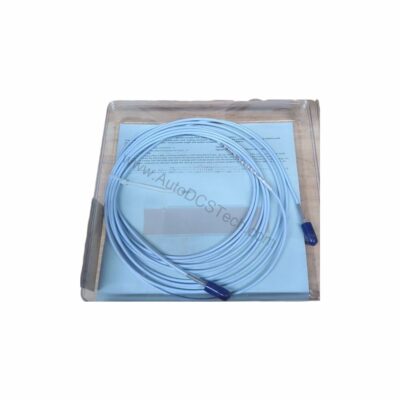

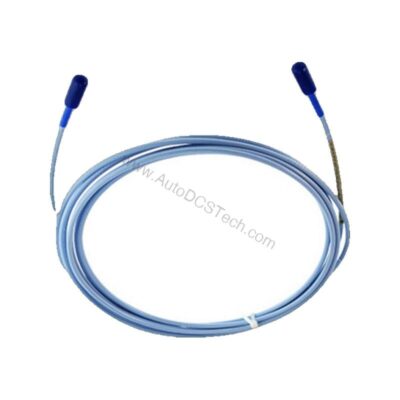

When reliable vibration monitoring is critical, the 330930-060-10-00 from Bently Nevada delivers. This 3300 NSv extension cable connects your probe to the Proximitor Sensor, ensuring accurate signal transmission. With a 6.0-meter length, it fits many industrial installations. This cable is built for demanding environments, featuring FluidLoc technology with stainless steel armor.
As part of the 3300 NSv series, the 330930-060-10-00 maintains signal integrity over its length. The 75 Ω coaxial design and FEP insulation provide stable performance. This extension cable is a critical link in your machinery protection system.
Key Features and Technical Specifications
The 330930-060-10-00 is engineered for precision and durability. Below are the core specifications from the manufacturer:
- Cable Length: 6.0 meters (19.7 feet)

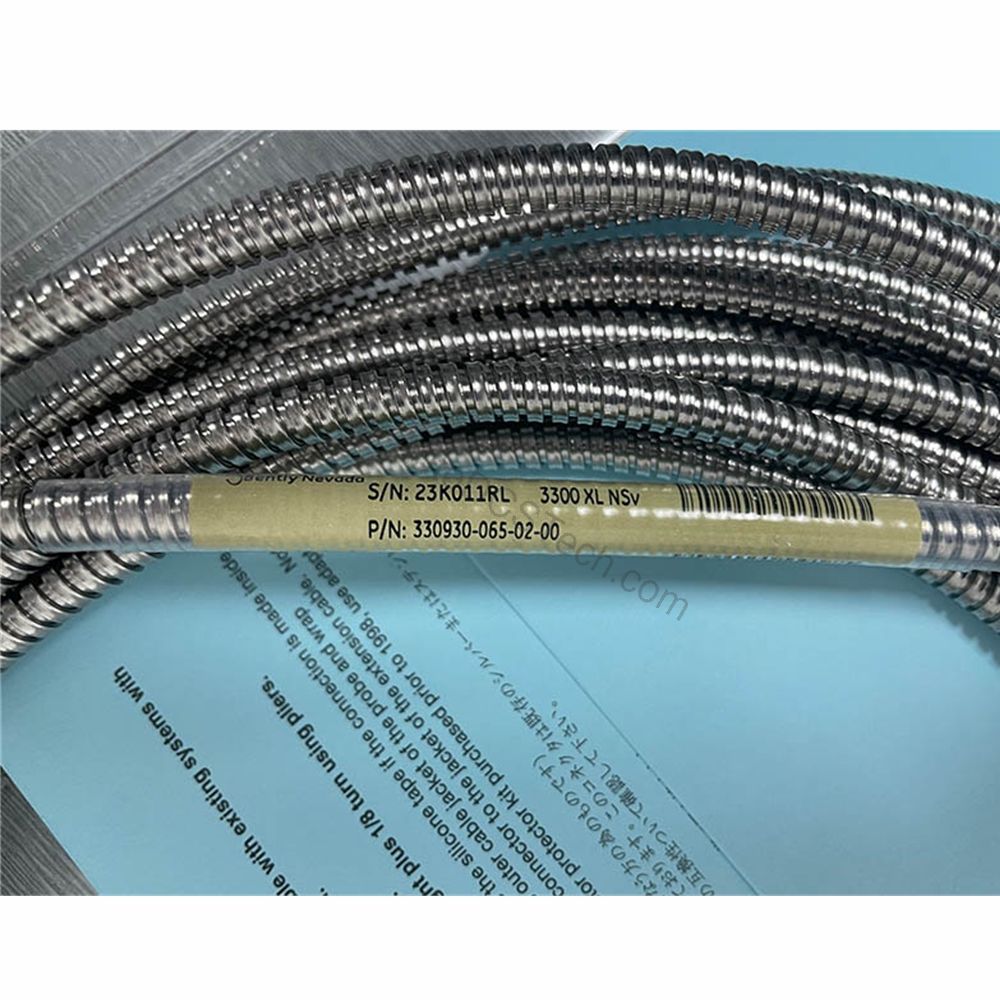

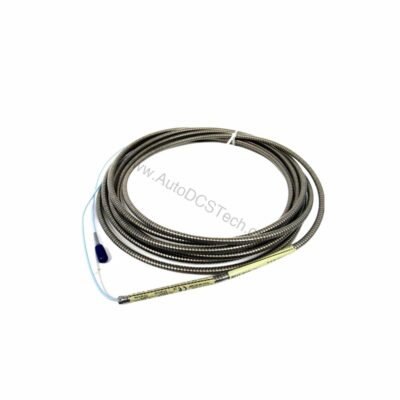

- Connector Option: FluidLoc cable with stainless steel armor, FEP jacket, and connector protector
- Extension Cable Material: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated
- Operating and Storage Temperature: -51°C to +177°C (-60°F to +351°F)
- Shipping Weight: 1.5 kg
- Center Conductor DC Resistance: 0.220 Ω/m (0.067 Ω/ft)
- Shield DC Resistance: 0.066 Ω/m (0.020 Ω/ft)
- Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- Connector Material: Gold-plated brass
These specs ensure low signal loss and reliable operation. The gold-plated connectors resist corrosion, maintaining a secure connection. The stainless steel armor protects against mechanical damage.
Why Choose the 330930-060-10-00?
This extension cable offers several advantages for industrial applications. The FluidLoc design provides a secure, locked connection. The armor adds protection in harsh environments. The FEP jacket resists chemicals and high temperatures.
Compared to standard cables, the 330930-060-10-00 delivers consistent performance. Its 75 Ω impedance matches Bently Nevada sensors. This ensures accurate vibration data for predictive maintenance.
Installation and Setup Guide
Proper installation is essential for optimal performance. When installing the 330930-060-10-00, follow these guidelines:
- Ensure the extension cable length plus the probe length equals the Proximitor Sensor total length.
- Route the cable away from high-heat sources and moving parts.
- Use the provided connector protector to safeguard the connection.
- Secure the cable with appropriate clamps, avoiding sharp bends.
Field wiring should use a three-conductor shielded triad cable. The maximum length between the Proximitor Sensor and the monitor is 305 meters (1,000 feet). This ensures signal integrity.
Maintenance and Reliability
Regular inspection of the 330930-060-10-00 ensures long-term reliability. Check the cable for cuts, abrasions, or kinks. Verify that the connectors are tight and free of corrosion. The stainless steel armor provides excellent protection, but periodic checks are recommended.
Operating temperature range is wide, from -51°C to +177°C. This makes the cable suitable for extreme conditions. The FEP insulation maintains flexibility and performance over time.
Compatibility and Integration
The 330930-060-10-00 is designed for use with Bently Nevada 3300 NSv Proximitor Sensors. It is compatible with standard 3300 series monitoring systems. Ensure your system uses the correct probe and extension cable combination.
For new installations, verify the total system length (probe + extension) is 5 or 7 meters. This matches the Proximitor Sensor specifications. The cable's 75 Ω impedance ensures proper signal transmission.
Product Support and Availability
The 330930-060-10-00 is available from AutoDCSTech. We stock genuine Bently Nevada parts. Contact us for current availability and lead times. Our team can assist with technical questions.
Availability & Condition at AutoDCSTech
| Part Number | 330930-060-10-00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
