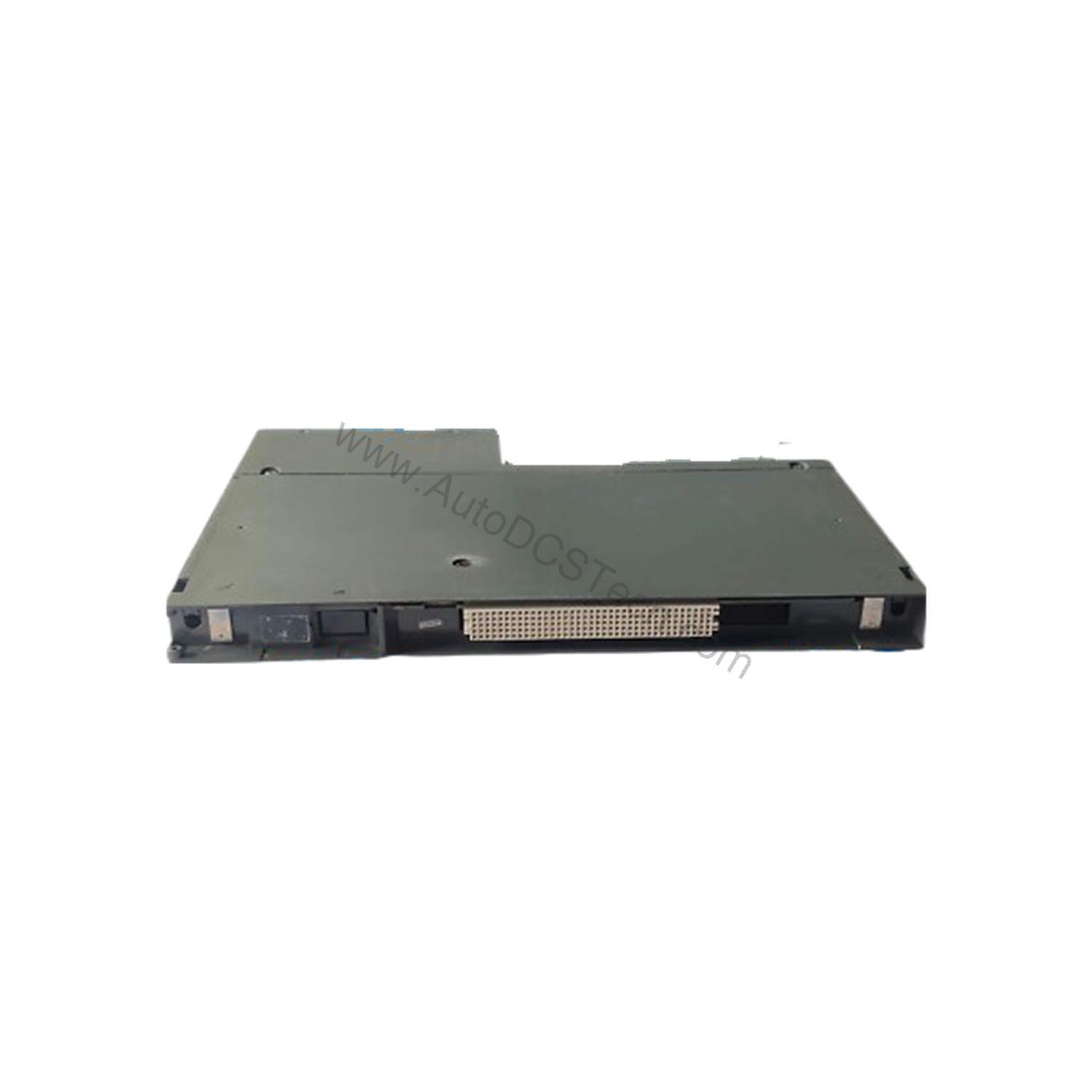

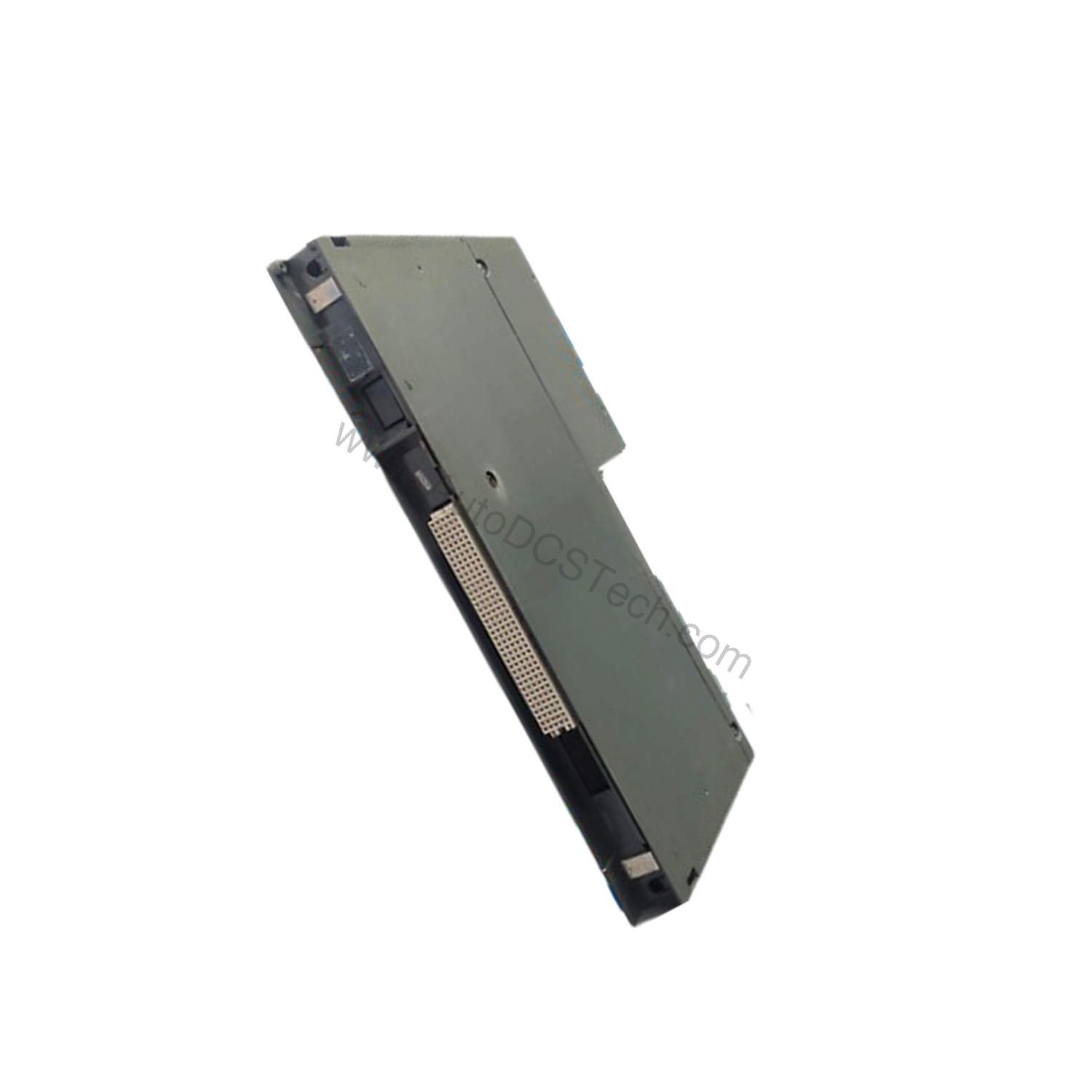

6ES7463-2AA00-0AA0 IM463-2 Transmitter Interface Module

Introduction to the Siemens 6ES7463-2AA00-0AA0

When your SIMATIC S7-400 system must reach remote I/O points, the 6ES7463-2AA00-0AA0 transmitter interface module provides a reliable bridge. This IM463-2 module is engineered for distributed connection to SIMATIC S5 expansion modules via IM314, extending your control network up to 600 meters. As a result, you can place I/O closer to the process, reducing wiring costs and improving signal integrity.

Part of the Siemens SIMATIC S7-400 family, the 6ES7463-2AA00-0AA0 is a compact yet powerful interface solution. It draws a maximum of 1,320 mA from the 5 V DC backplane bus, ensuring stable operation even in dense configurations. With its slim 25 mm width, it fits neatly into existing racks without wasting valuable space.

Key Features and Technical Specifications

The 6ES7463-2AA00-0AA0 stands out for its ability to link S7-400 and S5 systems . Below are the core specifications extracted from official data:

• Input current from backplane bus: 5 V DC, max. 1,320 mA
• Maximum cable length between first and last interface module: 600 m
• Dimensions (W x H x D): 25 mm x 290 mm x 217 mm
• Weight: approx. 360 g

These parameters ensure that the module operates efficiently within the S7-400 environment. The 600 m cable length capability is particularly valuable for large plants where distributed I/O is essential. Additionally, the low power consumption helps maintain a stable backplane bus, reducing the risk of voltage drops.

Applications and Use Cases

In industrial automation, the 6ES7463-2AA00-0AA0 is often deployed in legacy system upgrades. For instance, a facility with an existing SIMATIC S5 installation can integrate S7-400 controllers without replacing all field wiring. This approach minimizes downtime and capital expenditure.

Transitioning from S5 to S7 becomes smoother with this interface, as it preserves the investment in S5 expansion modules. Consequently, engineers can modernize their control architecture while retaining proven field devices.

Installation and Setup

Installing the 6ES7463-2AA00-0AA0 is straightforward. First, ensure the S7-400 rack has an available slot and that the backplane bus can supply the required 5 V DC current. Then, insert the module into the slot and secure it with the locking mechanism. After mounting, connect the IM314 interface modules to the 6ES7463-2AA00-0AA0 using appropriate cabling, keeping the total cable length within the 600 m limit.

For optimal performance, route cables away from high-voltage lines and sources of electromagnetic interference. Additionally, verify that all connections are tight and that the module is properly grounded. Following these steps helps ensure reliable communication and minimizes the risk of signal errors.

Maintenance and Reliability

Routine maintenance for the 6ES7463-2AA00-0AA0 is minimal due to its solid-state design. However, periodic inspection is recommended to confirm that all connectors remain secure and that the module shows no signs of physical damage. Since the module has no moving parts, its primary wear points are the connectors and the backplane contacts.

Environmental factors such as temperature and humidity can affect performance. Therefore, keep the module within the specified operating conditions as outlined in the official Siemens documentation. By doing so, you can expect a long service life and consistent operation.

Compatibility and Integration

The 6ES7463-2AA00-0AA0 is specifically designed for use with SIMATIC S7-400 PLCs. It communicates with SIMATIC S5 expansion modules via IM314 interfaces, enabling a hybrid system that leverages both platforms. This compatibility is crucial for plants that are gradually migrating from S5 to S7.

Furthermore, the module supports a maximum cable length of 600 m between interface modules, which allows flexible placement of remote I/O racks. This feature is particularly beneficial in large facilities where centralizing all I/O is impractical.

Troubleshooting and Common Issues

One common issue with interface modules is communication failure due to excessive cable length or poor connections. To avoid this, always measure the total cable length and ensure it does not exceed 600 m. Additionally, check that all IM314 modules are properly addressed and that the backplane bus provides adequate current.

If the module fails to communicate, verify that the 5 V DC supply is stable and within the specified current limit. Also, inspect the connectors for corrosion or damage. In most cases, reseating the module or replacing a faulty cable resolves the issue.

Product Support and Availability

The Siemens 6ES7463-2AA00-0AA0 is available through AutoDCSTech, a trusted supplier of industrial automation parts. Contact AutoDCSTech to check current stock and lead times. Their team can assist with technical questions and ensure you receive the right module for your application.
