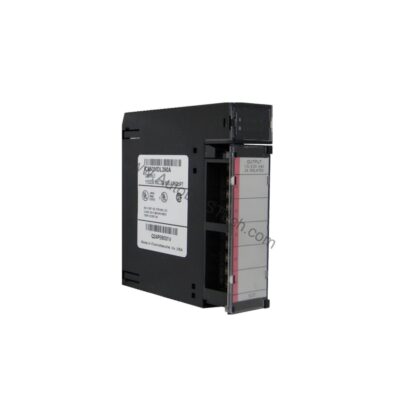

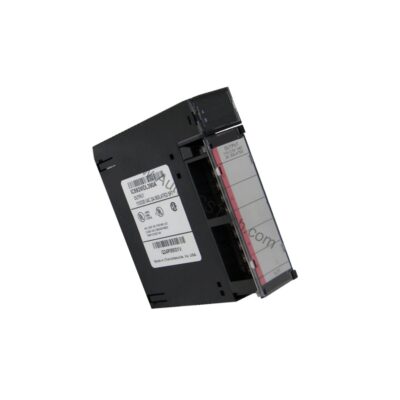

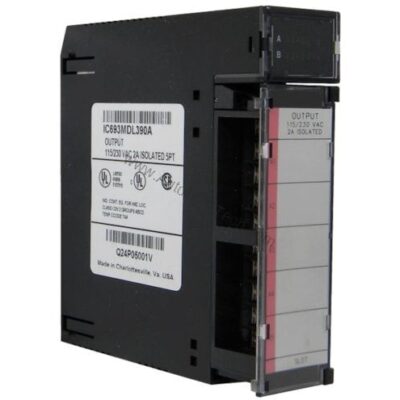

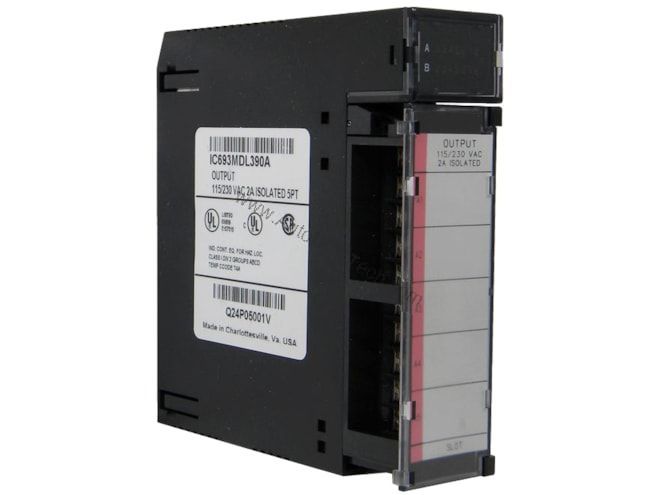

IC693MDL390: Output Module
The IC693MDL390 is the Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 85-264 VAC.
This configuration's output module is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 85-264 VAC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MDL390 |
| Series | Series 90-30 |
| Part Number | IC693MDL390 |
| Product Type | Output Module |
| Output Voltage Range | 85-264 VAC |
| Nominal Output Voltage | 120/240 VAC |
| Output Current per Point | 2A |
| Output Current per Module | 5A @ 45°C |
| Isolation | 1500 VAC field/logic |
| Current Draw | 110 mA |
| On Response Time | 1 ms |
| Off Response Time | ½ Cycle |
| Max Inrush Current | 25A for 1 cycle |
| Min Load Current | 100 mA |
| Output Leakage | 3 mA at 120VAC |
| Max Output Voltage Drop | 1.5V |
| Product Lifecycle Status | Discontinued/Obsolete. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693mdl310-series-90-30-output-module-120v-ac-12-points | confirm the configuration against your installation |
| ge-fanuc-ic693mdl330-series-90-30-output-module-8-point-ac | confirm the configuration against your installation |
| ge-fanuc-ic693mdl340-series-90-30-discrete-output-module | confirm the configuration against your installation |
| ge-ic693mdl350-series-90-30-16-point-isolated-output-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693MDL390 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
