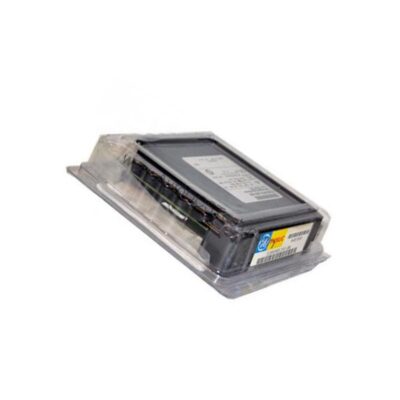

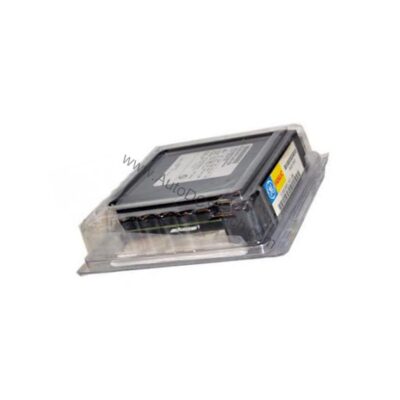

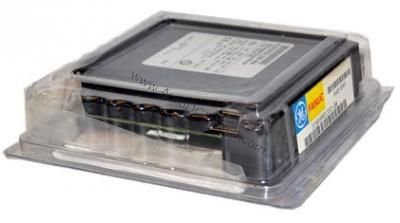

IC693MDL350: Output Module
The IC693MDL350 is the Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 16 outputs.
This configuration's output module is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 16 outputs against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MDL350 |
| Part Number | IC693MDL350 |
| Series | Series 90-30 |
| Product Type | Output Module |
| Voltage Rating | 120 to 240 V AC |
| Output Voltage Range | 74 to 265 V AC |
| Frequency | 50 to 60 Hz |
| Nominal Output Voltage | 120 to 240 V AC |
| Outputs | 16 |
| Field to Backplane Isolation | 250 V AC continuous |
| Group to Group Isolation | 250 V AC continuous |
| Max. Inrush Current per Cycle | 20 Amps |
| Minimum Load Current per Point | 10 mA |
This part belongs to a discontinued platform (GE Series 90-30), superseded by PACSystems RX3i (IC695 series). We stock remaining new and refurbished units.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693mdl310-series-90-30-output-module-120v-ac-12-points | confirm the configuration against your installation |
| ge-fanuc-ic693mdl330-series-90-30-output-module-8-point-ac | confirm the configuration against your installation |
| ge-fanuc-ic693mdl340-series-90-30-discrete-output-module | confirm the configuration against your installation |
| ge-ic693mdl390-series-90-30-discrete-output-module-overview | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693MDL350 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
