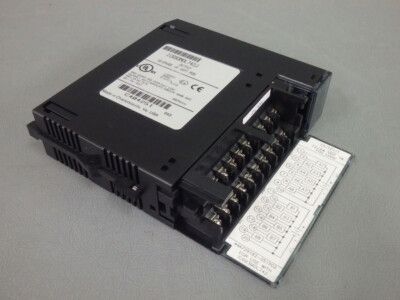

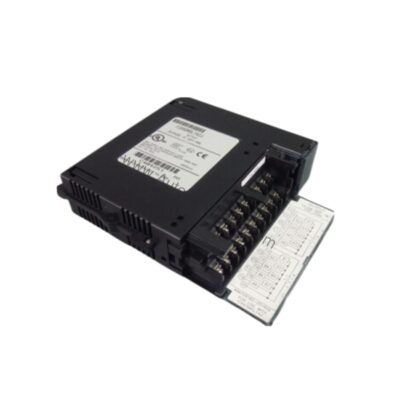

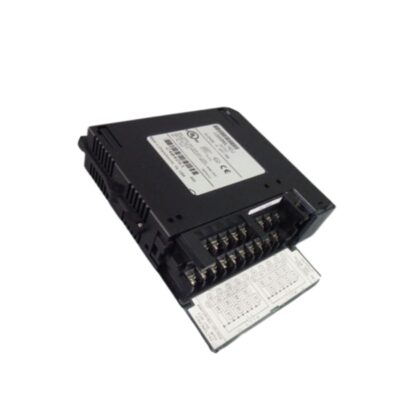

IC693MDL742: Discrete Output Module with ESCP
The IC693MDL742 is the Discrete Output Module with ESCP covered on this page. The attribute that decides whether it fits the existing installation without modification is 12/24 VDC.
What separates this variant from its siblings is discrete output module with escp. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. discrete output module with escp sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 12/24 VDC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MDL742 |
| Series | Series 90-30 |
| Part Number | IC693MDL742 |
| Product Type | Discrete Output Module with ESCP |
| Channels | 16 |
| Voltage | 12/24 VDC |
| Current per Point | 1.0 A |
| Current per Group at 50°C | 4.0 A |
| Current per Group at 60°C | 3.0 A |
| Response Time | 2 ms |
| Isolation | 1500V/500V |
| Humidity | 5-95% |
| Lifecycle | Discontinued/Obsolete. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693mdl740-series-90-30-positive-logic-output-module | confirm the configuration against your installation |
| ge-ic693mdl741-series-90-30-discrete-output-module | confirm the configuration against your installation |
| ge-fanuc-ic693mdl748-digital-output-module-for-series-90-30-plcs | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693MDL742 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
