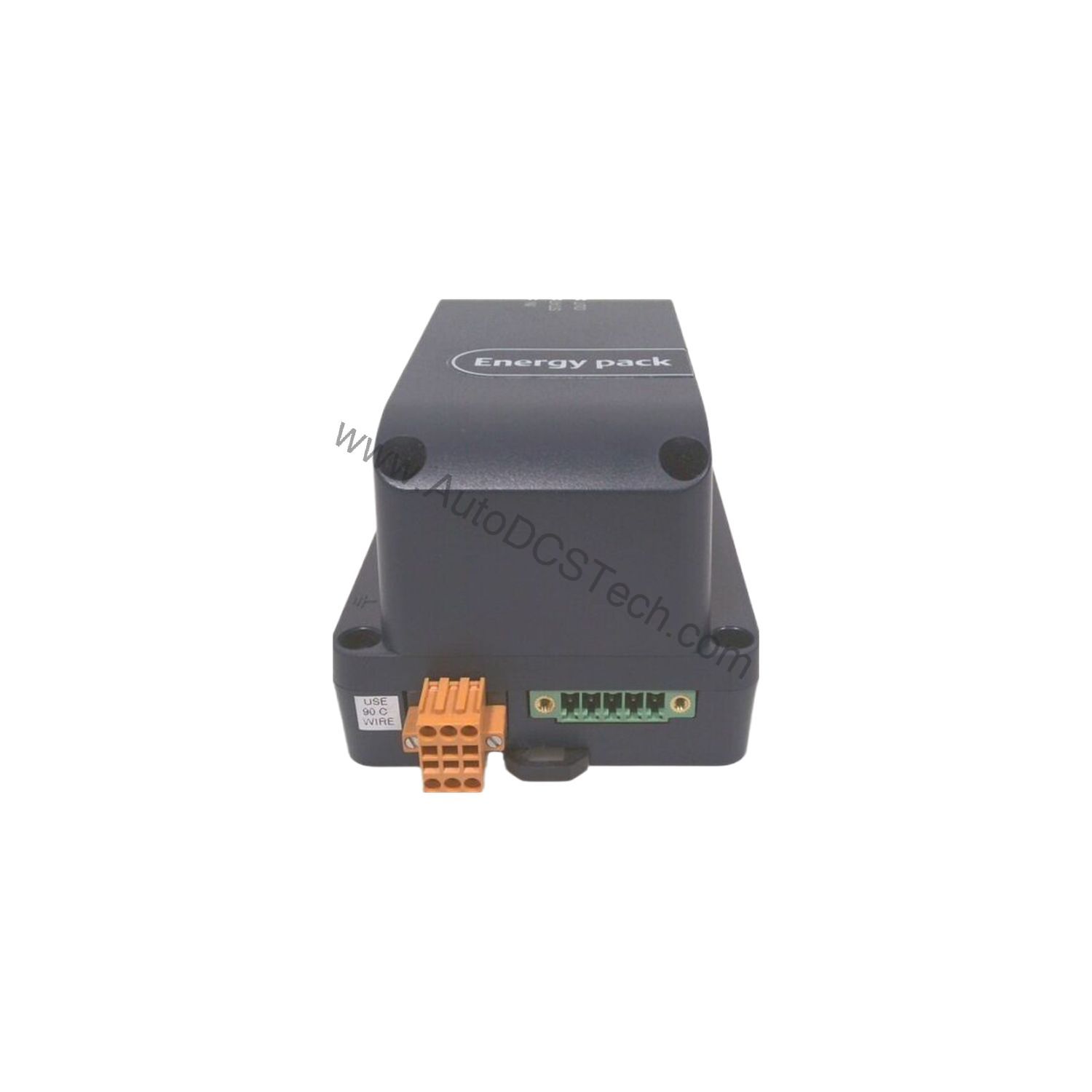

GE IC695ACC402 CPU Energy Pack for PACSystem RX3i CPE330

Technical Specifications Breakdown

Key parameters for the IC695ACC402 are listed below for quick reference:

Industry Applications

In automotive assembly lines, it prevents loss of weld parameters during brownouts. In water treatment facilities, it ensures alarm logs are saved before shutdown. The module’s 5-year capacitor life reduces maintenance cycles in continuous operations.

Installation & Setup Guidance

Mount the IC695ACC402 on a DIN rail or panel using the included base and ground strap. Connect it to the CPE330 controller using the dedicated IC695CBL002 cable (36 inches). Ensure power to the CPE330 is off before securing connections with the captive screws. The energy pack charges from the PLC backplane; status LEDs (IN, STAT, OUT) indicate charging, fault, low capacitance, and fully charged states.

Maintenance & Reliability

The capacitor pack has a life expectancy of 5 years. Monitor the STAT LED for low capacitance warnings. Operate within -25 to 60°C to maximize service life. The replacement cap pack module is IC695ACC412. Periodically inspect connections and the cable for wear.

Ensuring Data Integrity During Power Loss

Consider a critical manufacturing process where a sudden power outage could wipe out real-time production data, leading to costly downtime and rework. The GE IC695ACC402 CPU Energy Pack addresses this challenge directly. Designed for the PACSystem RX3i, this module partners exclusively with the CPE330 controller to preserve memory content when main power fails. By providing sufficient energy for the CPU to transfer data from RAM to non-volatile storage, it safeguards your operational continuity.

Compatibility & Integration

This energy pack is designed exclusively for the PACSystem RX3i CPE330 CPU. It communicates status information to the controller, enabling orderly shutdown sequences. Firmware updates are delivered from the CPU; during updates, all LEDs light green.

Selection Guide & Purchasing Advice

When ordering, verify that your system uses a CPE330 controller. The IC695ACC402 ships with the base, ground strap, and cable. For lifecycle support, contact AutoDCSTech to confirm current availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
