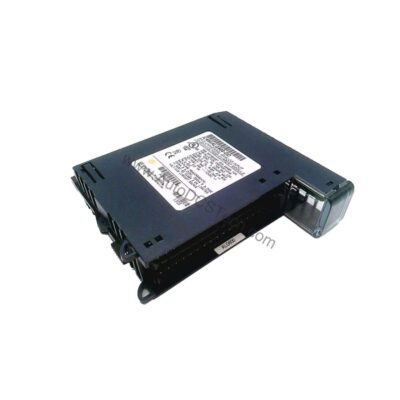

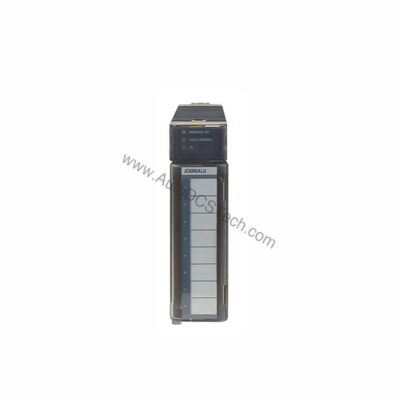

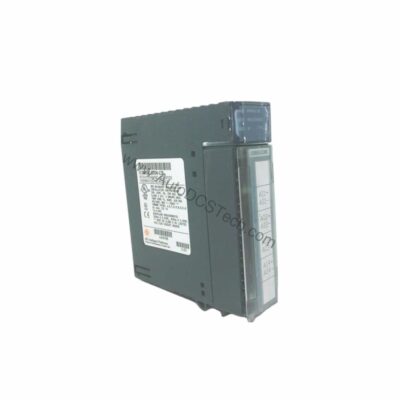

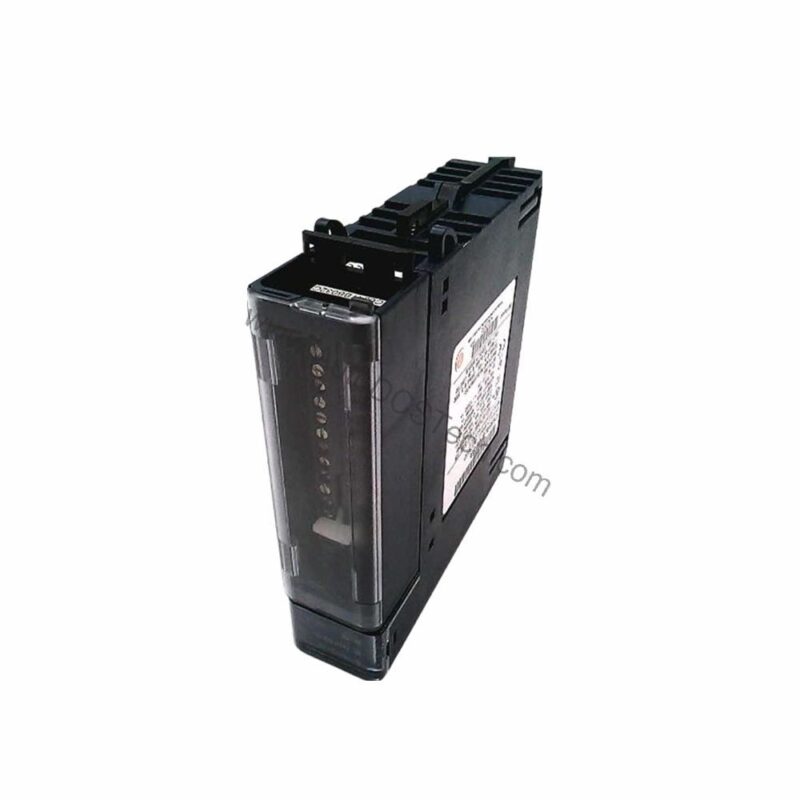

IC695ALG728: PACSystem RX3i Analog Output Module with HART
The IC695ALG728 is the PACSystem RX3i Analog Output Module with HART covered on this page. The attribute that decides whether it fits the existing installation without modification is 7.25 W..
This configuration's pacsystem rx3i analog output module with hart is the attribute that drives the replacement decision. A processor or controller is selected on memory, scan time and platform compatibility before anything else. pacsystem rx3i analog output module with hart sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 7.25 W. against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695ALG728 |
| Series | PACSystem RX3i |
| Part Number | IC695ALG728 |
| Output Channels | 8 non-isolated |
| Voltage Range | 0 to +10 V, -10 to +10 V |
| Current Range | 0-20 mA, 4-20 mA |
| Resolution | 14.9 bits (voltage), 15.9 bits (0-20 mA), 15.6 bits (4-20 mA) |
| HART Protocol | v5.0 |
| Backplane Power | 380 mA at 3.3 V |
| External Power | 19.2-30 VDC |
| Accuracy | 0.15% at 25°C, 0.30% at 60°C |
| Power Dissipation | 7.25 W. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic695alg704-analog-output-module-for-pacsystem-rx3i | confirm the configuration against your installation |
| ge-ic695alg708-pacsystem-rx3i-analog-output-module-8-channels | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC695ALG728 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
