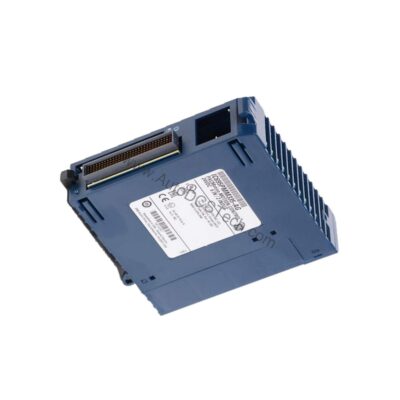

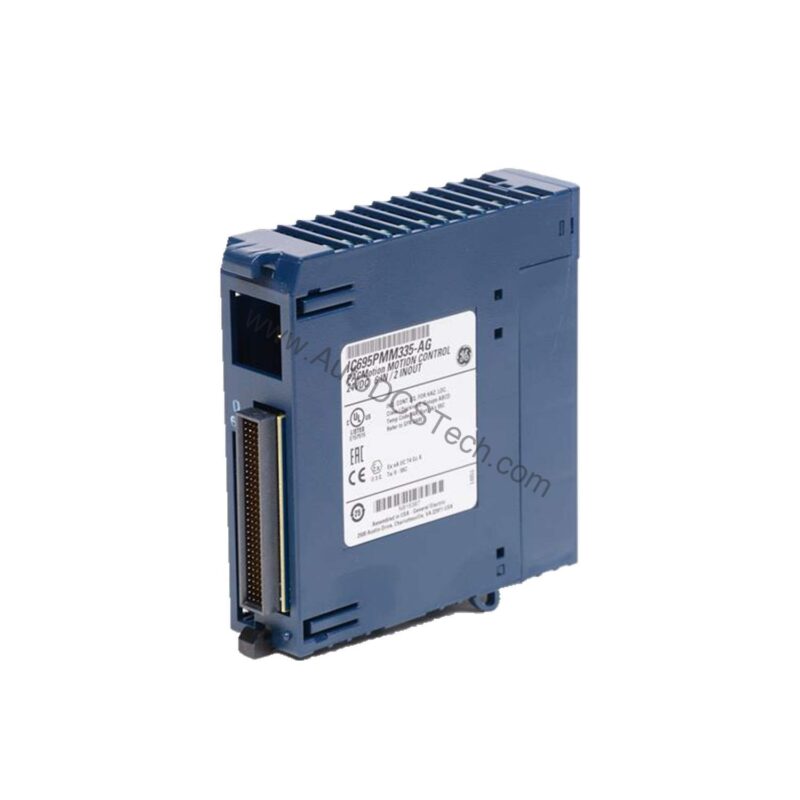

IC695PMM335: Multi-Axis Motion Controller module
The IC695PMM335 is the Multi-Axis Motion Controller module covered on this page. The attribute that decides whether it fits the existing installation without modification is 0.45 A.
This configuration's multi-axis motion controller module is the attribute that drives the replacement decision. A processor or controller is selected on memory, scan time and platform compatibility before anything else. multi-axis motion controller module sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 0.45 A against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695PMM335 |
| Series | PACSystem RX3i |
| Part Number | IC695PMM335 |
| Product Line | RX3i |
| Catalog | IC695 |
| No. of Axes | 4 |
| Product Type | Multi-Axis Motion Controller module |
| No of Master axes | 1 |
| Backplane Support | Universal Support |
| Motion Path Planning | 1ms |
| Number of Slots | 1 (single slot) |
| Position Loop Update Rate | 500μs |
| Controlled Axes/Module | 4 |
| FSSB Velocity Loop Update Rate | 125μs |
| FSSB Torque Loop Update Rate | 62.5μs |
| Power Consumption at 5 V | 0.45 A |
| Servo Command Interface | Fiber Optic |
| Power Consumption at 3.3 V | 1.1 A |
| Servo Command Interface speed | 50Mb/s via FANUC Serial Servo Bus (FSSB) |
| High Speed Position Capture | 2 Inputs/Axis |
| Maximum FSSB Cable Length | 100 meters between nodes |
| Floating Point | Yes |
| Compatible encoder type | Incremental/Absolute Serial Encoder |
| General purpose inputs | Four (4) 24VDC, Optically isolated, configurable for source/sink wiring |
| High-speed inputs | Two (2) 24VDC, High-speed Inputs configurable for source/sink wiring |
| General purpose I/O | Two (2) 24VDC, Optically isolated, General Purpose Inputs / Outputs configurable for source/sink wiring. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic695pmm355-rx3i-pacsystems-4-axis-servo-motion-controller | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC695PMM335 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
