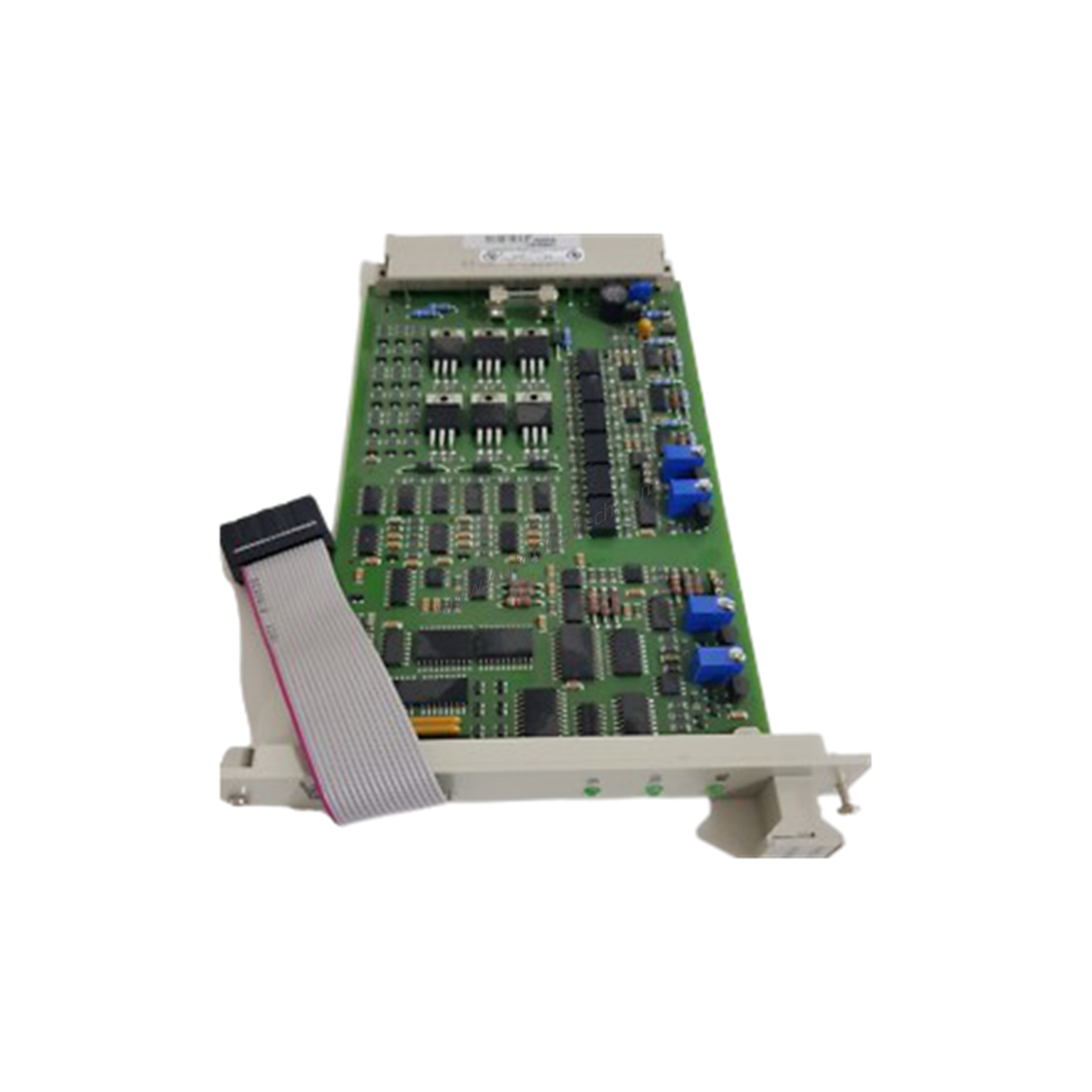

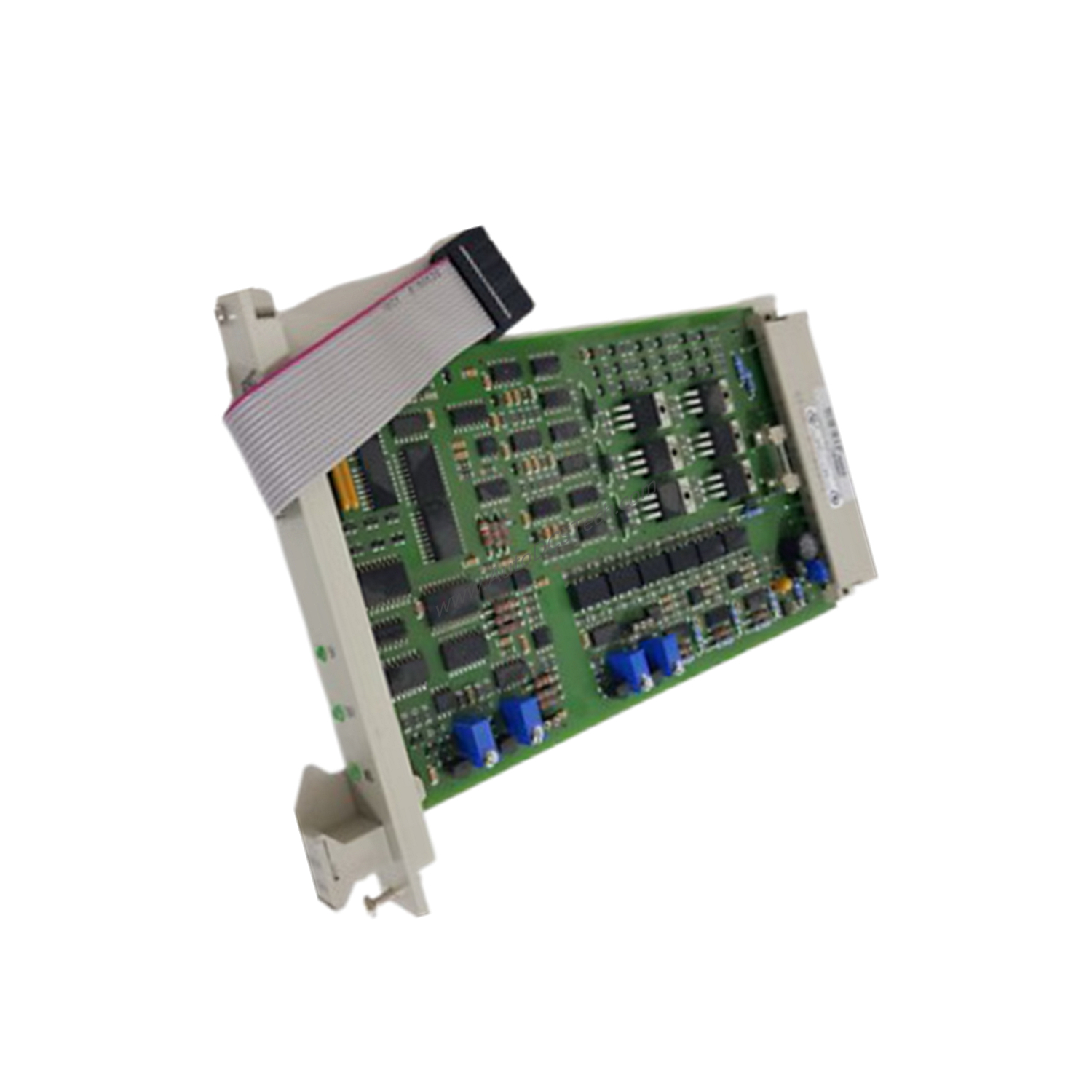

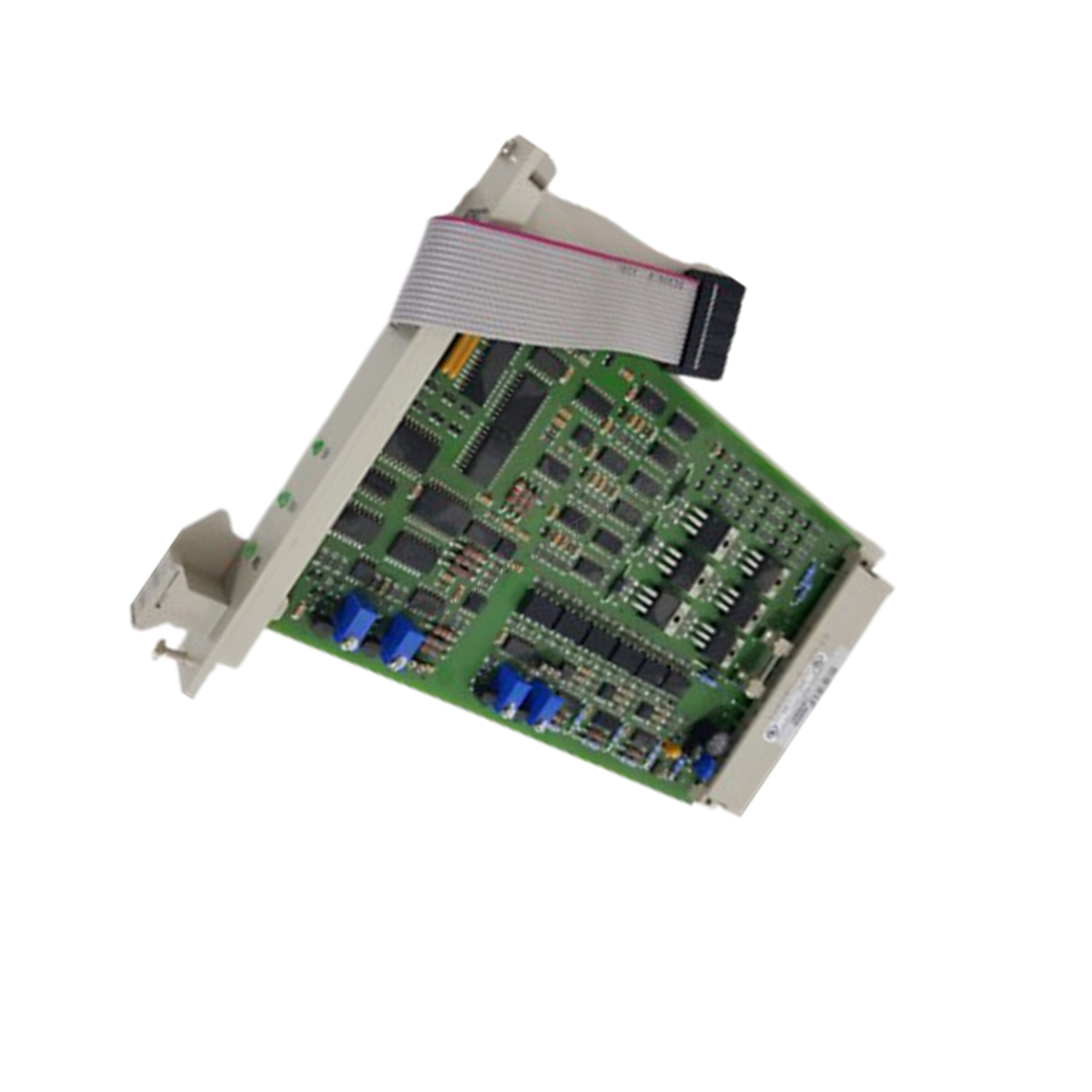

Product Introduction
When configuring a Honeywell safety system with multiple power supply units, maintaining reliable watchdog monitoring becomes critical. The Honeywell 10302/2/1 Watchdog repeater (WDR) solves this challenge by extending watchdog functionality to each subsequent 24 Vdc to 5 Vdc power supply unit, such as PSU 2, 3, and 4. This compact module ensures that the 5 Vdc supply is properly supervised, preventing undetected failures that could compromise system integrity.
As a maintenance engineer, you need components that simplify troubleshooting and reduce downtime. The 10302/2/1 is designed for exactly that purpose—it integrates seamlessly into existing racks and requires minimal space, making it easy to install and service.
Technical Specifications Breakdown
Let's examine the key parameters that define the 10302/2/1 performance:
- Power Requirements: The module draws 5 Vdc at 35 mA (without WDROUT output current) and 24 Vdc at 25 mA. These low power demands mean minimal impact on your overall power budget.
- Input Current: WDG1 + WDG2 input current is just 0.1 mA, ensuring sensitive detection of watchdog signals.
- Space Requirements: With dimensions of 4 TE, 3 HE (equivalent to 4 HP, 3U), this unit fits standard 19-inch racks without wasting valuable panel space.
- Weight: At only 0.12 kg, the 10302/2/1 is lightweight and easy to handle during installation or replacement.
- Approvals: CE, TÜV, and UL certifications confirm compliance with international safety and quality standards.
These specifications directly support reliable operation in demanding industrial environments. The low current draw reduces heat generation, while the compact form factor allows dense packing in control cabinets.
Industry Applications
The 10302/2/1 is essential in several common scenarios:
- Multiple-PSU Configurations: When your system uses more than one 24 Vdc to 5 Vdc power supply unit, each additional PSU (2, 3, 4) requires a watchdog repeater. The 10302/2/1 ensures that all 5 Vdc rails are monitored, preventing a single point of failure.
- High-Voltage Supply Conditions: If the 24 Vdc supply can exceed 31.0 Vdc (with a maximum output voltage under fault conditions less than 37 Vdc), the watchdog repeater is mandatory. This protects downstream modules from overvoltage-related watchdog faults.
- Mixed Redundant and Non-Redundant I/O: In configurations combining redundant and non-redundant I/O, the 10302/2/1 creates the watchdog output for the non-redundant output modules. This maintains consistent fault detection across the entire system.
From a reliability perspective, using the correct watchdog repeater reduces false trips and improves system availability—a key concern for any maintenance team.
Installation & Setup Guidance
Installing the 10302/2/1 is straightforward:
- Mounting: The module occupies 4 TE (4 HP) width and 3 HE (3U) height. It snaps into standard rack slots. The module code indicates holes at A5 and A9; the rack code uses large pins at A5 and A9. Verify your backplane matches these positions before installation.
- Power Connection: Connect 5 Vdc and 24 Vdc supplies as per the power requirements. Ensure the 24 Vdc supply's maximum output voltage stays below 37 Vdc under any single or double fault condition.
- Watchdog Inputs: Wire WDG1 and WDG2 inputs to the corresponding watchdog signals from the power supply units. The input current of 0.1 mA ensures minimal loading.
- Software: The module requires software version 3.00 or higher. Check your system's software revision before commissioning.
Always follow the manufacturer's guidelines for wiring and grounding to maintain safety integrity.
Maintenance & Reliability
From a maintenance engineer's perspective, the 10302/2/1 offers excellent reliability with minimal upkeep:
- No Moving Parts: Solid-state design means no contacts to wear out. The only potential failure points are external connections.
- Visual Inspection: Periodically check that the module is securely seated in the rack and that all connectors are tight. Look for any signs of overheating or damage.
- Environmental Considerations: The module operates within standard industrial temperature ranges. Ensure adequate ventilation around the rack to prevent heat buildup.
Because the 10302/2/1 draws low current, it generates little heat, contributing to long service life. Regular inspection and testing according to the manufacturer's safety manual is recommended to maintain system reliability.
Compatibility & Integration
The 10302/2/1 is designed for Honeywell safety systems that use multiple 24 Vdc to 5 Vdc power supply units. It integrates with:
- Power Supply Units: Works with PSU 2, 3, 4 and others in the same family. Also compatible with M24-20 HE or M24-12 HE power supplies when 24 Vdc is supplied through them.
- Central Parts: In configurations with redundant Central Parts and non-redundant I/O, the watchdog repeater monitors the 5 Vdc power supply if no 5 Vdc monitoring is already in place.
- Rack Systems: Fits standard racks with module code holes A5, A9 and rack code large pins A5, A9.
Always verify compatibility with your specific system configuration before ordering.
Selection Guide & Purchasing Advice
Before purchasing the 10302/2/1, consider the following:
- Verify Your Configuration: Determine if your system requires a watchdog repeater. Refer to the conditions listed in the product description: multiple PSUs, high supply voltage, mixed I/O redundancy, or missing 5 Vdc monitoring.
- Check Software Version: Ensure your system runs software version 3.00 or higher. Older versions may not support this module.
- Order from a Trusted Supplier: SpareTechPLC offers genuine Honeywell 10302/2/1 units with full traceability. Contact our team to confirm availability and lifecycle status before placing an order.
Please verify current lifecycle status and availability with SpareTechPLC before ordering to ensure the product meets your project timeline.
Frequently Asked Questions
Q: When is a watchdog repeater required in a Honeywell system?
A: A watchdog repeater is needed in multiple-PSU configurations for each subsequent 24 Vdc to 5 Vdc power supply unit (e.g., PSU 2, 3, 4). It is also required if the 24 Vdc supply can exceed 31.0 Vdc, if the watchdog current exceeds 900 mA, or in mixed redundant/non-redundant I/O setups.
Q: What are the power requirements for the 10302/2/1?
A: The module requires 5 Vdc at 35 mA (without WDROUT output current) and 24 Vdc at 25 mA. The WDG1 + WDG2 input current is 0.1 mA.
Q: What approvals does the 10302/2/1 hold?
A: The module is approved by CE, TÜV, and UL, ensuring compliance with international safety and quality standards.
Q: What software version is required for the 10302/2/1?
A: The module requires software version 3.00 or higher. Check your system's software revision before installation.
Q: How much space does the 10302/2/1 occupy in a rack?
A: It requires 4 TE, 3 HE (equivalent to 4 HP, 3U). The module code uses holes A5 and A9; the rack code uses large pins A5 and A9.
