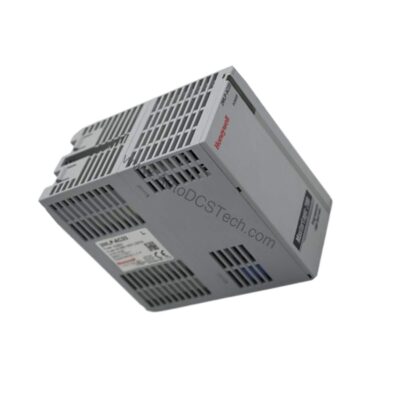

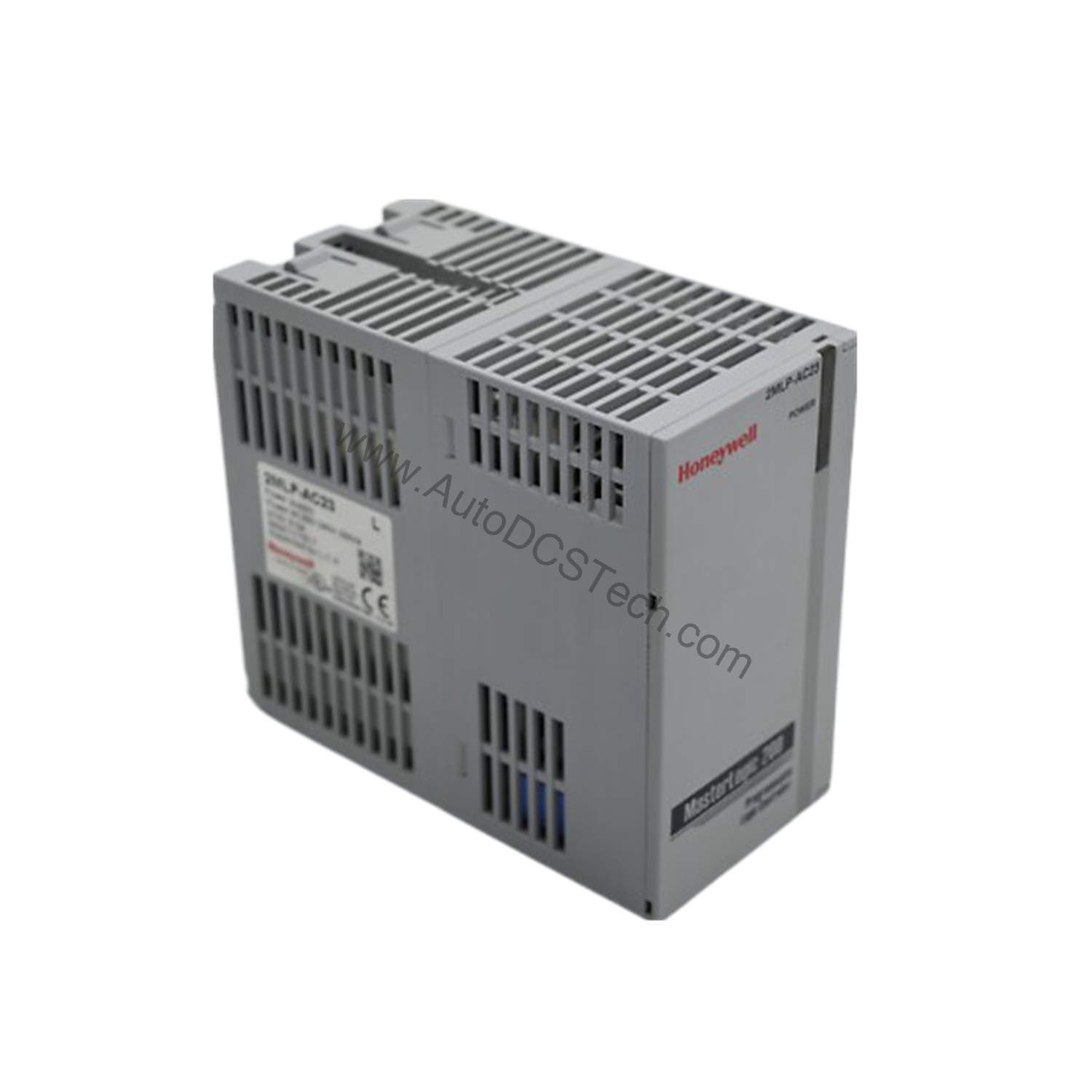

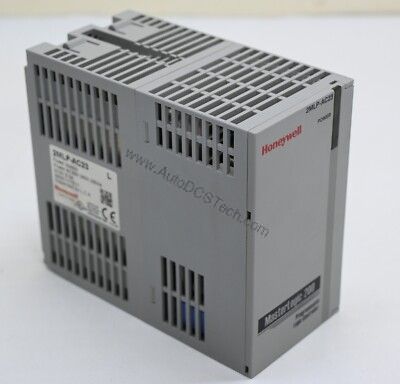

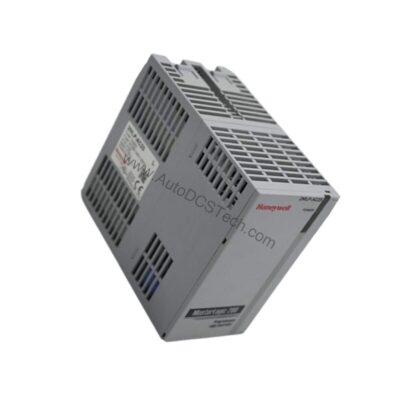

Honeywell 2MLP-AC23 MasterLogic-200 Series Power Module

Technical Specifications Breakdown

Key parameters for the 2MLP-AC23 are listed below for quick reference:

Industry Applications

This power module is well-suited for manufacturing lines, process control, and material handling systems where consistent power is critical. For example, in a packaging line, the 2MLP-AC23 powers PLCs that control robotic welders and conveyors. Its fast response time (10 ms or less OFF→ON) ensures quick recovery from brief power dips, minimizing production interruptions. The built-in fuse (UL standard, slow blow) protects against overcurrent events, reducing the need for external protection and lowering overall system cost. In a water treatment plant, the module's wide input voltage range (AC 170V ~ AC 264V) accommodates unstable grid conditions, preventing nuisance shutdowns.

Installation & Setup Guidance

When installing the 2MLP-AC23, ensure the input voltage matches your local grid (AC 200V – AC 240V rated). Use the specified cable size (0.75 ~ 2mm) with compressed terminals (RAV 1.25 - 3.5 or RAV 2 - 3.5) for secure connections. Verify the frequency matches your local grid (50/60 Hz). The built-in fuse is not user-replaceable; do not attempt to change it. For the RUN contact, connect to a DC 24V, 0.5A load. Always follow the manufacturer's wiring diagram and ensure proper grounding.

Maintenance & Reliability

The 2MLP-AC23 is designed for long-term reliability. Its mechanical life of 20 million operations and electrical life of 100,000 operations at rated current ensure extended service intervals. Periodically inspect the module for dust accumulation, which can impede heat dissipation. Check the voltage indicator LED – it should be ON when output voltage is normal. If the LED is off, verify input power and connections. The built-in fuse protects against overcurrent; if it blows, the module must be serviced by qualified personnel.

Powering Your MasterLogic-200 System with Confidence

Industrial control systems depend on clean, reliable power. The Honeywell 2MLP-AC23 is a dedicated power module for the MasterLogic-200 series, converting standard AC line voltage into the regulated DC levels your PLC needs. This module ensures stable operation of your logic circuits and I/O, reducing the risk of unexpected downtime. Its robust design and built-in protections make it a cost-effective choice for maintaining system uptime.

Compatibility & Integration

The 2MLP-AC23 is designed specifically for Honeywell MasterLogic-200 series PLC systems. It provides the necessary 5V DC logic supply and a RUN contact for status monitoring. Ensure your MasterLogic-200 base unit is compatible with this power module. For integration, connect the output1 to the PLC backplane, and use the RUN contact to signal the controller's health to a supervisory system.

Selection Guide & Purchasing Advice

When selecting a replacement power module, verify the part number and specifications against your existing unit. The 2MLP-AC23 is a genuine Honeywell product, ensuring compatibility and performance. For purchasing, contact AutoDCSTech to check availability and current lifecycle status. They can provide expert guidance and competitive pricing.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
