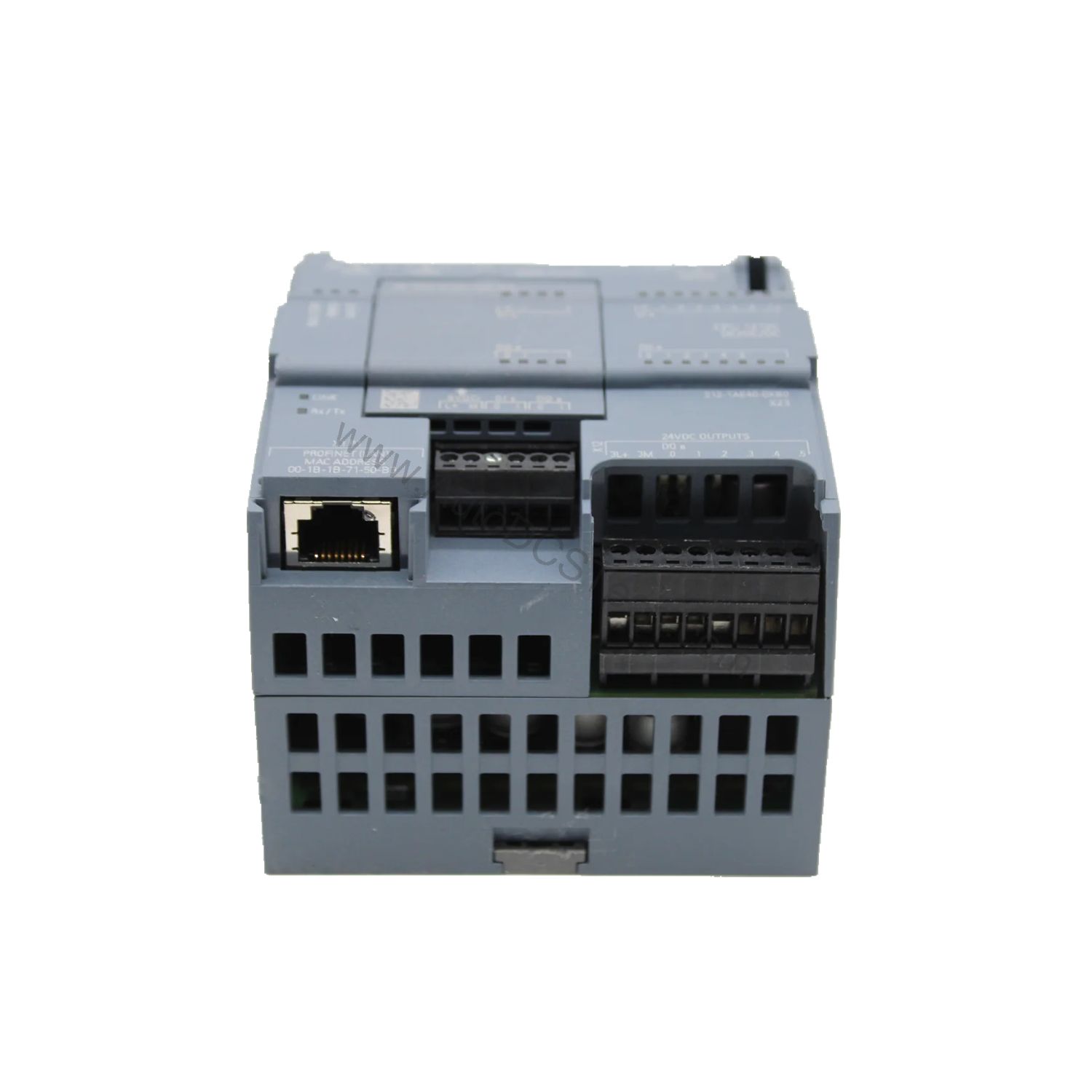

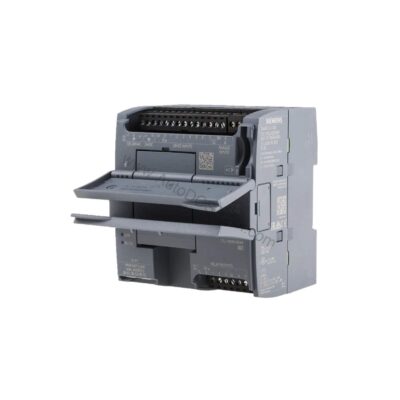

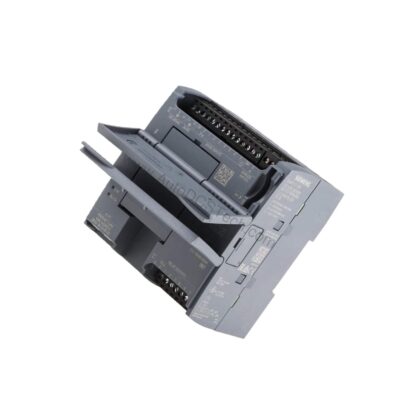

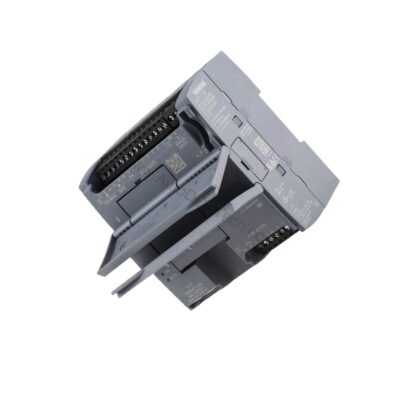

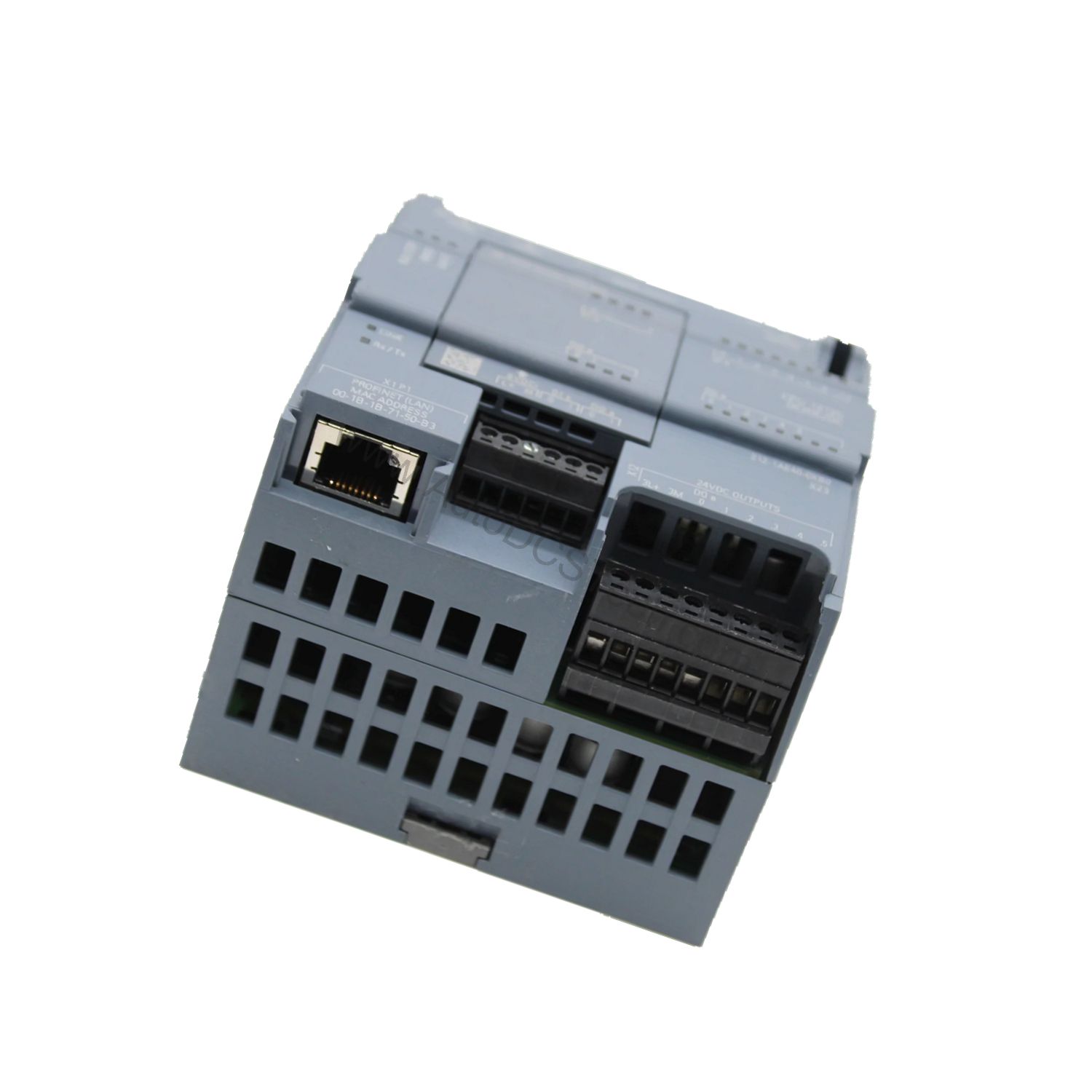

6ES7212-1HE40-0XB0 DC/DC/Relay CPU 1212C

Introduction: The Evolution of Compact Control

Industrial automation has shifted from centralized to distributed control. The Siemens 6ES7212-1HE40-0XB0, part of the SIMATIC S7-1200 family, embodies this evolution. It packs powerful processing into a compact form, enabling smarter machine design.

This CPU 1212C model integrates digital and analog I/O, making it a versatile choice for modern applications. Its DC/DC/Relay configuration ensures reliable switching and sensor interfacing.

Key Features and Technical Specifications

The 6ES7212-1HE40-0XB0 delivers robust performance with a focus on precision and durability. Below are the core specifications extracted from the datasheet.

Its onboard I/O reduces the need for additional modules, saving space and cost. The relay outputs handle up to 2A, suitable for driving contactors and small loads.

Applications and Use Cases

For instance, it can manage a conveyor line with start/stop controls and sensor feedback.

Furthermore, its integrated PROFINET interface enables seamless integration into larger networks, allowing data exchange with HMIs and SCADA systems.

Installation and Setup

Mount the CPU on a standard DIN rail. Ensure proper clearance for ventilation and wiring. Connect the 24V DC power supply to the L+ and M terminals, observing polarity.

For digital inputs, use shielded cables for long runs to minimize noise. Relay outputs require external protection for inductive loads, such as flyback diodes. The PROFINET port uses an RJ45 connector for easy network access.

Maintenance and Reliability

Regularly inspect the unit for dust accumulation and ensure ambient temperature stays within -20°C to 60°C. The CPU has no battery, reducing maintenance needs.

Its robust design includes protection against electrostatic discharge and surge voltages, enhancing long-term reliability. Periodic checks of wiring connections can prevent unexpected downtime.

Compatibility and Integration

The 6ES7212-1HE40-0XB0 supports PROFINET, Modbus, and OPC UA protocols, allowing flexible integration with various systems. It can act as a PROFINET IO controller or device, and supports up to 16 IO devices.

Additionally, it can communicate via PROFIBUS with a CM 1243-5 module. This versatility makes it suitable for both new installations and upgrades.

Troubleshooting and Common Issues

If the CPU fails to start, check the power supply voltage and polarity. Verify that the program is loaded correctly using STEP 7 V18 or later.

For communication issues, confirm IP settings and network cables. The diagnostic LEDs (RUN/STOP, ERROR, MAINT) provide quick status indication. Refer to the manual for detailed troubleshooting.

Product Support and Availability

The 6ES7212-1HE40-0XB0 is an active product from Siemens. Contact AutoDCSTech for availability and fast shipping. Our team can assist with technical queries and ordering.
