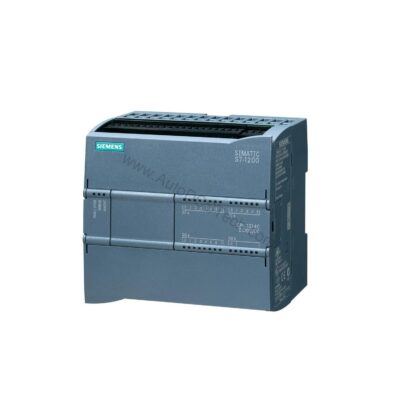

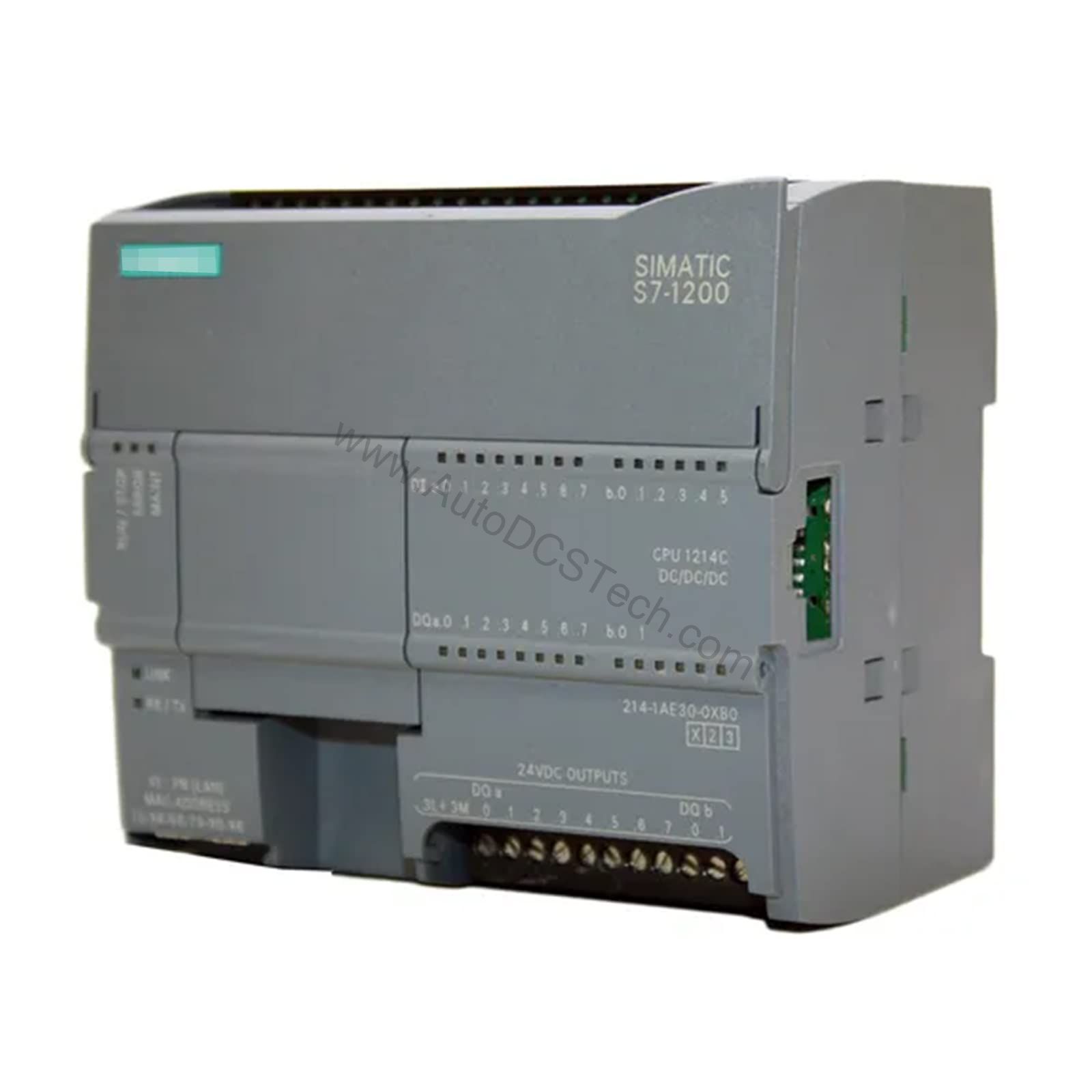

6ES7214-1BG31-0XB0 AC/DC/Relay CPU 1214C

Introduction to the Siemens 6ES7214-1BG31-0XB0 CPU 1214C

When your control system demands reliable logic handling with integrated I/O, the 6ES7214-1BG31-0XB0 from Siemens provides a compact yet powerful solution. This CPU 1214C is part of the SIMATIC S7-1200 family, engineered for small to medium automation tasks. It combines a robust AC power supply with relay outputs, making it suitable for industrial environments where electrical isolation and switching of higher currents are required.

The CPU operates on an AC supply of 85 to 264 V AC at 47 to 63 Hz, offering flexibility for global installations. Its onboard I/O includes 14 digital inputs rated at 24 V DC, 10 relay outputs capable of 2 A, and 2 analog inputs for 0-10 V DC signals. With a program/data memory of 75 KB, this controller handles moderate applications efficiently.

Key Features and Technical Specifications

Engineers selecting the 6ES7214-1BG31-0XB0 will appreciate its balanced feature set. The following table summarizes the most critical parameters:

• Power Supply: AC 85-264 V AC, 47-63 Hz
• Digital Inputs: 14, 24 V DC (source/sink)
• Digital Outputs: 10, relay, 2 A resistive load
• Analog Inputs: 2, 0-10 V DC, 10-bit resolution
• Memory: 75 KB work memory, 4 MB load memory
• Processing Speed: 0.085 µs per bit operation
• Interface: PROFINET (RJ45)
• Protocols: PROFIBUS, AS-Interface, MODBUS, TCP/IP, UDP
• Dimensions: 110 x 100 x 75 mm (W x H x D)
• Weight: approx. 455 g

A distinctive feature is the 24 V encoder supply with a permissible range of 20.4 V to 28.8 V, ensuring stable operation for connected sensors. Additionally, the CPU supports high-speed counting with up to 6 inputs (3 at 100 kHz, 3 at 30 kHz single-phase), enabling precise frequency measurement and positioning tasks.

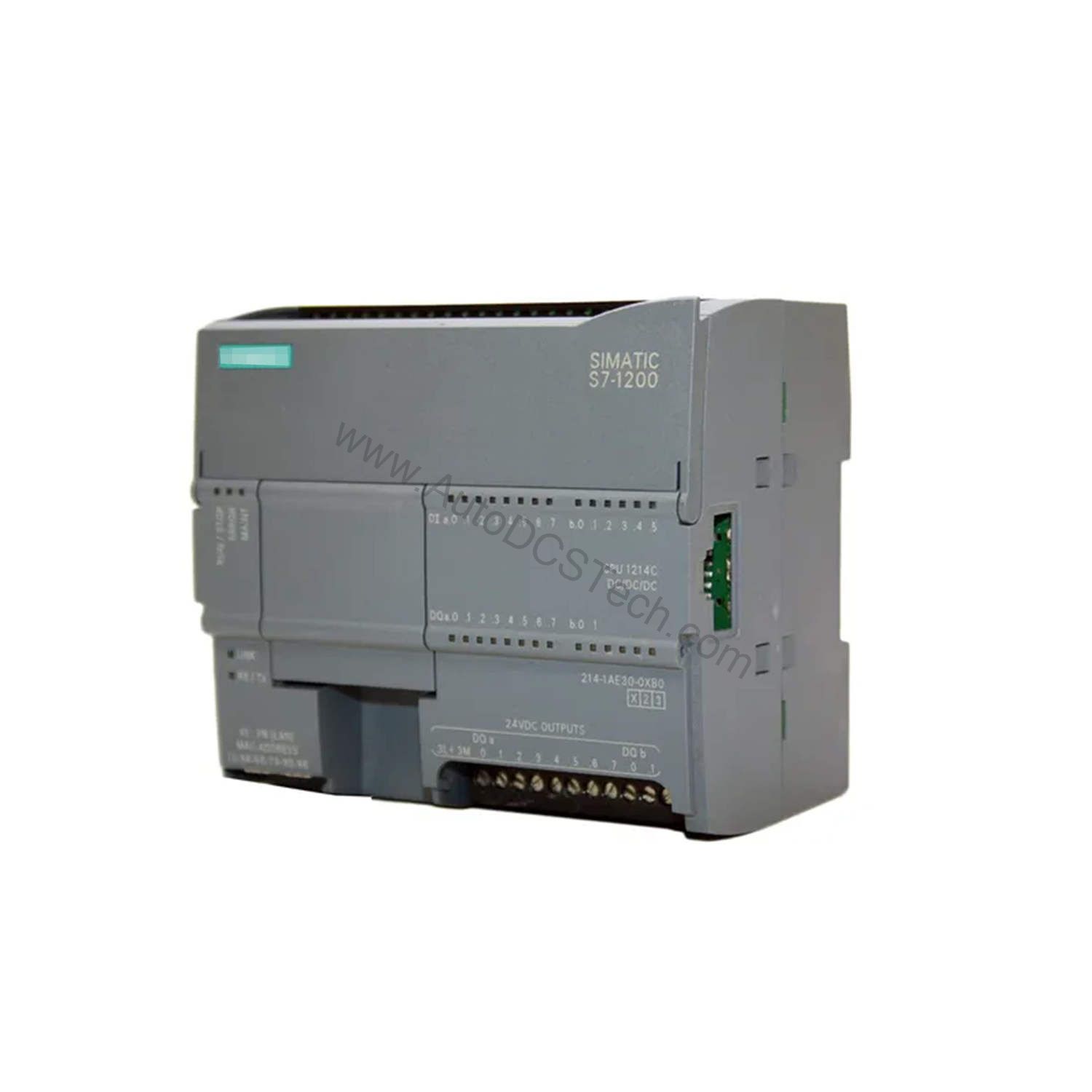

Installation and Setup Guidance

Mounting the 6ES7214-1BG31-0XB0 is straightforward. The unit is designed for DIN rail or wall mounting, with an IP20 degree of protection. Ensure adequate clearance for ventilation, as the typical power loss is 14 W. For wiring, use shielded cables for analog inputs (max 100 m, twisted and shielded) and unshielded cables for digital inputs up to 300 m (but not for technological functions). The relay outputs have a maximum switching capacity of 2 A resistive, and short-circuit protection must be provided externally.

Before powering up, verify that the AC supply is within the specified range. The CPU accepts 120 V AC or 230 V AC rated values, with a permissible range from 85 V to 264 V AC. The line frequency must be between 47 Hz and 63 Hz. For encoder supply, the 24 V output is adjustable within 20.4 V to 28.8 V, so confirm your sensor requirements.

Maintenance and Reliability

Routine maintenance of the 6ES7214-1BG31-0XB0 is minimal. The CPU features a maintenance-free backup without battery, retaining data for 480 hours (typical) during power loss. The hardware clock has a deviation of max 60 seconds per month at 25 °C. For long-term reliability, keep the unit within the operating temperature range of -20 °C to 60 °C (horizontal installation) and avoid condensation. The relay outputs have a mechanical life of 10 million cycles, but at rated load, the electrical life is 100,000 cycles—plan for periodic inspection if switching frequently.

Environmental robustness is confirmed by compliance with IEC 60068-2-6 for vibration (2 g wall mounting, 1 g DIN rail) and IEC 60068-2-27 for shock (15 g peak, 11 ms). These ratings ensure the CPU withstands typical industrial vibrations.

Compatibility and Integration

The 6ES7214-1BG31-0XB0It supports PROFINET as its primary interface, with automatic detection of transmission rate, autonegotiation, and autocrossing. This allows direct connection to engineering stations or higher-level controllers. Additionally, the CPU supports MODBUS and PROFIBUS protocols (via communication modules), enabling integration with legacy devices. The web server function allows user-defined websites for remote monitoring.

For expansion, the CPU accepts up to 3 communication modules, 1 signal board, and 8 signal modules. This scalability makes it suitable for growing applications. The integrated PROFINET interface supports TCP/IP, ISO-on-TCP, and UDP, ensuring flexible connectivity.

Troubleshooting Common Issues

If the CPU fails to start, check the AC supply voltage and frequency. Verify that the inrush current (max 20 A at 264 V) does not trip upstream breakers. For digital input issues, ensure the signal levels meet the thresholds: signal "0" at 5 V DC with 1 mA, signal "1" at 15 V DC with 2.5 mA. If relay outputs do not switch, confirm the load is within the 2 A resistive limit and that external short-circuit protection is installed.

For analog inputs, the input resistance is ≥100 kΩ, so ensure the source impedance is compatible. If communication issues arise, check the PROFINET cable and settings; the interface supports autocrossing, but use shielded twisted-pair cable for best results. The diagnostic buffer is available to trace errors.

Product Support and Availability

The 6ES7214-1BG31-0XB0 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Contact our team to confirm current stock and lead times.
