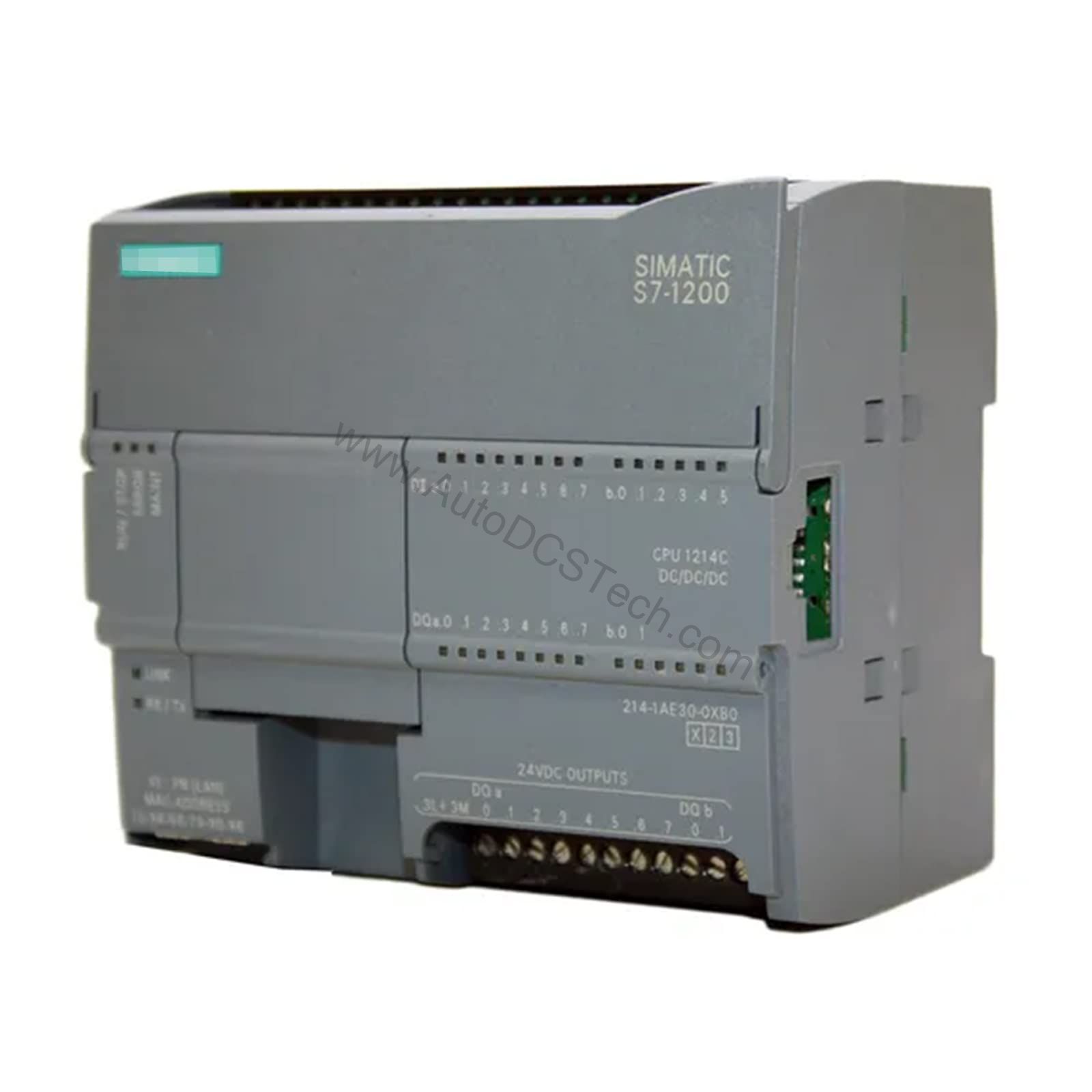

Introduction to the 6ES7214-1HG31-0XB0
When your application demands a compact yet powerful controller, the 6ES7214-1HG31-0XB0 from Siemens delivers. This CPU 1214C DC/DC/Relay is part of the SIMATIC S7-1200 family, engineered for precise control in industrial environments. With onboard I/O including 14 digital inputs, 10 relay outputs, and 2 analog inputs, it handles a wide range of tasks.
The power supply accepts 20.4 to 28.8 V DC, ensuring stable operation. Its 75 KB program/data memory provides ample space for your logic. Whether you are upgrading an existing line or building a new machine, this CPU offers the reliability Siemens is known for.
Key Features and Technical Specifications
The 6ES7214-1HG31-0XB0Below are the critical parameters that define its performance:
- Onboard I/O: 14 digital inputs (24 V DC), 10 relay outputs (2 A), and 2 analog inputs (0-10 V DC).
- Supply Voltage: 20.4 to 28.8 V DC, with a typical current consumption of 500 mA.
- Memory: 75 KB work memory, 4 MB load memory, and 10 KB retentive memory.
- Digital Inputs: 14 total, with 6 usable for high-speed counting (HSC) at up to 100 kHz.
- Relay Outputs: 10 outputs, each rated for 2 A resistive load, with a mechanical life of 10 million cycles.
- Analog Inputs: 2 channels, 0-10 V DC, 10-bit resolution, with a conversion time of 625 µs per channel.
- Communication: PROFINET interface with TCP/IP, MODBUS, and S7 communication support.
- Isolation: 500 V AC between digital inputs and the logic, and relay isolation for outputs.
These specs make the CPU suitable for applications requiring mixed I/O and network connectivity.
Applications and Use Cases
For example, in a conveyor system, the 14 digital inputs can monitor sensors, while the 10 relay outputs drive actuators. The analog inputs can read pressure or temperature transmitters, enabling closed-loop control.
Furthermore, the high-speed counting inputs (up to 100 kHz) make it suitable for speed measurement or position feedback from encoders. The PROFINET interface allows connection to higher-level SCADA systems, facilitating data exchange and remote monitoring.

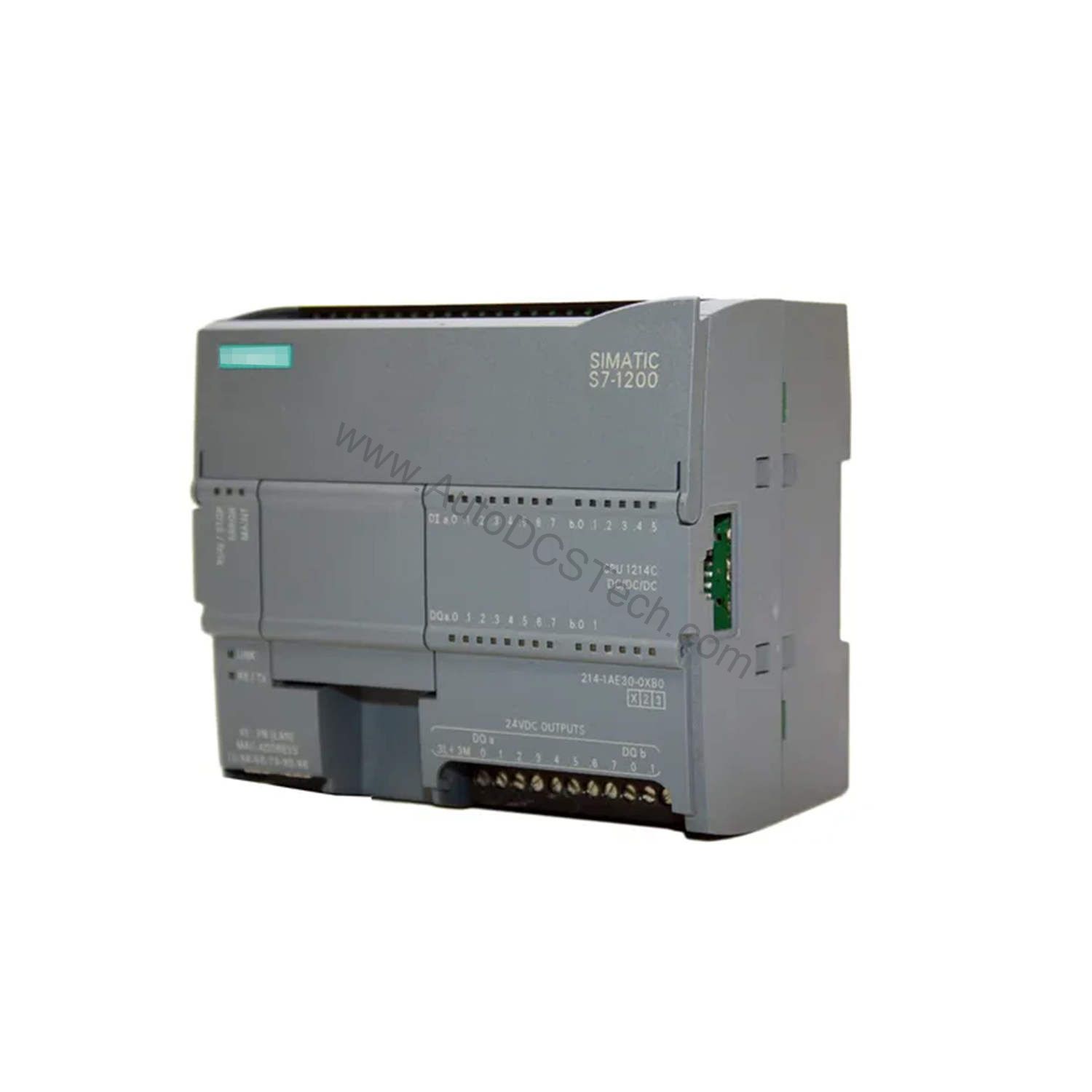

Installation and Setup
Mount the 6ES7214-1HG31-0XB0 on a standard DIN rail or directly on a panel. Ensure adequate clearance for ventilation and wiring. Connect the 24 V DC power supply to the L+ and M terminals, observing polarity. For digital inputs, use the 24 V DC sensor supply; the CPU provides 24 V encoder supply with a permissible range of 20.4 to 28.8 V.
Wire relay outputs with appropriate fusing, as short-circuit protection is not internal. Use shielded cables for analog inputs, with a maximum length of 100 m, twisted and shielded. For digital inputs, shielded cable can run up to 500 m, but for high-speed counting, limit to 50 m.
After wiring, configure the CPU using STEP 7 V11 SP2 or higher. Set the IP address for PROFINET and download your program.
Maintenance and Reliability
Routine maintenance is minimal. Periodically inspect the unit for dust accumulation and ensure ventilation is unobstructed. Check that all wiring connections are tight and free from corrosion. The relay outputs have a mechanical life of 10 million cycles; if switching frequently, consider derating or using external contactors.
The CPU includes a maintenance-free backup for retentive data, so no battery replacement is needed. For long-term reliability, operate within the specified temperature range and avoid condensation.
Buyer's Guide: Evaluating the 6ES7214-1HG31-0XB0
When selecting a PLC, consider your I/O count, communication needs, and environmental conditions. The 6ES7214-1HG31-0XB0 offers a balanced feature set:
- I/O Flexibility: With 14 DI, 10 DO, and 2 AI, it covers many small to medium machines without extra modules.
- Communication: The built-in PROFINET port allows easy integration into modern networks, supporting protocols like MODBUS and TCP/IP.
- Environmental Tolerance: Operating temperature ranges from -20 °C to 60 °C (horizontal), and it meets IP20 protection.
- Reliability: The relay outputs handle up to 2 A, and the CPU includes a maintenance-free backup for retentive data.
Check your specific voltage and current requirements against these specs to ensure a proper fit.
Compatibility and Integration
The 6ES7214-1HG31-0XB0 supports PROFINET, PROFIBUS, and AS-Interface protocols, making it versatile for various networks. It can act as a PROFINET IO controller and supports S7 communication as both server and client. Open IE communication via TCP/IP, ISO-on-TCP, and UDP is also available.
This CPU can be expanded with up to 3 communication modules, 1 signal board, and 8 signal modules, allowing you to tailor I/O to your needs. It also supports MODBUS, which is common in many industrial devices.
Troubleshooting Common Issues
If the CPU fails to start, check the power supply voltage (20.4-28.8 V DC) and the status LEDs. If the RUN LED is off, verify the program is loaded and there are no errors in the diagnostic buffer. For communication issues, confirm the PROFINET cable is connected and the IP address is correct.
If digital inputs do not respond, ensure the input voltage meets the signal "1" threshold (15 V DC at 2.5 mA). For relay outputs, check the load current does not exceed 2 A and that the output is not short-circuited. Use the diagnostic buffer to identify faults.
Product Support and Availability
The 6ES7214-1HG31-0XB0 is available from AutoDCSTech. We stock this Siemens CPU and can ship promptly. Contact our team for technical support or to place an order.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7214-1HG31-0XB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
