Technical Specifications Breakdown
Key parameters for the 900SP1-0100 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Processor | Dual Core ARM® Cortex™-A9 Core (32 bit) 667 MHz |
| Rotary Address Switch | Determine the Rack address range from 1 to 99 |
| LEDs | 2 LEDs, three color each, indicate the status of EPM |
| Ethernet Ports | 2 |
| Network Connection | Shielded RJ45 connector, auto-crossover |
| Network Port Speed | 10/100BaseTx, auto-detecting |
| Isolation | 1500 Volts RMS 1 minute |
| Transient Voltage Suppression | 600W peak pulse power capability at 10×1000μs waveform, repetition rate:0.01% |
| Power Consumption | 2.6W |
| Heat Dissipation | 2.6W |
Industry Applications: Where This Module Shines
1. Large-Scale Process Plants
In industries like oil & gas, chemicals, and power generation, control systems often span large physical areas. The 900SP1-0100 allows you to place I/O racks close to field devices, reducing wiring costs and signal degradation. The support for both star and ring topologies gives you the flexibility to design a network that matches your plant's layout and redundancy requirements. For redundant systems, the ring topology provides a self-healing path, ensuring that a single cable break doesn't shut down your process.
2. High-Availability Production Lines
For continuous manufacturing processes, downtime is extremely costly. The EPM's support for redundant Ethernet networks (via ring topology) means that if one communication path fails, the system automatically switches to the alternate path. This failover capability, combined with the module's diagnostic LEDs, allows for quick identification and resolution of network issues, minimizing production interruptions.
3. Distributed Control Architectures
It allows you to add expansion I/O racks in different locations, all communicating back to the central CPM. This modular approach simplifies system design, reduces engineering effort, and makes future expansions straightforward.
Installation & Setup Guidance
Proper installation is crucial for reliable operation. Here are some engineer-level guidelines:
- Address Configuration: Use the rotary address switch to set the rack address (1-99). Ensure each EPM on the network has an unique address to avoid conflicts.
- Network Topology: Decide between star and ring topology based on your redundancy needs. For ring topology, you'll need to connect the ports in a loop, ensuring that the network switch supports the required configuration.
- Cabling: Use shielded CAT5 cable for copper connections. For longer distances (up to 5000m), use multi-mode fiber optic cable with SC connectors. Always respect the maximum cable lengths: 100m for copper (CPM to EPM or switch) and 5000m for fiber.
- Fiber Optic Equipment: If using fiber, select qualified equipment such as Moxa unmanaged switches (EDS-308, EDS-308-MM-SC, EDS-316-MM-SC) or the Moxa IMC-101-M-SC converter. These require 24VDC power.
- Power: The module consumes only 2.6W, so power supply sizing is straightforward. Ensure that the power source is stable and properly grounded.
Maintenance & Reliability
The 900SP1-0100 is designed for long-term reliability, but regular inspection is recommended to ensure optimal performance. Periodically check the diagnostic LEDs to verify the module's status. Inspect network cables and connectors for damage or corrosion. Keep the module clean and free from dust, and ensure adequate ventilation to dissipate the 2.6W of heat. For systems in harsh environments, consider preventive maintenance schedules aligned with your plant's overall maintenance plan.
Why the 900SP1-0100 Matters for Your Control System

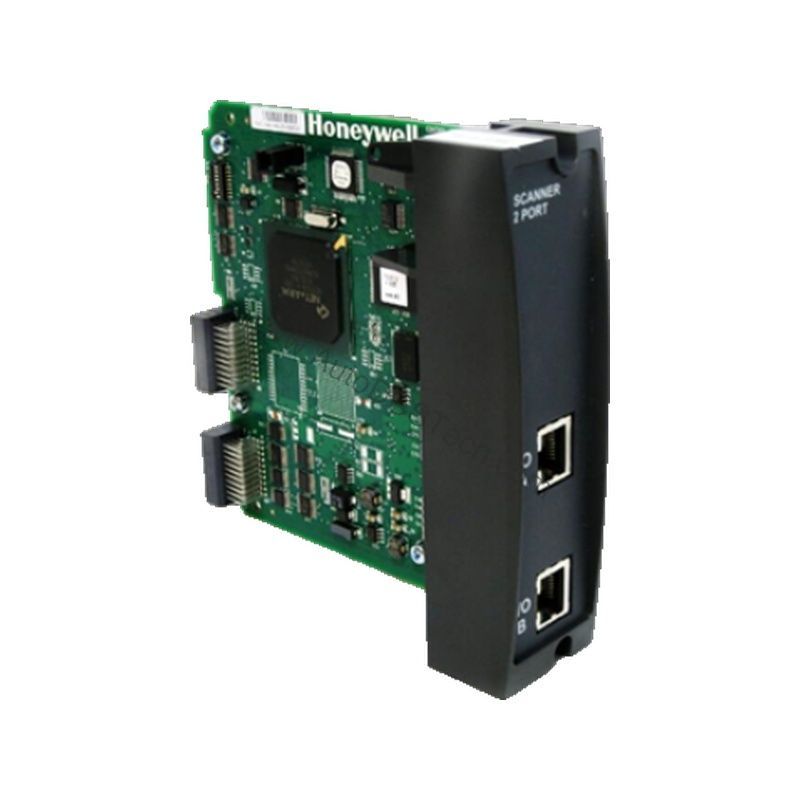

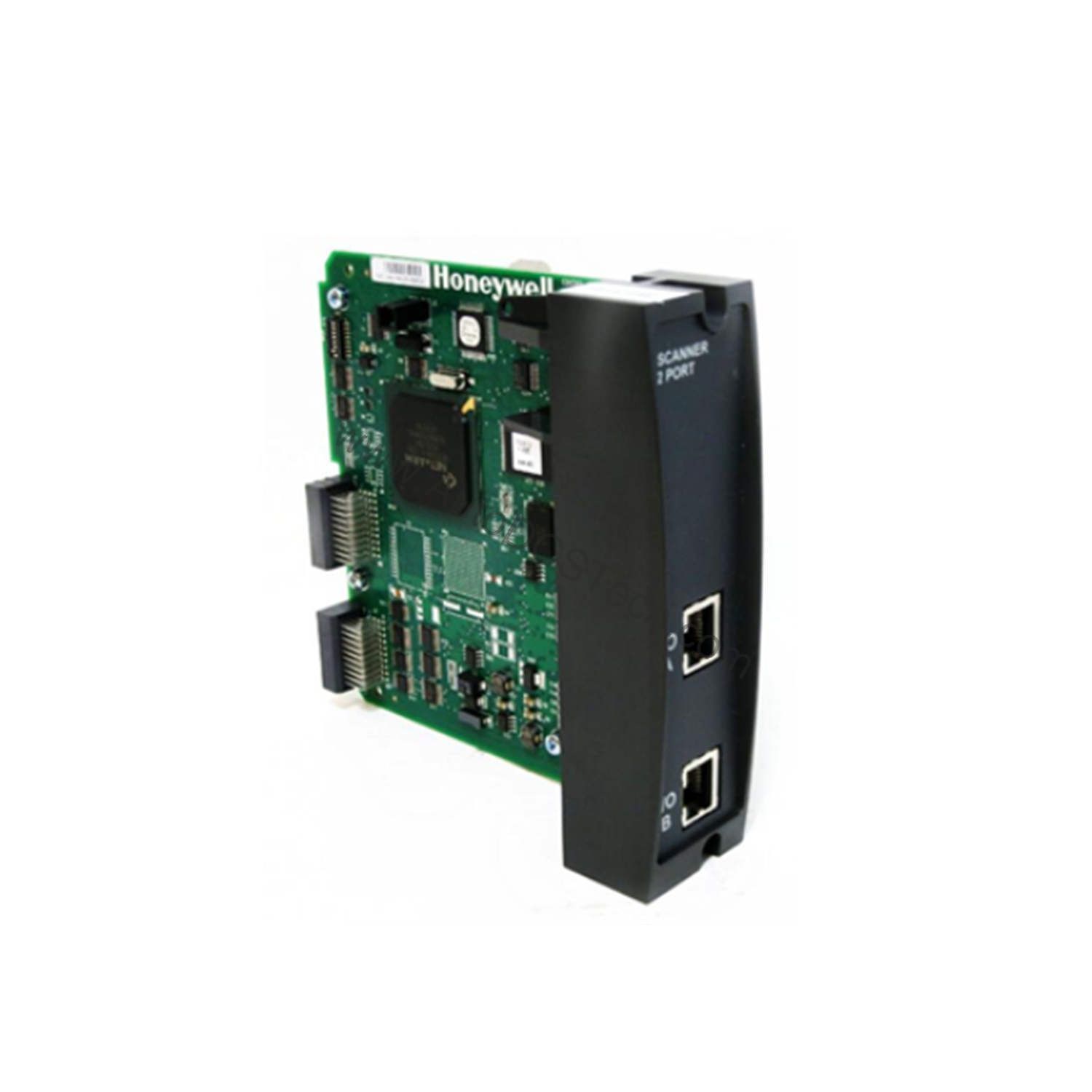

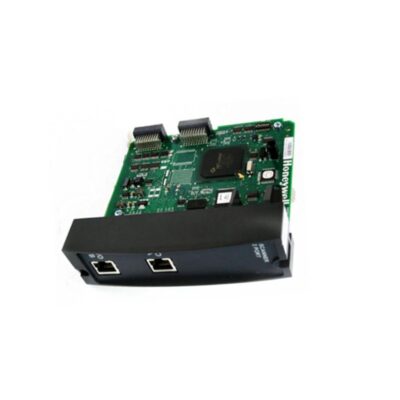

The Honeywell 900SP1-0100 Expansion Processor Module (EPM) is the critical interface that makes this happen. Without it, your expansion racks cannot communicate with the CPM, which means no data, no control, and no production.
This module is not just a passive bridge; it's an active, intelligent processor that manages the flow of I/O data, ensuring that your system operates with the speed and reliability that modern industrial processes demand. If you're facing challenges with system expansion, or if you're designing a new installation, understanding the role of the EPM is essential.
Compatibility & Integration
The 900SP1-0100 is specifically designed for the Honeywell ControlEdge 900 platform. It acts as the interface between expansion I/O and the control processor module. The module's two Ethernet ports support I/O communication protocols, and it is compatible with both redundant and non-redundant systems. When integrating, ensure that your CPM and I/O racks are also ControlEdge 900 compatible. The module supports standard RJ45 connections for copper and SC connectors for fiber, making it easy to integrate with existing network infrastructure.
Selection Guide & Purchasing Advice
When selecting the 900SP1-0100 for your project, consider your system's current size and future expansion plans. If you are adding a new I/O rack, you will need one EPM per rack. For redundant systems, you may need additional modules or network switches to support the ring topology. Always verify the compatibility of your existing CPM and I/O hardware.
At AutoDCSTech, we understand the importance of reliable, genuine parts for your automation systems. We offer the Honeywell 900SP1-0100 Expansion Processor Module, backed by our commitment to quality and customer service. Contact our team to check availability and lifecycle status before ordering, and to discuss your specific application needs. We're here to help you keep your processes running smoothly.
Availability & Condition at AutoDCSTech
| Part Number | 900SP1-0100 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
