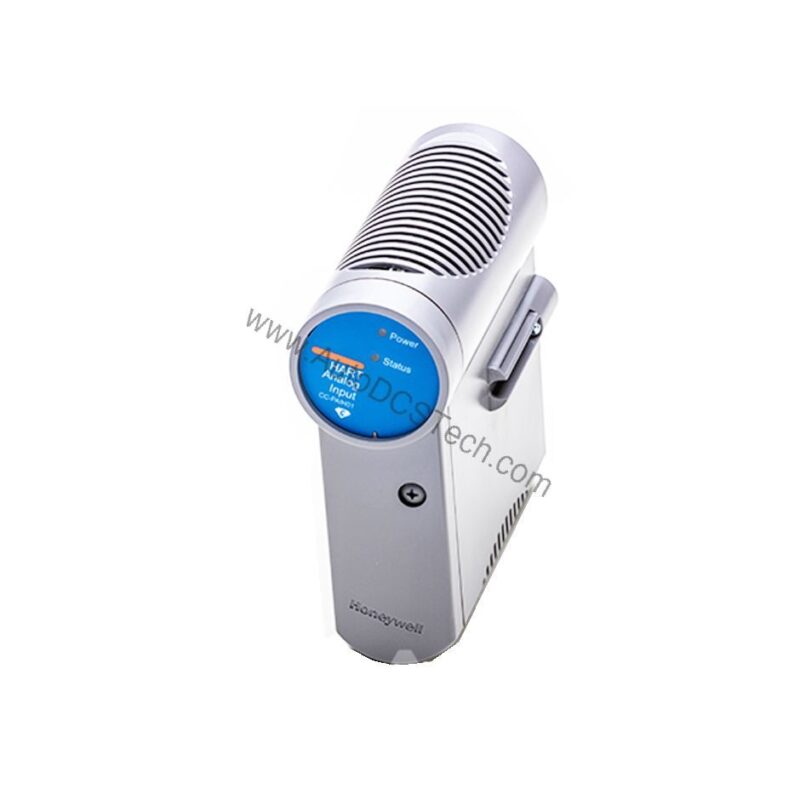

CC-PAIM01: Low Level Analog Input Module
The CC-PAIM01 is the Low Level Analog Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is Pt 100 ohm DIN 4376, Pt 100 ohm JIS C-1604, Ni 120 ohm ED #7, Cu 10 ohm SEER.
On this unit low level analog input module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. low level analog input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching Pt 100 ohm DIN 4376, Pt 100 ohm JIS C-1604, Ni 120 ohm ED #7, Cu 10 ohm SEER against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Honeywell |
| Brand | Honeywell |
| Part Number | CC-PAIM01 |
| Input/Output Model | CC-PAIM01 |
| PMIO FTA Models | MU-TAMR04, TAMT04, TAMT14 |
| Input Type | Thermocouple and/or RTD |
| Input Channels | 64 |
| Scan Rate | 1 second |
| Supported RTD Types | Pt 100 ohm DIN 4376, Pt 100 ohm JIS C-1604, Ni 120 ohm ED #7, Cu 10 ohm SEER |
| Supported TC Types | J, K, E, T, B, S, R, Japan Type R'. |
