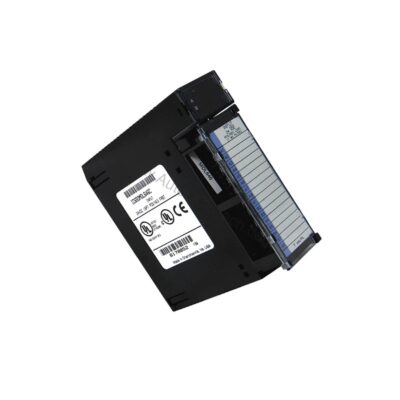

IC693MDL646D GE 16-Channel 24 VDC Discrete Input Module

Product Overview: IC693MDL646D

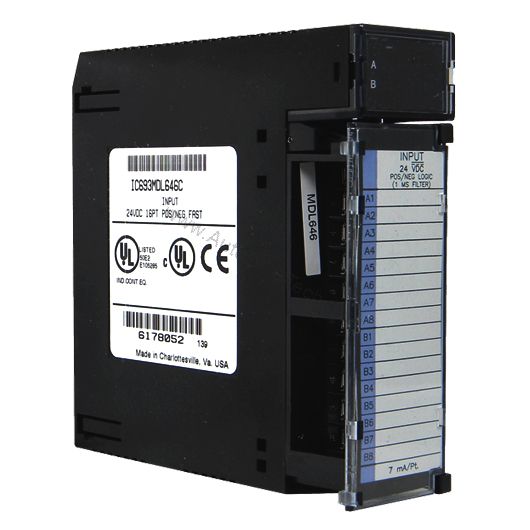

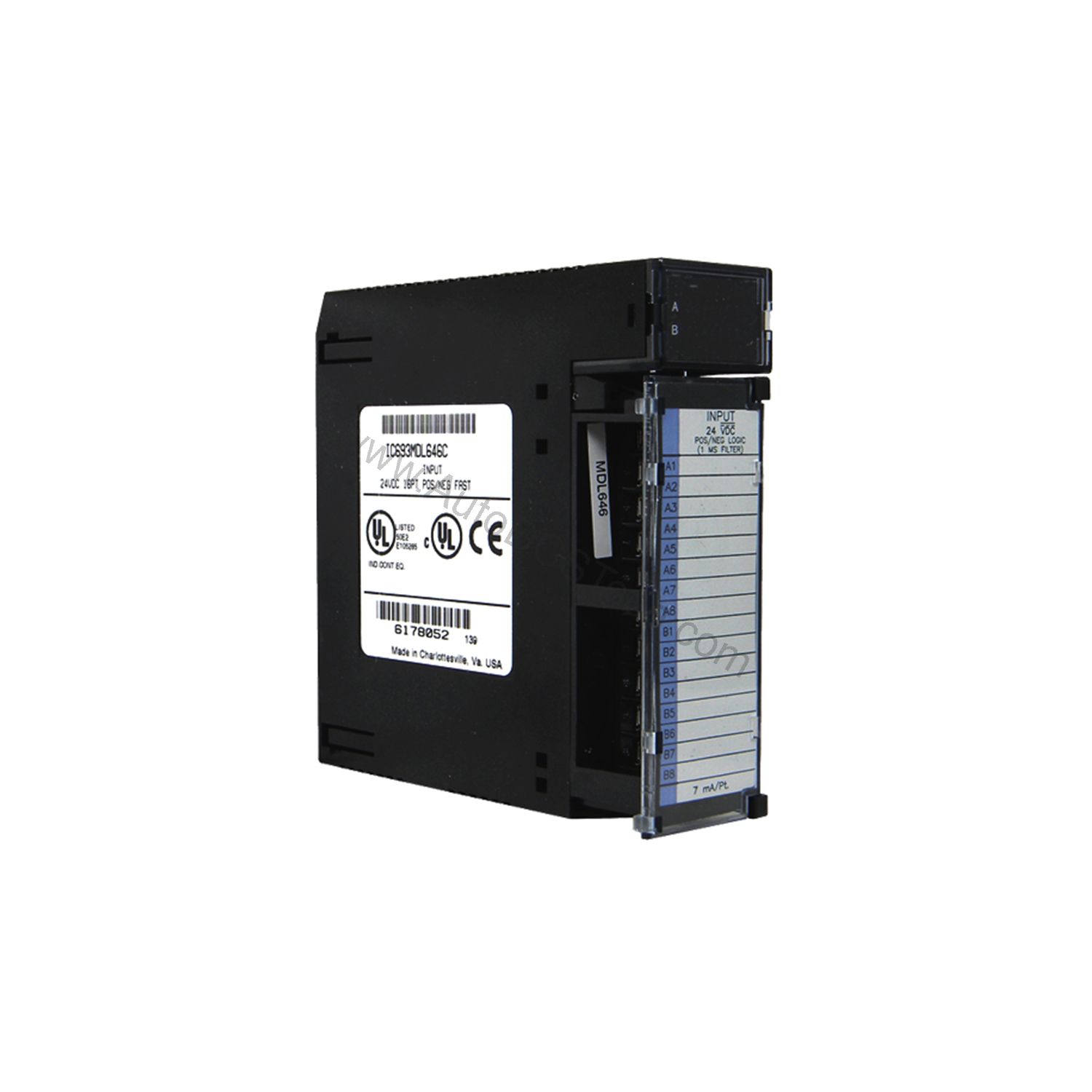

The IC693MDL646D is a 16-channel, 24 VDC high-speed discrete input module for the GE Series 90-30 PLC platform. Originally manufactured by GE Fanuc and now owned by Emerson, this revision D module provides precise, reliable field input acquisition for industrial control systems. It supports both positive and negative logic, making it adaptable to a range of sensor and switch interfaces. With a 1500 V field-to-logic isolation barrier, the module protects the backplane from electrical noise and transients commonly found in factory environments. The IC693MDL646D occupies a single slot, simplifying panel layout and reducing installation time. As an engineering-grade component, it delivers exact performance for demanding automation tasks.

Technical Specifications of the IC693MDL646D

• Channels: 16 (one group with single common)
• Rated Voltage: 24 VDC
• Input Voltage Range: 0 to 30 VDC
• Input Current: 7 mA (typical) at rated voltage
• Logic Type: Positive / negative logic
• On-state Voltage: 11.5 to 30 VDC
• Off-state Voltage: 0 to +5 VDC
• Response Time: 1.5 ms typical (on), 1.0 ms typical (off)
• Isolation: 1500 V field-to-logic
• Operating Temperature: 0 to +60°C ambient
• Slot Width: Single slot

These verified parameters ensure the IC693MDL646D meets the exact needs of high-speed input applications. The 7 mA input current at 24 VDC minimizes load on field devices, while the 1500 V isolation safeguards the PLC backplane.

Installation and Integration

Installing the IC693MDL646D requires a single slot in a Series 90-30 rack. First, verify that the backplane power budget supports the module. Although backplane current consumption is not available, consult the official datasheet for this value. Next, wire field devices to the terminal block, observing the single common configuration. Because the module supports positive and negative logic, you can configure it for sinking or sourcing inputs by following the manufacturer's wiring diagrams. The 1500 V isolation eliminates the need for external isolators in most cases. For integration into existing systems, the IC693MDL646D is compatible with Series 90-30 CPUs and I/O racks. However, always confirm compatibility with your specific CPU model. If the module is part of a larger network, note that Series 90-30 systems may require a gateway for Ethernet or serial communication. Contact AutoDCSTech for precise matching of cables and gateways.

Maintenance and Reliability

The IC693MDL646D is designed for long-term reliability in industrial environments. To maintain optimal performance, inspect the module periodically for loose connections or dust accumulation. Operate within the specified ambient temperature range of 0 to +60°C. Since the module is discontinued, spare units may become scarce. Therefore, consider stocking spares for critical applications. The 1500 V isolation and robust construction reduce failure risk, but always follow the manufacturer's safety manual during maintenance. This part has been discontinued by the manufacturer. Migrate to PACSystems RX3i (IC695 series); we stock remaining new and refurbished units.
