SR2B121BD Schneider Electric 24V DC 12 I/O Smart Relay

SR2B121BD: Precision Control for Compact Automation Panels

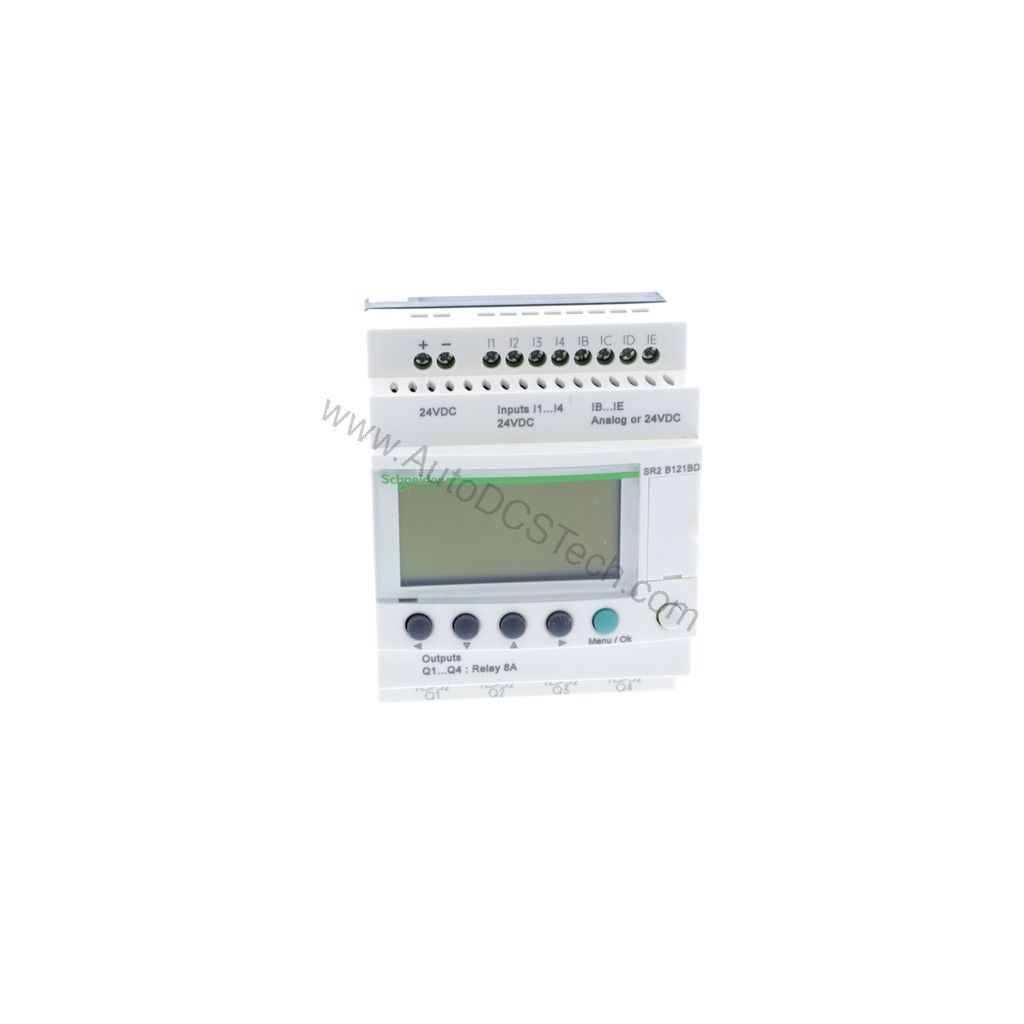

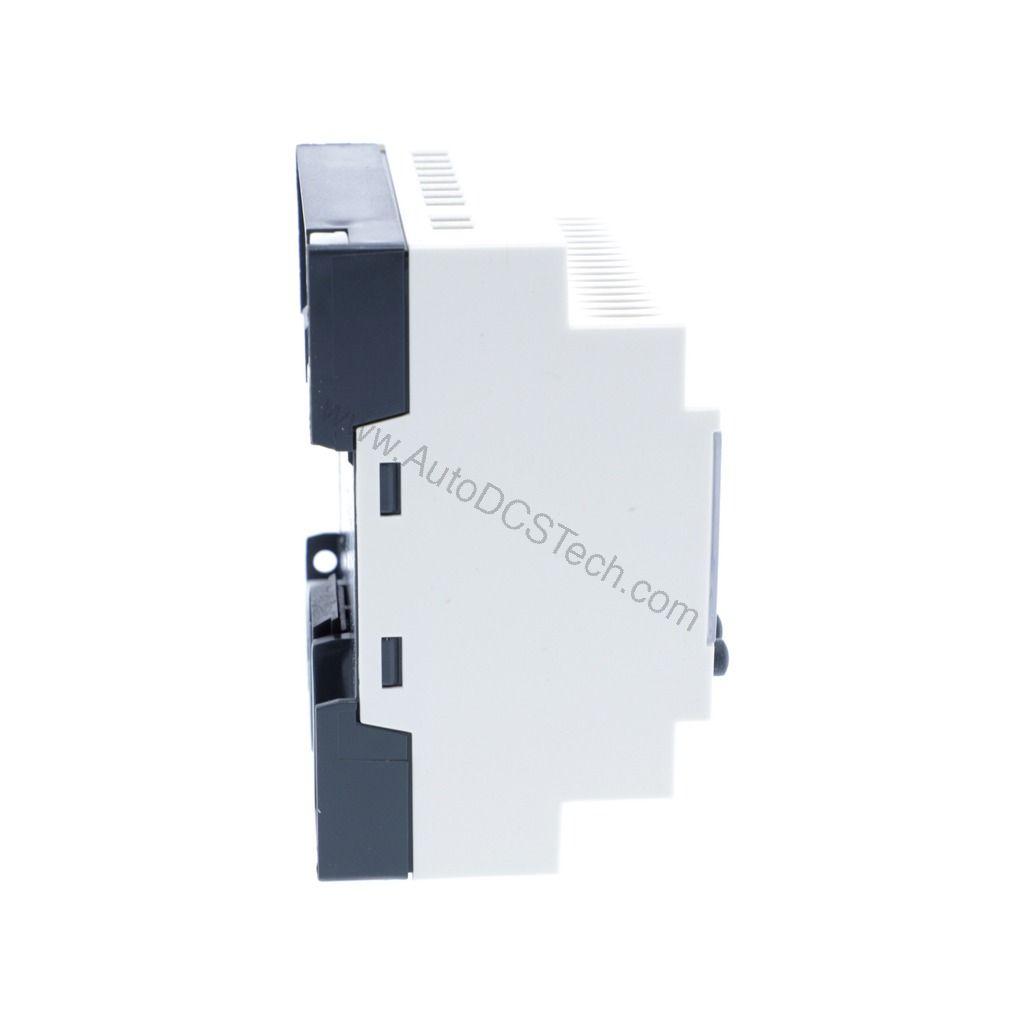

Panel builders frequently face a recurring constraint: limited DIN rail space demands control logic without the footprint of a full PLC. The Schneider Electric SR2B121BD addresses this directly. As part of the Zelio Logic range, this compact smart relay integrates 12 I/O points, an LCD interface, and a real-time clock into a housing measuring only 90 × 71.2 × 59.5 mm. Consequently, engineers can implement timed sequences, counting functions, and logic control without expanding enclosure dimensions.

Key Specifications of the SR2B121BD Smart Relay

• Supply voltage: 24V DC nominal, operating range 19.2–30V
• Digital inputs: 8 total, with 4 configurable as analog inputs at 8-bit resolution
• Digital outputs: 4 relay outputs rated at 8 A thermal current each
• Program memory: 240 lines in ladder logic or 500 blocks in FBD
• Real-time clock: Integrated, enabling calendar and scheduling functions
• Display: LCD with navigation buttons for on-site monitoring
• Mounting: 35 mm DIN rail
• Operating temperature: -20 to 55 °C

The 8 A relay output rating stands out in this class. Because each output handles higher thermal current, the SR2B121BD can drive contactors and solenoid valves directly. This eliminates intermediate relays, reducing component count and wiring complexity.

Installation and Commissioning

Mounting the SR2B121BD on 35 mm DIN rail takes minimal time. After securing the module, connect the 24V DC supply within the 19.2–30V range. The LCD and navigation buttons allow immediate parameter verification without a programming terminal. For logic creation, Zelio Soft software supports both ladder and FBD programming. The 240-line ladder capacity suits straightforward interlock and sequencing tasks. Furthermore, the integrated real-time clock enables time-based control without external timers. When routing wiring, separate analog input signals from relay output conductors to minimize induced noise.

Reliability and Maintenance

The SR2B121BD relay outputs carry a mechanical life of 10,000,000 cycles and an electrical life of 500,000 cycles at AC-12, 230V 1.5A per IEC 60947-5-1. These figures support long service intervals in moderate switching applications. For maintenance, inspect terminal connections periodically and verify output contact condition. Since the operating range extends from -20 to 55 °C, the module suits unheated cabinets and outdoor enclosures alike. However, ensure adequate ventilation when multiple relays switch frequently.

Integration with Control Systems

The SR2B121BD communicates through extension modules supporting Ethernet and RS485. This modular approach lets engineers add network connectivity as requirements evolve. Integration Note: wiring into Ethernet or RS485 networks may require an external gateway or connection module. Confirm cable specifications and gateway compatibility with your supplier before commissioning.

Availability

The SR2B121BD is active in production within the Zelio Logic range. Contact AutoDCSTech with your exact requirements for precise matching.
