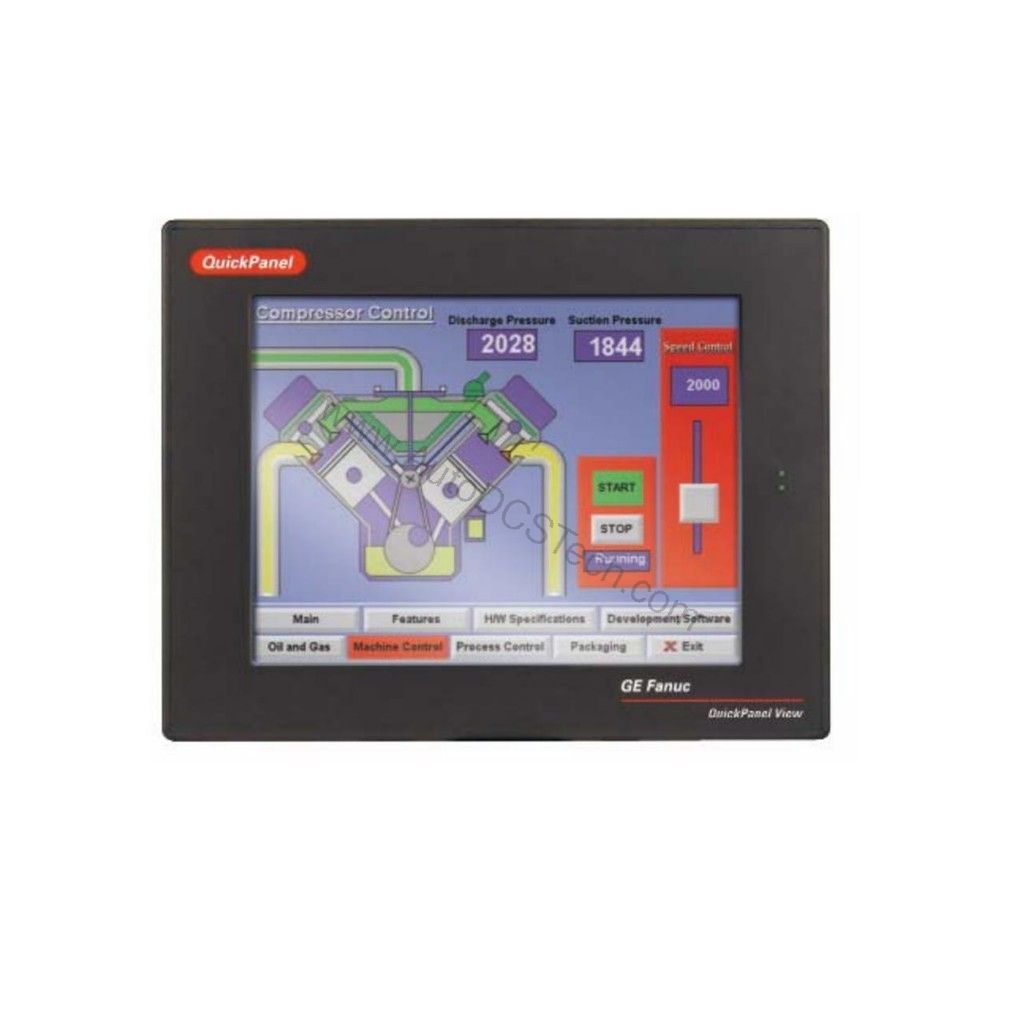

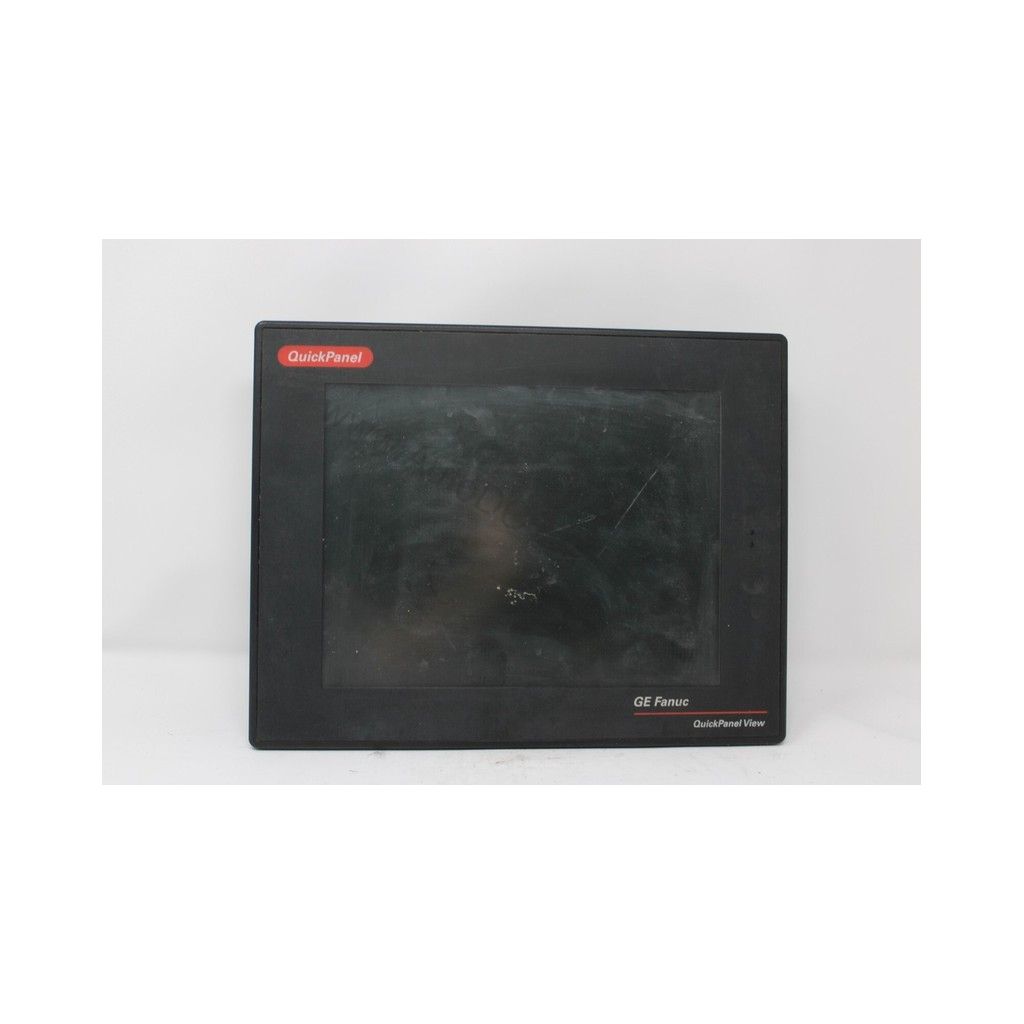

IC754VSI12CTD-HH GE QuickPanel 12" HMI 24 V DC

Product Overview: IC754VSI12CTD-HH QuickPanel HMI

The IC754VSI12CTD-HH is a 12-inch color touchscreen operator panel from the GE QuickPanel series. Originally manufactured by GE Fanuc and now owned by Emerson, this HMI delivers reliable visualization for industrial processes. Because it uses a 24 V DC supply, it integrates into standard control cabinets without additional power conversion. Consequently, you reduce wiring complexity and lower installation costs. The resistive analog touchscreen responds to gloved operation, which minimizes downtime in rugged environments. Meanwhile, the IP65 front protection shields the display from dust and water ingress. As a result, the panel operates reliably in wash-down or dusty areas, cutting maintenance expenses over its service life.

IC754VSI12CTD-HH Technical Specifications

• Screen size: 12 inch
• Display type: TFT color LCD
• Touch type: Resistive analog touch
• Supply voltage: 24 V DC
• Front protection: IP65
• Series: QuickPanel
• Original manufacturer: GE Fanuc / GE Intelligent Platforms
• Current owner: Emerson

Each specification above contributes to cost efficiency. For instance, the 24 V DC input matches common industrial power supplies, eliminating extra transformers. Additionally, the TFT color LCD provides clear status indication, which reduces operator errors and associated scrap costs. The resistive touchscreen supports precise input even with gloves, improving productivity. Furthermore, IP65 sealing prevents contaminant damage, extending replacement intervals. For dimensions, weight, or port details, refer to the official datasheet or contact AutoDCSTech for precise matching.

Cost-Effective Integration and Operation

Integrating the IC754VSI12CTD-HH into your control system lowers total cost of ownership. Because the panel operates on 24 V DC, it shares power with PLCs and sensors, reducing power supply count. The 12-inch display offers ample screen area for complex HMI screens, which decreases the need for multiple smaller panels. Consequently, you save on hardware and panel space. The resistive touch technology remains functional in dirty or wet conditions, so you avoid expensive protective enclosures. Moreover, the IP65 front rating allows cleaning without shutdown, cutting labor costs. When you need replacement or upgrade, the QuickPanel series maintains compatibility with existing GE Fanuc installations, preserving your software investment.

Applications and Use Cases

The IC754VSI12CTD-HH suits manufacturing cells, water treatment, and packaging lines. For example, in automotive assembly, it displays torque data and fault codes, helping operators correct issues quickly. In food processing, the IP65 front withstands wash-down, reducing sanitation downtime. Because the touchscreen works with gloves, technicians can interact without removing safety gear, improving response time. Additionally, the 24 V DC supply simplifies integration into existing 24 V control architectures. As a result, you avoid costly rewiring and accelerate commissioning.

Reliability and Maintenance

To maximize service life, inspect the front bezel periodically for seal integrity. Clean the resistive touchscreen with a soft, damp cloth; avoid solvents that may damage the surface. Because the panel has no moving parts, wear is minimal. However, environmental factors such as extreme temperature or vibration can affect performance. Therefore, mount the unit in a location that respects the operating specifications. By following these practices, you extend replacement cycles and reduce long-term costs. For lifecycle status, please verify current availability with AutoDCSTech before ordering.
