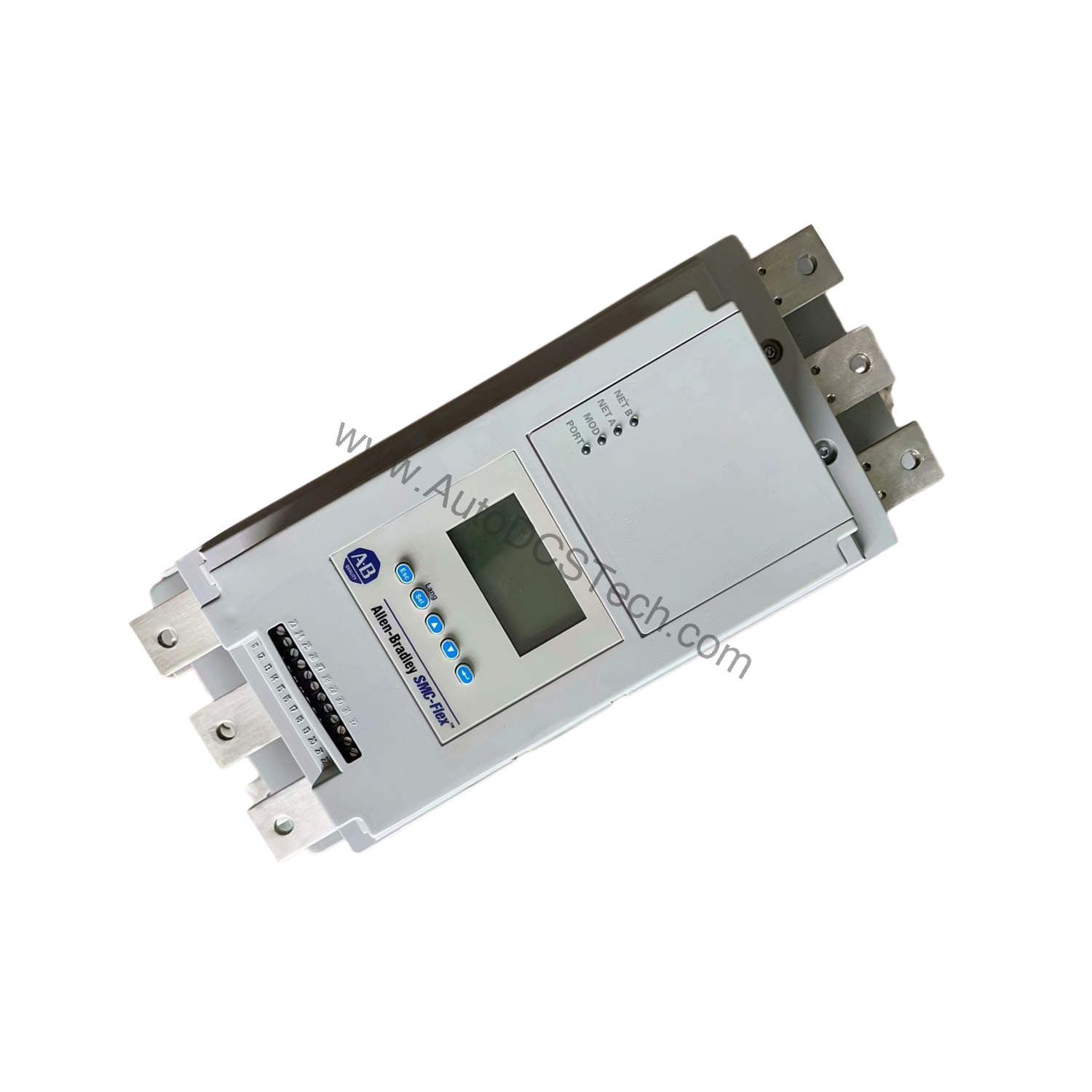

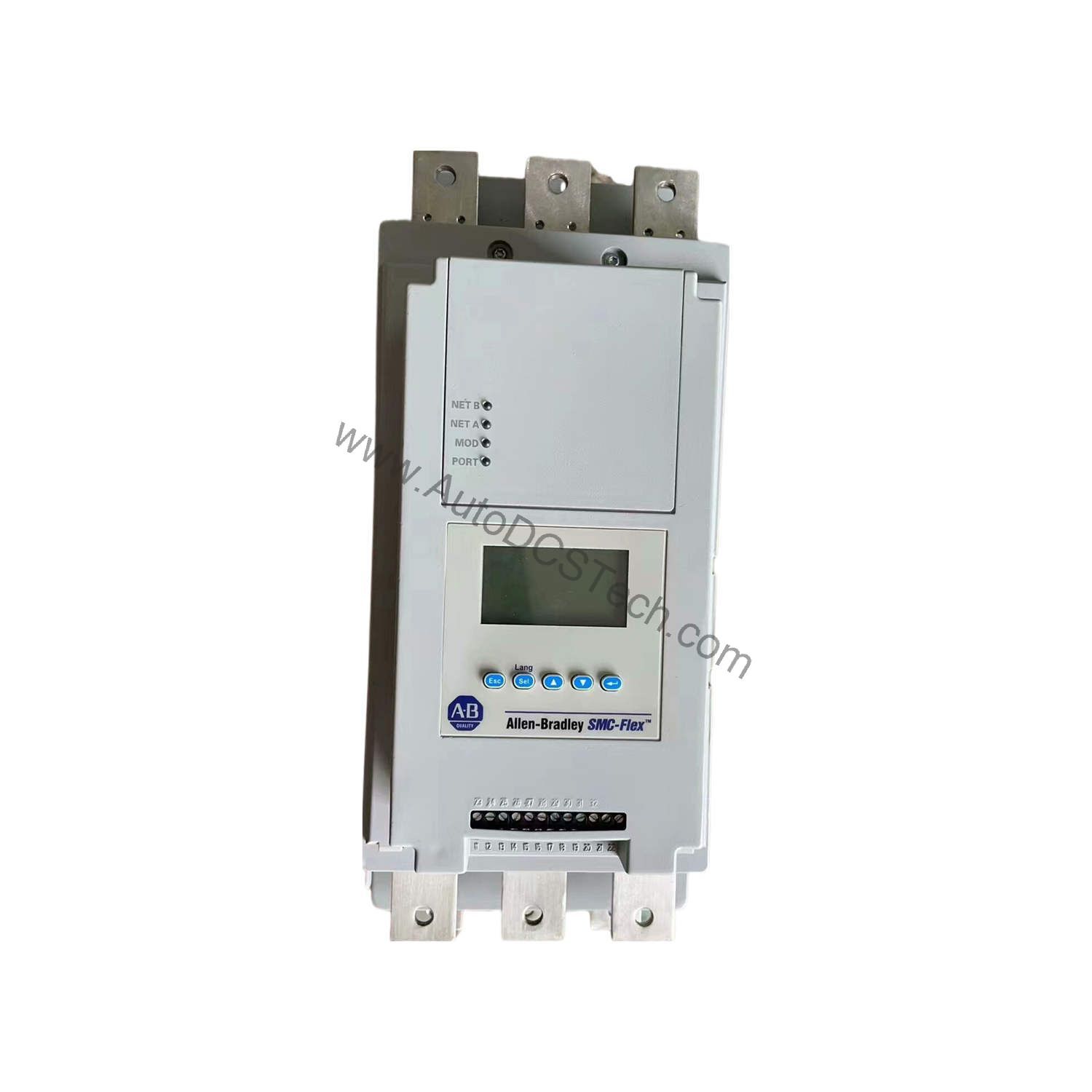

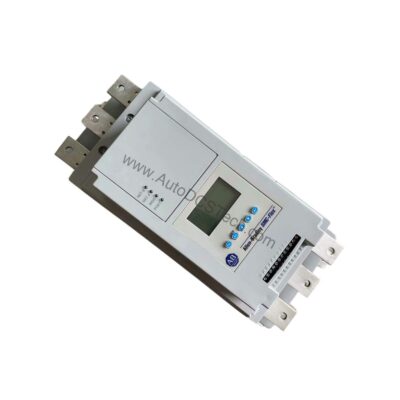

Allen-Bradley 150-F135NBDB SMC Flex Smart Motor Controller

Technical Specifications Breakdown

Key parameters for the 150-F135NBDB are listed below for quick reference:

Industry Applications

This controller is especially compatible for pump control, reducing fluid surges during start-up and stopping of centrifugal pumps. It also suits general motor starting in industrial settings where soft starting, current limit, or dual ramp modes are needed. The adjustable start time (0 to 30 seconds) and stop time (0 to 120 seconds) allow fine-tuning for various loads.

Installation and Setup Guidance

Before installation, verify that the motor Full Load Current (FLA) is within the controller's current range. Ideally, the soft starter should be slightly higher or up to 30% higher than the motor FLA. For motors with high starting current, consider additional margin. The 150-F135NBDB does not include terminal lugs; use appropriate lug kits for line and delta connections to ensure proper torque and avoid vibration or heat at wire connections. Mount the unit in a clean, dry location with adequate ventilation.

Maintenance and Reliability

Solid-state controllers like this one have fewer moving parts than electromechanical starters, reducing maintenance needs. Periodically inspect the unit for dust accumulation, loose connections, and signs of overheating. The LCD screen provides status information for quick diagnostics. No major maintenance is required beyond routine cleaning and connection checks.

Selection Guide and Purchasing Advice

When selecting a smart motor controller, match the current and voltage ratings to your motor. The 150-F135NBDB is rated for 135 A and 100 HP at 460VAC, making it suitable for many medium-horsepower applications. For pump control, its adjustable ramp times and soft stop feature help prevent water hammer. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech stocks genuine Allen-Bradley parts to keep your operations running.
