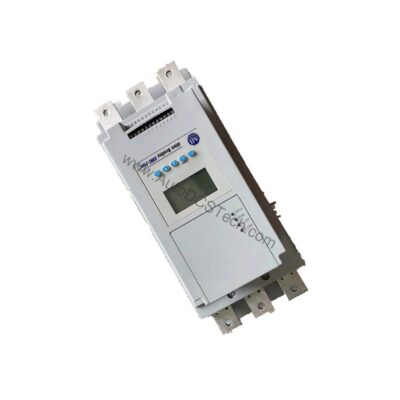

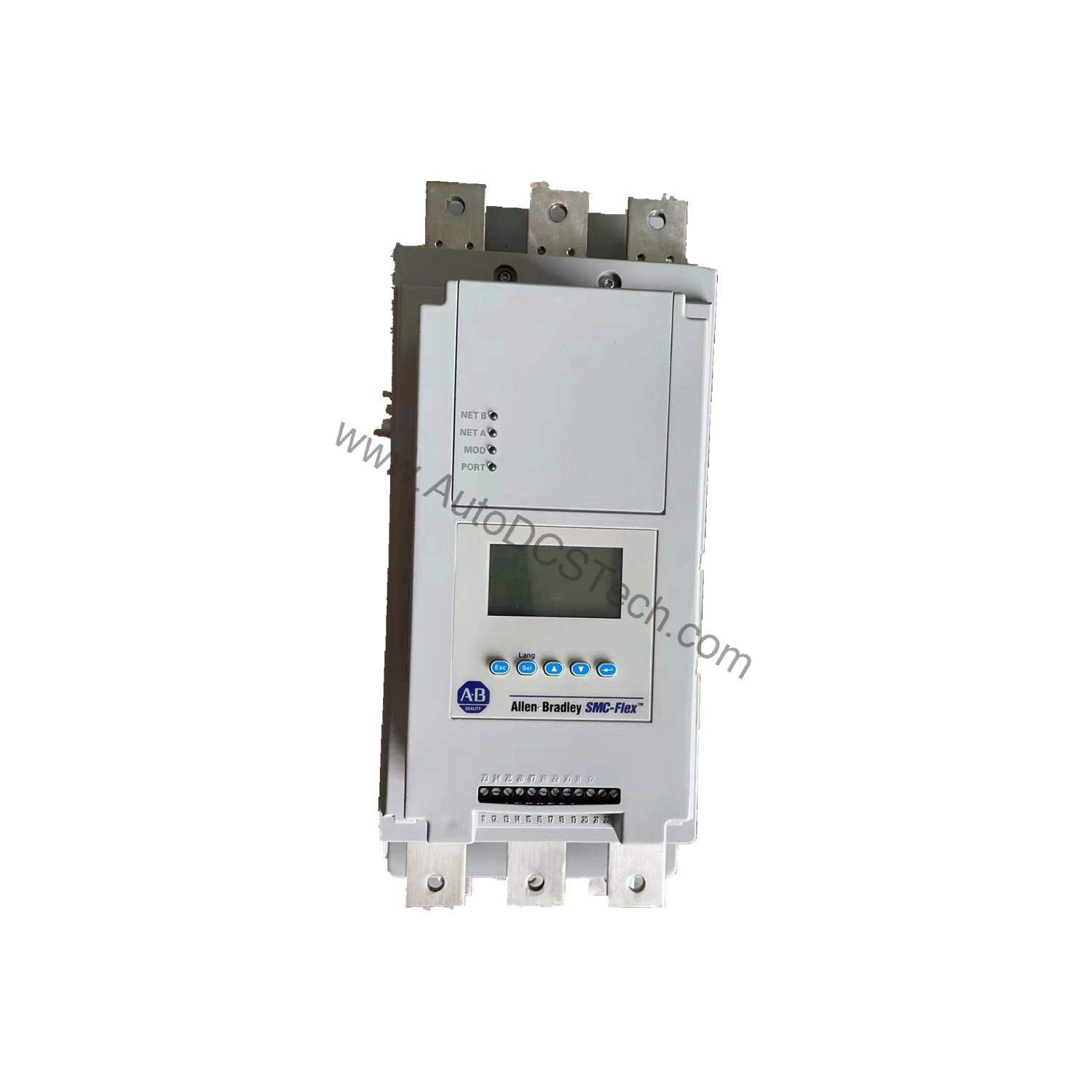

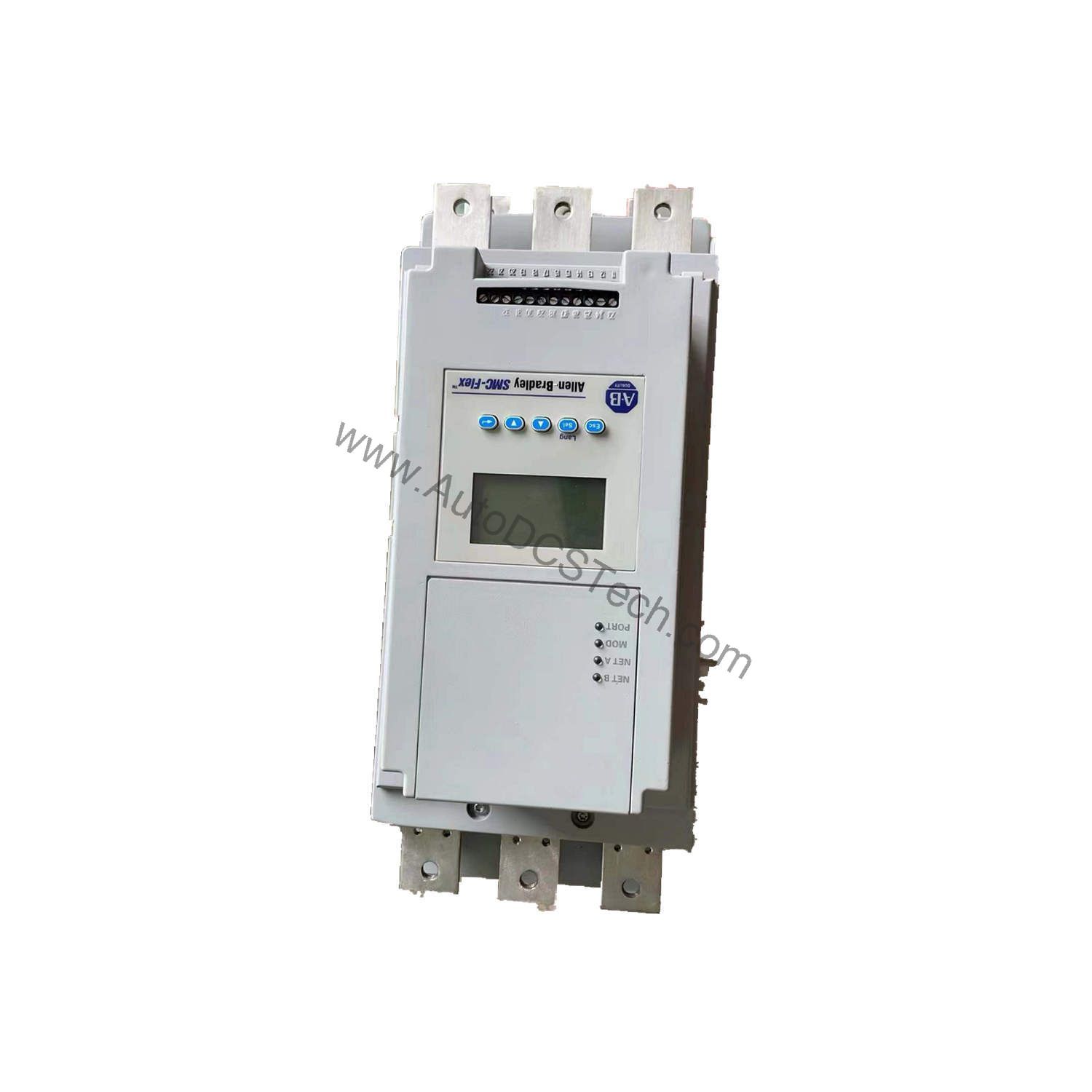

Allen-Bradley 150-F201NBDD Smart Motor Controller 201A 150HP

Technical Specifications Breakdown

Key parameters for the 150-F201NBDD are listed below for quick reference:

Industry Applications

In material handling systems, the 201 A rating supports large conveyors moving heavy loads. For pump and fan applications, the 150 HP capacity at 460 V AC ensures efficient operation of centrifugal equipment. The built-in braking control reduces mechanical wear and improves stopping accuracy, making it suitable for indexing and positioning tasks.

Installation & Setup Guidance

Mount the controller in a clean, dry enclosure that maintains ambient temperature between -5°C and 50°C. Ensure the supply voltage matches the 200/690 V AC range and that the control circuit receives 100...240V AC. Use properly sized conductors rated for 201 A continuous current. Verify that the three-phase power source operates at 50/60 Hz. Follow the wiring diagrams in the product manual for braking control connections.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. The IP2X rating protects against solid objects larger than 12.5 mm, but the unit is not sealed against moisture. Keep the enclosure clean and ensure ventilation openings remain unobstructed. Check torque on power terminals annually.

The Evolution of Motor Control

Industrial automation has progressed from simple electromechanical starters to intelligent, networked controllers that optimize energy use and process uptime. The Allen-Bradley 150-F201NBDD smart motor controller represents this evolution, combining robust power handling with advanced braking control for demanding three-phase applications. Designed for open panel mounting, this unit delivers reliable performance in manufacturing, pumping, and conveying systems.

Compatibility & Integration

The 150-F201NBDD integrates with standard three-phase systems at 460 V AC output and accepts a wide supply voltage range of 200/690 V AC. It complies with UL 508, cULus, CCC, EN/IEC 60947-1, EN/IEC 60947-4-2, CSA, and CE standards, ensuring broad acceptance in global installations.

Selection Guide & Purchasing Advice

When selecting a motor controller, verify that the current rating (201 A), power rating (150 HP), and voltage (460 V AC) match your motor nameplate. The braking control feature is essential for applications requiring rapid deceleration. AutoDCSTech stocks this Allen-Bradley unit and can assist with lifecycle status inquiries. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
