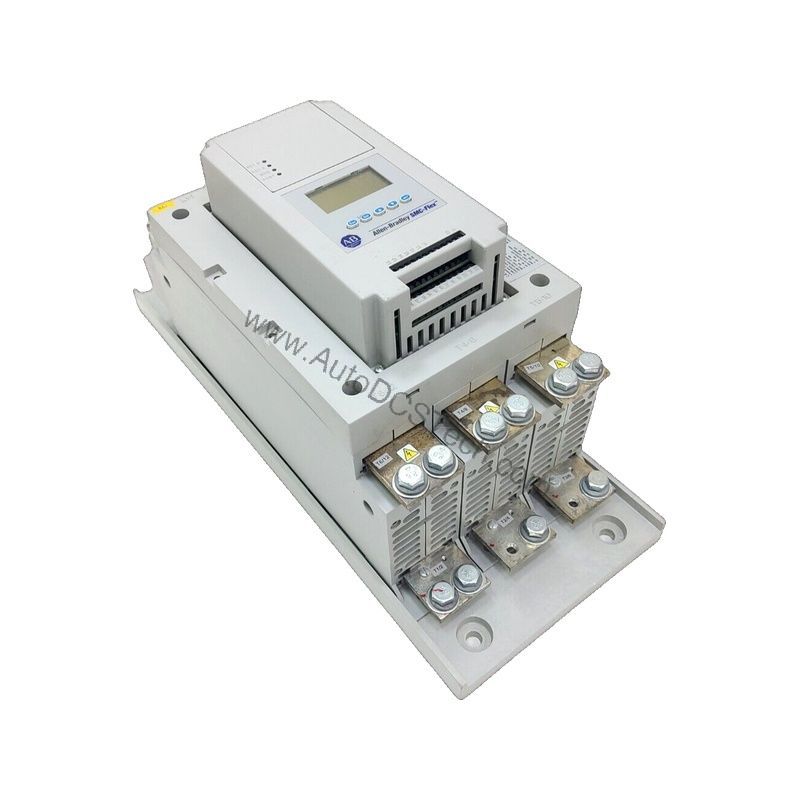

Allen-Bradley 150-F201NZD SMC-Flex Solid State Controller 201A

Technical Specifications Breakdown

Key parameters for the 150-F201NZD are listed below for quick reference:

Industry Applications

The 150-F201NZD is well-suited for heavy industrial environments such as pumping stations, conveyor systems, and compressors. The open enclosure allows integration into existing control panels, saving space and reducing installation complexity. By using this solid state controller, facilities can reduce inrush current by up to 600%, extending motor life and minimizing voltage dips on shared power lines.

Installation & Setup Guidance

When installing the 150-F201NZD, ensure the input line voltage matches your supply: 230-690V AC, 3-phase, 50 or 60 Hz. The control voltage (100-240V AC) must be supplied separately for the logic board. Mount the open enclosure in a clean, dry location with adequate airflow. Use appropriately rated fuses or circuit breakers per local codes. Connect the motor leads to the controller output terminals, and verify that the motor is compatible with the controller's start modes (seven built-in modes for resistive loads). Always follow the manufacturer's wiring diagram for safe operation.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. The 150-F201NZD includes an inbuilt electronic protective device against overload and a run bypass, reducing the need for external protection. Keep the enclosure free of contaminants. Check the control voltage supply and input line voltage stability. The durable design and solid state components provide long service life with minimal maintenance.

Optimizing Motor Starting with the Allen-Bradley 150-F201NZD

In industrial facilities, large motors often cause voltage sags and mechanical stress during direct-on-line starting. The Allen-Bradley 150-F201NZD SMC-Flex solid state controller solves this by providing controlled acceleration and deceleration, reducing wear on driven equipment and electrical disturbances. This robust unit is rated for demanding applications.

Compatibility & Integration

This controller works with both combination and non-combination motor starters. It is compatible with 3-phase squirrel cage induction motors and 6-lead motors. The programmable keyboard and LCD allow easy configuration of start modes and parameters. Integration into existing automation systems is straightforward via the control terminals.

Selection Guide & Purchasing Advice

When selecting the 150-F201NZD, confirm that your motor's full-load current does not exceed 201 A and that the horsepower rating matches your application (150 Hp at 460V AC). The open enclosure is best for panel mounting. For lifecycle status and availability, please verify with AutoDCSTech before ordering. Our team can help with cross-references and technical support.
