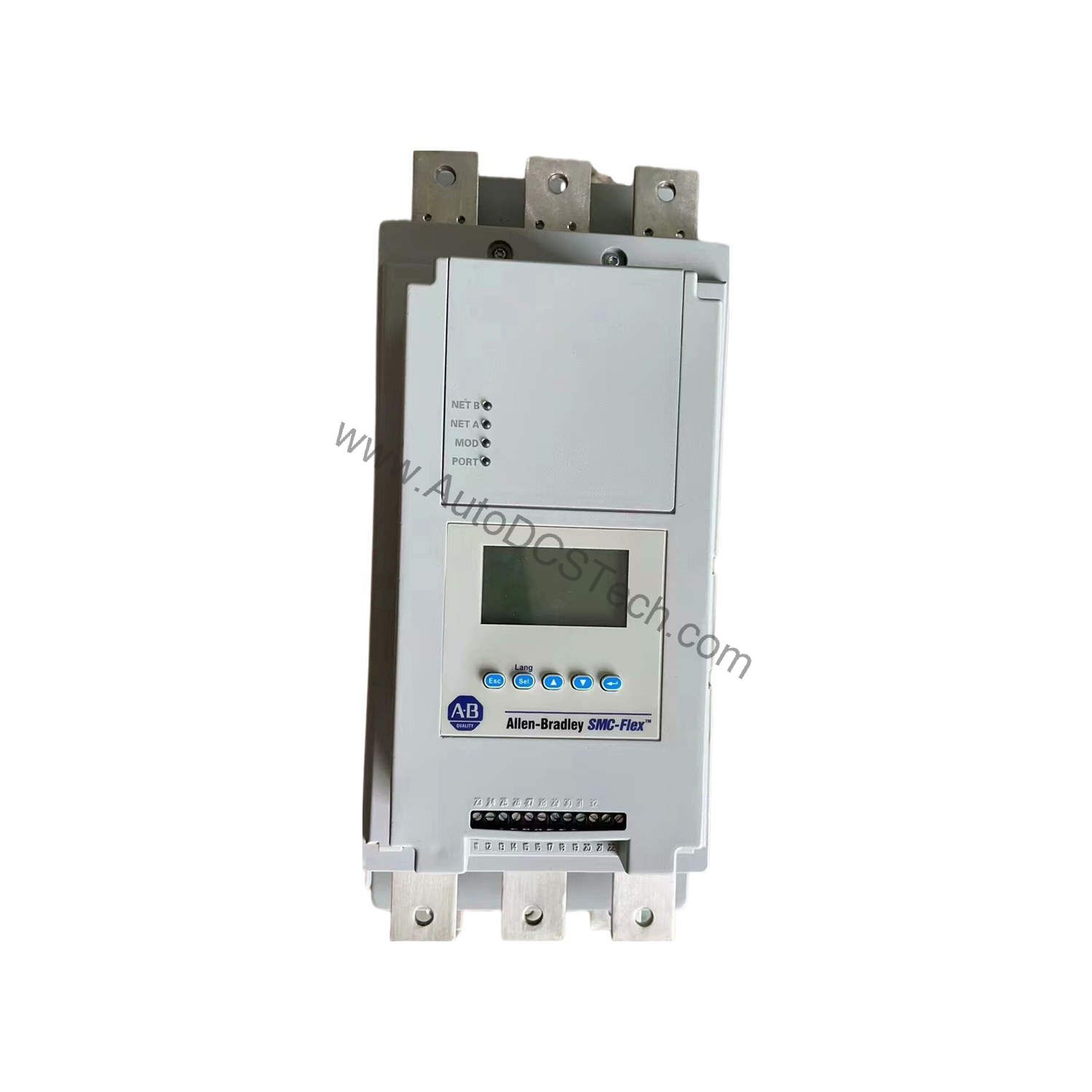

Allen-Bradley 150-F135NBDD SMC Flex Smart Motor Controller 135A

Technical Specifications Breakdown

Key parameters for the 150-F135NBDD are listed below for quick reference:

Application Versatility

This controller suits applications requiring precise motor management. For example, in conveyor systems, the soft start reduces belt jerk and product spillage. In pump applications, it minimizes water hammer by gradually ramping up pressure.

Installation and Setup Guidance

Mount the controller in a clean, dry location with adequate airflow. Connect line and load power terminals using M10 x 1.5 hardware per NEMA and CENELEC EN50 012 markings. Set the control voltage to 100...240V AC as required. Configure trip class (10, 15, 20, or 30) based on motor thermal characteristics. Use the integrated display for status monitoring and parameter adjustments.

Maintenance and Reliability

Periodically inspect the heatsink and fan for dust buildup. The hockey puck thyristor design provides robust thermal management. Ensure ambient temperature stays within -5 to 50 °C. The IP2X terminal covers protect against accidental contact. Check the RC snubber network integrity for DV/DT protection.

Reliable Motor Control with the 150-F135NBDD

Industrial motor starting often causes mechanical stress and electrical disturbances. The Allen-Bradley 150-F135NBDD SMC Flex Smart Motor Controller addresses these challenges with advanced soft starting and stopping capabilities. This controller reduces inrush current and torque spikes, extending equipment life and minimizing downtime.

Compatibility and Integration

The controller works with standard short-circuit protection devices like fuses and circuit breakers (Class CC/J/L). It supports PTC thermistor inputs for motor thermal protection. The auxiliary contacts (19/20, 29/30, 31/32, 33/34) are programmable NO/NC for integration with PLCs or relays.

Selection Guide and Purchasing Advice

When selecting a motor controller, verify your motor full-load current and voltage. The 150-F135NBDD handles line-connected motors up to 135A and delta-connected up to 234A. For lifecycle status and availability, contact AutoDCSTech. Our team can help confirm compatibility with your existing system.
