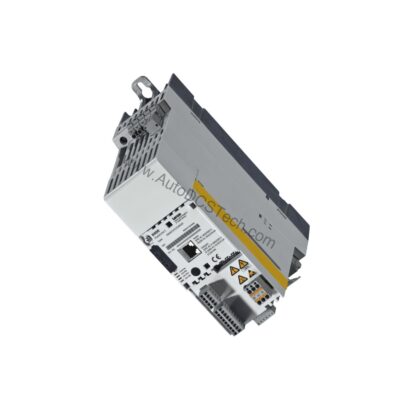

Lenze E84AVHCE3714SX0 8400 HighLine Inverter Drive 0.37kW

Technical Specifications Breakdown

Key parameters for the E84AVHCE3714SX0 are listed below for quick reference:

The 8400 HighLine series stands out with its integrated point-to-point positioning. This allows up to 15 selectable target positions, including their travel profiles, to be saved directly in the inverter. This feature is particularly useful for applications that require simple positioning without a separate controller.

Industry Applications

Dosing Drives and Feed Units

For dosing systems that need accurate, repeatable material delivery, the E84AVHCE3714SX0 offers sensorless vector control. This ensures consistent torque even at low speeds, which is critical for precise dosing. The integrated PID controller can also maintain a constant flow or pressure, reducing waste and improving product quality.

Palletisers and Material Handling

Palletisers often require smooth acceleration and deceleration to avoid damaging products. The S-ramp function of this drive provides gentle ramping, which reduces mechanical stress and extends equipment life. The flying restart circuit allows the drive to catch a spinning motor after a brief power interruption, minimising downtime.

Cross-Cutters and Rotary Tables

For applications that need accurate positioning with feedback, such as cross-cutters or rotary tables, the 8400 HighLine supports HTL incremental encoders (200 kHz). This enables closed-loop control, ensuring precise cut lengths or table positioning. The servo control for asynchronous motors further enhances dynamic response.

Installation & Setup Guidance

When installing the E84AVHCE3714SX0, ensure it is mounted inside a control cabinet that provides adequate cooling. The drive's operating temperature range is -10 °C to +55 °C, with derating above 45 °C. For installations in warm environments, consider the 2.5% per Kelvin derating to avoid overheating.

Before wiring, verify that the mains voltage matches the rated 3/PE 400 VAC. Use appropriate fuses and disconnect devices as per local electrical codes. The drive includes digital inputs/outputs (7/4), analog inputs/outputs (2/2), and a relay output, which can be configured via the freely interconnectable function blocks. An external 24 V supply is available for control logic, and an integrated brake chopper supports dynamic braking.

Maintenance & Reliability

Regular inspection is key to long service life. Check the cooling fans and air vents for dust accumulation, as blocked airflow can cause thermal derating or failure. Periodically verify that all power and control connections are tight and free from corrosion. The drive's IP20 rating means it is not protected against water ingress, so keep the cabinet sealed and clean.

The E84AVHCE3714SX0 includes a DC brake function and brake management for low wear, which is useful for holding loads. The VFC eco energy-saving function can reduce energy consumption in variable torque applications like fans and pumps. These features not only improve efficiency but also reduce operational costs.

Lenze E84AVHCE3714SX0 8400 HighLine Inverter Drive

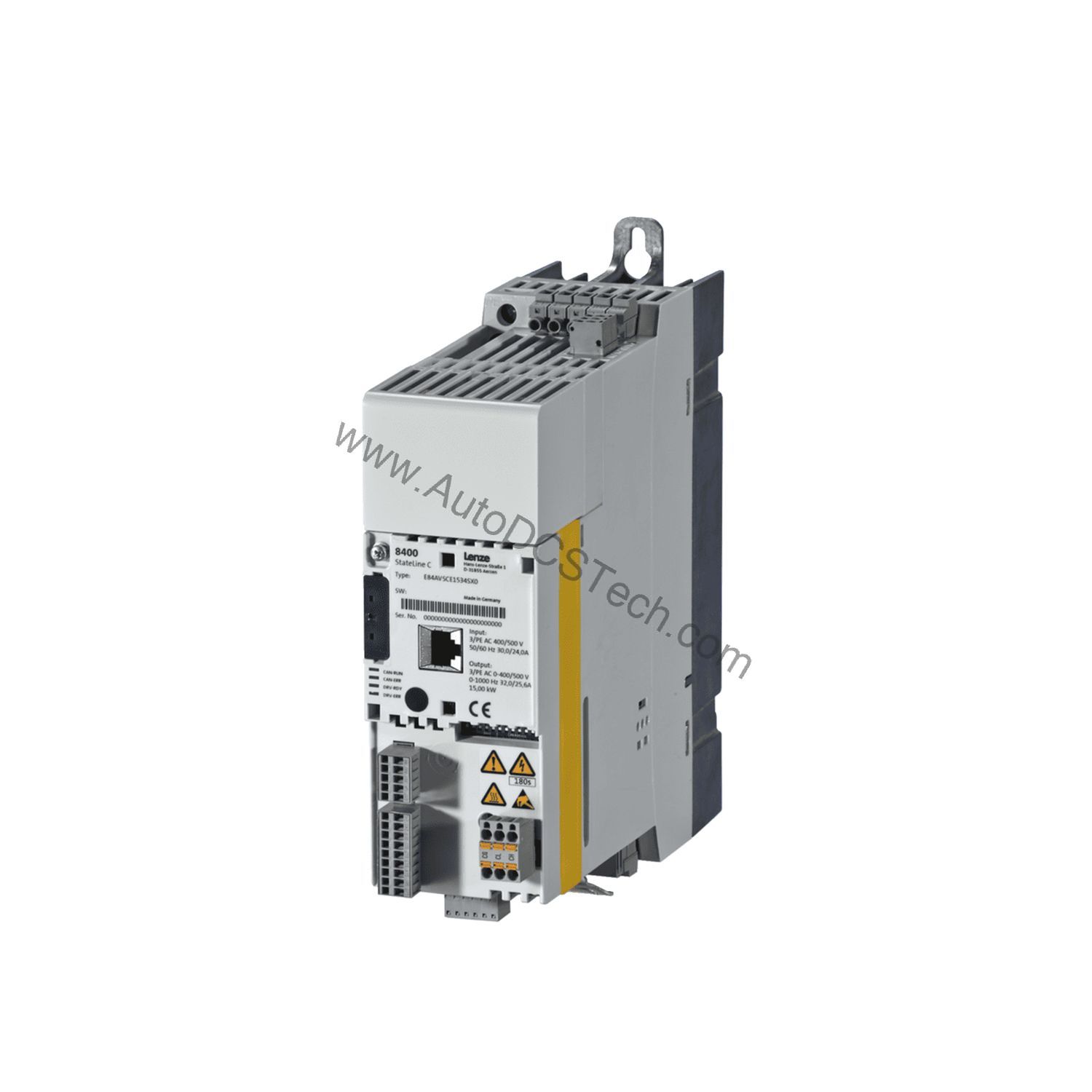

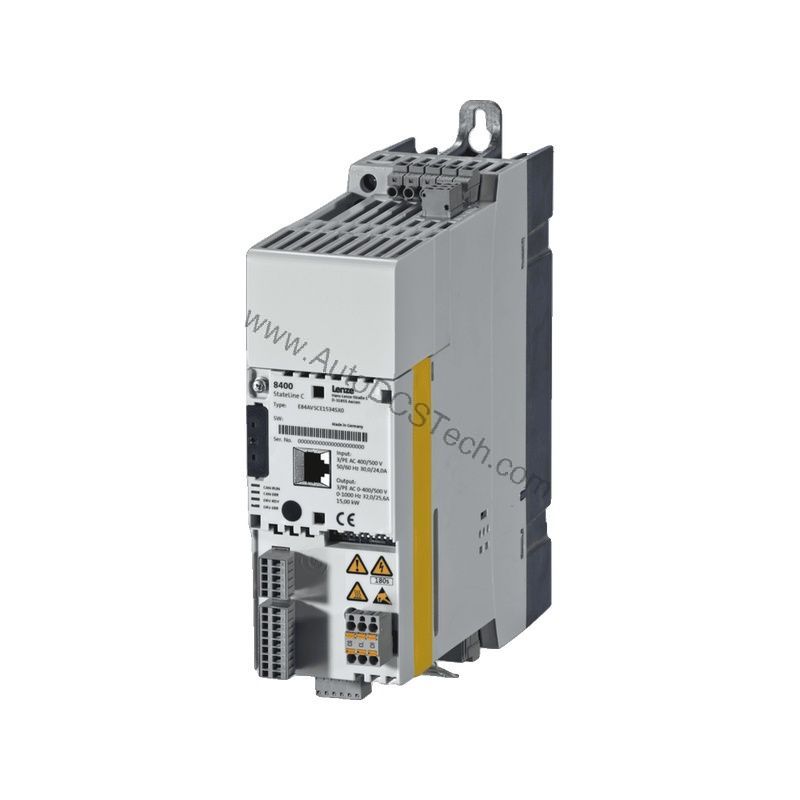

For maintenance engineers, the priority is a drive that is both reliable and easy to service. The Lenze E84AVHCE3714SX0 is a compact frequency inverter from the 8400 HighLine series, designed to deliver precise motor control in a space-saving IP20 enclosure. This unit is rated at 0.37 kW (0.5 HP) and is intended for three-phase 400/500 VAC mains, making it a versatile choice for many industrial applications.

Compatibility & Integration

The 8400 HighLine offers flexible communication options. It has a DIP switch for CANopen on board, and a slot for optional EtherCAT, EtherNet/IP, PROFIBUS, or PROFINET modules. This allows easy integration into existing automation networks. The L-force diagnostics interface and memory modules simplify commissioning and troubleshooting.

For applications that require positioning without feedback, the drive is well-suited for dosing drives, palletisers, and feed units. The sensorless control of synchronous motors (SLPSM) adds further versatility.

Selection Guide & Purchasing Advice

When selecting a replacement or new drive, confirm that the power rating and voltage match your motor. The E84AVHCE3714SX0 is a 0.37 kW / 0.5 HP unit for 400 VAC systems. Check the output current (1.3 A) against your motor's full-load current to ensure adequate capacity.

At AutoDCSTech, we stock genuine Lenze drives and can help you verify compatibility. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can also advise on alternative models if this unit is discontinued.

Troubleshooting & Common Issues

If the drive fails to start, first check the mains supply and fuses. Ensure the enable signal is present on the correct digital input. If the drive trips on overload, verify that the motor is not mechanically jammed and that the load does not exceed the drive's rated output current (1.3 A). The overload capability (150% for 60 s, 200% for 3 s) provides short-term headroom, but continuous operation above rated current will cause thermal trips.

If positioning errors occur, confirm that the feedback encoder (if used) is properly connected and that the HTL signal is within the 200 kHz limit. For sensorless operation, check that the motor parameters are correctly set in the drive. The integrated PID controller may require tuning to avoid oscillation.

For persistent issues, use the L-force diagnostics interface to read fault codes. The freely interconnectable function blocks allow custom logic to be implemented, but ensure that any modifications are tested in a safe environment. Always disconnect power before servicing the drive.
