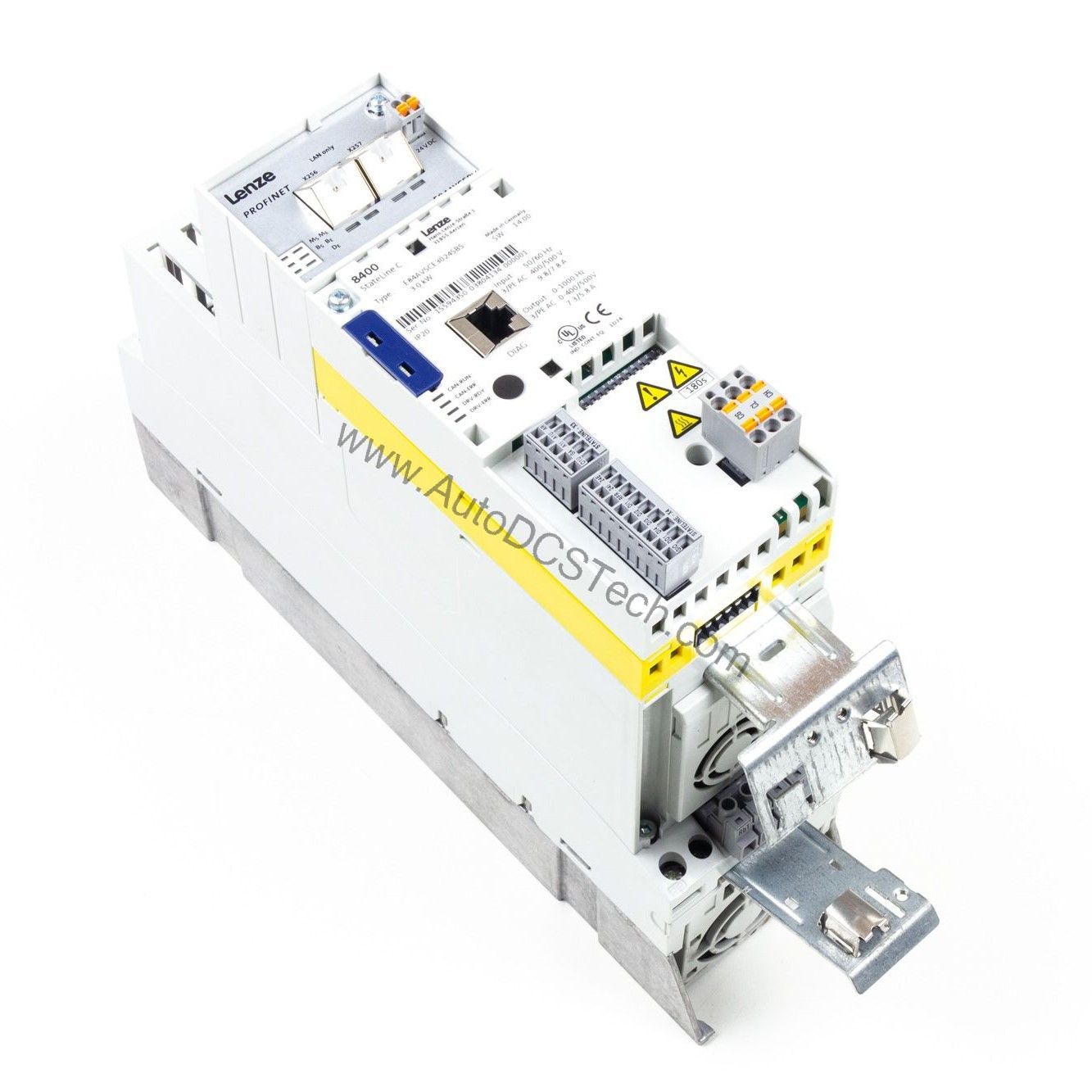

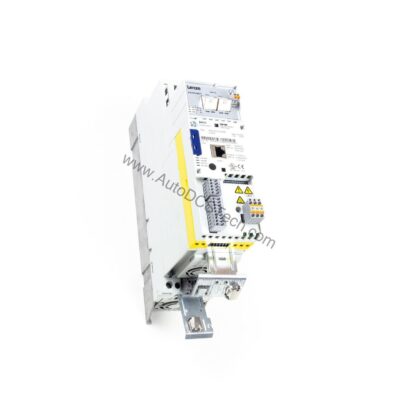

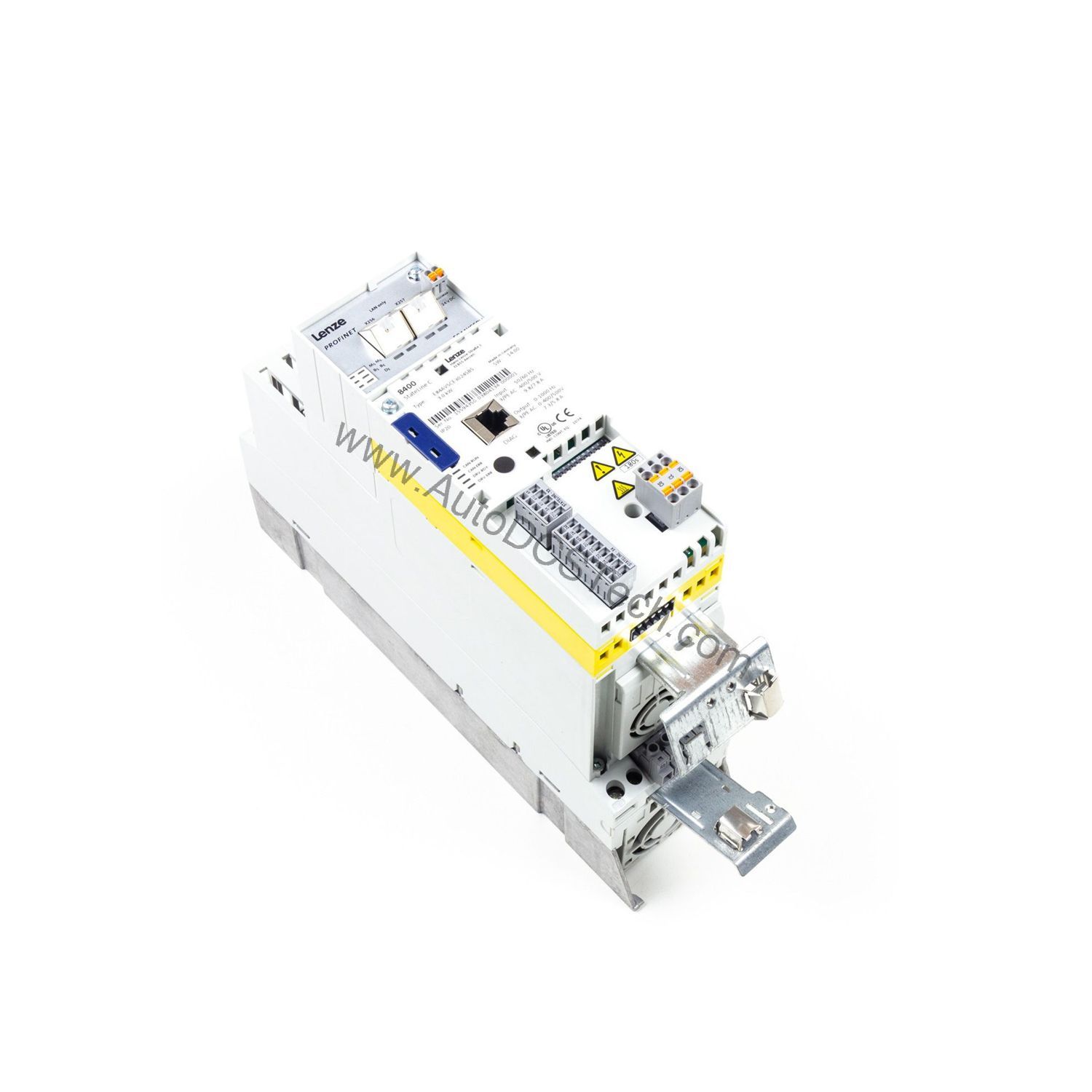

Lenze E84AVSCE3024SBS 8400 StateLine C Vector Inverter 3kW

Technical Specifications Breakdown

Key parameters for the E84AVSCE3024SBS are listed below for quick reference:

The E84AVSCE3024SBS is engineered for speed control with simple motion control, making it a versatile choice across several industries. In transverse materials handling equipment and palletizers within intralogistics, the drive ensures precise, reliable operation, reducing downtime. For extruders in the plastics industry, the vector control provides consistent torque, critical for maintaining product quality. In filling systems for packaging, the integrated brake management and VFC eco energy-saving function contribute to lower operational costs and improved efficiency.

Installation & Setup Guidance

Proper installation is key to maximizing the performance of this inverter. The unit is designed for standard industrial environments (IE33 according to IEC 60721-3-3), so ensure the mounting location is clean, dry, and well-ventilated. The slim design (reduced device dimension) allows for space-saving installation in control cabinets. When wiring, always follow the provided connection diagrams and adhere to local electrical codes. For the 400/500 V AC, 3-phase models, verify that the supply voltage matches the drive's voltage class before energizing. The integrated STO safety function must be correctly integrated into your machine's safety circuit to meet functional safety requirements.

Maintenance & Reliability

To ensure long-term reliability, periodic inspections are recommended. Check for dust accumulation on the heatsink and fans, as this can impair cooling. Verify that all terminal connections remain tight, especially after initial commissioning. The ambient conditions (standard industrial environment) suggest that the drive is suitable for most factory floors, but avoid exposure to excessive humidity or corrosive gases. The integrated brake management reduces mechanical wear, extending the lifespan of your system.

Compatibility & Integration

The E84AVSCE3024SBS supports multiple communication protocols, including CANopen, EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, and PROFINET. This flexibility allows seamless integration into existing automation architectures. The drive also provides 5 digital inputs, 1 digital output, 1 analog input, 1 analog output, and 1 NO/NC relay, enabling straightforward connection to PLCs and sensors. The DC bus (for 400-V types) facilitates shared DC operation, saving energy in multi-axis applications.

Selection Guide & Purchasing Advice

When selecting a drive for your application, consider the power rating, voltage class, and safety requirements. The E84AVSCE3024SBS offers a balanced combination of features for 3 kW applications in 400/500 V systems. At AutoDCSTech, we stock this model and provide expert support to help you choose the right component. Please verify current lifecycle status and availability with AutoDCSTech before ordering, as product availability may vary.

Troubleshooting & Common Issues

If the drive fails to start, first check the supply voltage and ensure the STO circuit is closed. If the motor runs erratically, verify the motor parameters and check for loose connections. For communication issues, confirm that the correct protocol is selected and the network wiring is terminated properly. Always consult the user manual for detailed fault codes and their remedies. For safety-related faults, never bypass the STO function; instead, inspect the safety circuit and consult a qualified engineer.
