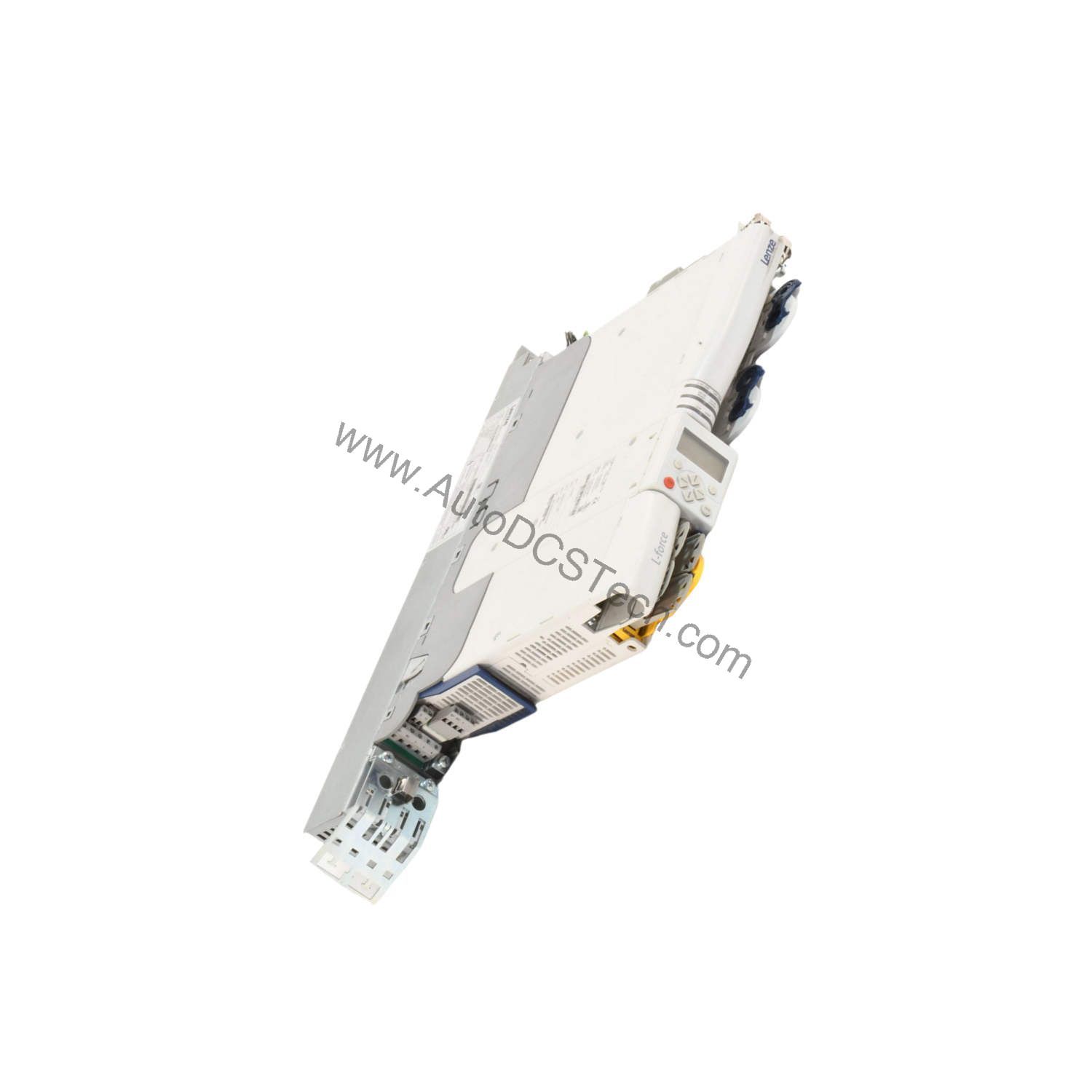

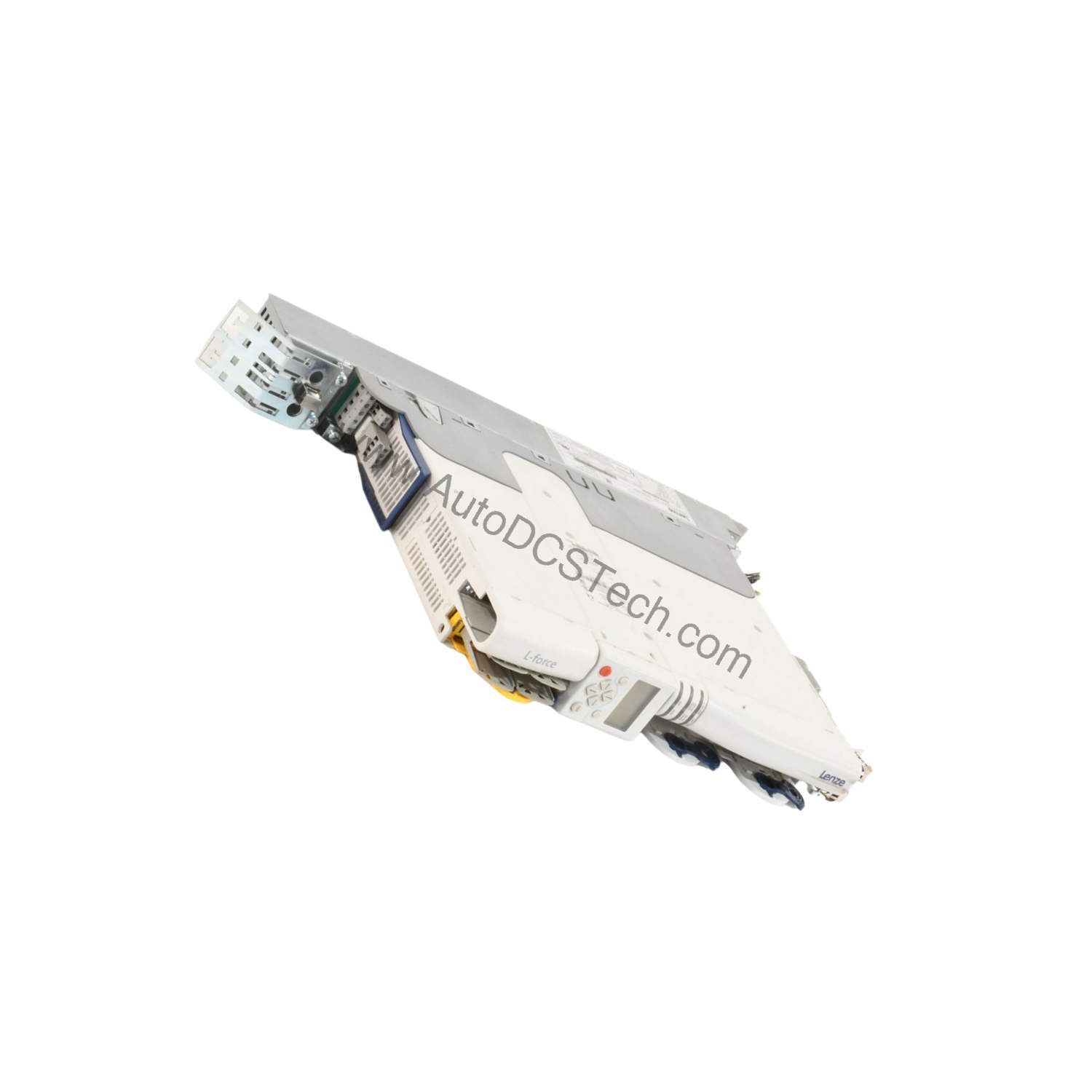

Lenze E94ASHE0044 Series 9400 Drive – 0.8 kW, 3-Phase, IP20

Technical Specifications Breakdown

Key parameters for the E94ASHE0044 are listed below for quick reference:

Engineered for Demanding Applications

The E94ASHE0044 is not just a motor controller; it is a complete motion solution. The 8 kHz switching frequency ensures smooth motor operation with reduced audible noise. With an overload capacity of 150% for 60 seconds, this drive handles sudden load spikes without tripping, minimizing downtime in critical processes.

Installation and Setup Guidance

Proper installation is key to maximizing the life of your drive. Mount the E94ASHE0044 in a clean, dry cabinet that allows adequate airflow for the forced ventilation system. Maintain the ambient temperature between 0°C and 40°C to prevent overheating. Ensure that the supply voltage matches one of the rated inputs (230, 400, or 500 VAC) and that the motor is correctly wired for the corresponding output voltage. Follow the manufacturer's manual for detailed wiring diagrams and parameter settings.

Maintenance and Reliability

Regular maintenance keeps your drive running reliably. Inspect the cooling fan and air filters monthly to prevent dust buildup that can impair forced ventilation. Check all power and control connections for tightness every six months. Because the unit is IP20-rated, it is not sealed against moisture; keep it away from water or condensation. If the drive is used in a harsh environment, consider installing a higher-rated enclosure around it.

Optimize Your Machinery with the Lenze E94ASHE0044

Industrial automation demands drives that deliver precise control without compromising reliability. The Lenze E94ASHE0044 from the Series 9400 meets these needs with a rated output power of 0.8 kW. This versatile drive handles three-phase input voltages of 230, 400, or 500 VAC at 50/60 Hz, making it a flexible choice for global machinery. Whether you are retrofitting an existing line or designing a new system, this module offers the performance and adaptability you require.

• Packaging Machinery: The drive's precise speed and position control enable accurate registration and cutting, improving throughput and reducing waste.
• Material Handling: Torque control ensures smooth starts and stops for conveyors, protecting fragile products and extending equipment life.
• Textile Production: High-frequency output supports rapid cycling, while the IP20 enclosure protects against dust in typical factory environments.

Compatibility and Integration

This drive offers flexible communication options, including CANopen, PROFIBUS, and EtherCAT, depending on the module configuration. This allows seamless integration into existing PLC or PC-based control systems. The support for incremental encoders, resolvers, and absolute encoders gives you the freedom to choose the feedback device that best suits your application's accuracy requirements.

Selection Guide and Purchasing Advice

When selecting a drive, verify that the power rating and voltage match your motor. The E94ASHE0044 is a compact, cost-effective solution for applications up to 0.8 kW. At AutoDCSTech, we stock genuine Lenze parts and can help you confirm the correct configuration for your needs. Contact our team to check availability and ensure this module is the right fit for your system.

Troubleshooting and Common Issues

• Drive does not start: Check that the input voltage is present and within the rated range. Verify that the enable signal is active and that no fault codes are displayed.
• Overcurrent trips: Inspect the motor and cabling for short circuits or ground faults. Confirm that the motor's current rating does not exceed the drive's output current.
• Communication errors: Ensure that the fieldbus wiring is correct and that the node address and baud rate match the master settings.
• Overheating: Clean the cooling fan and ensure that the ambient temperature is below 40°C. Check that the drive is not mounted too close to heat sources.

For persistent issues, consult the Lenze Series 9400 manual or contact a qualified service engineer. Always disconnect power before performing any maintenance.
