Product Overview

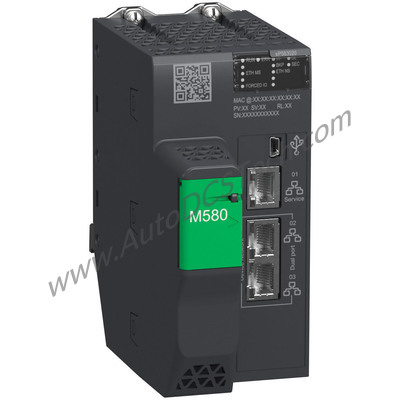

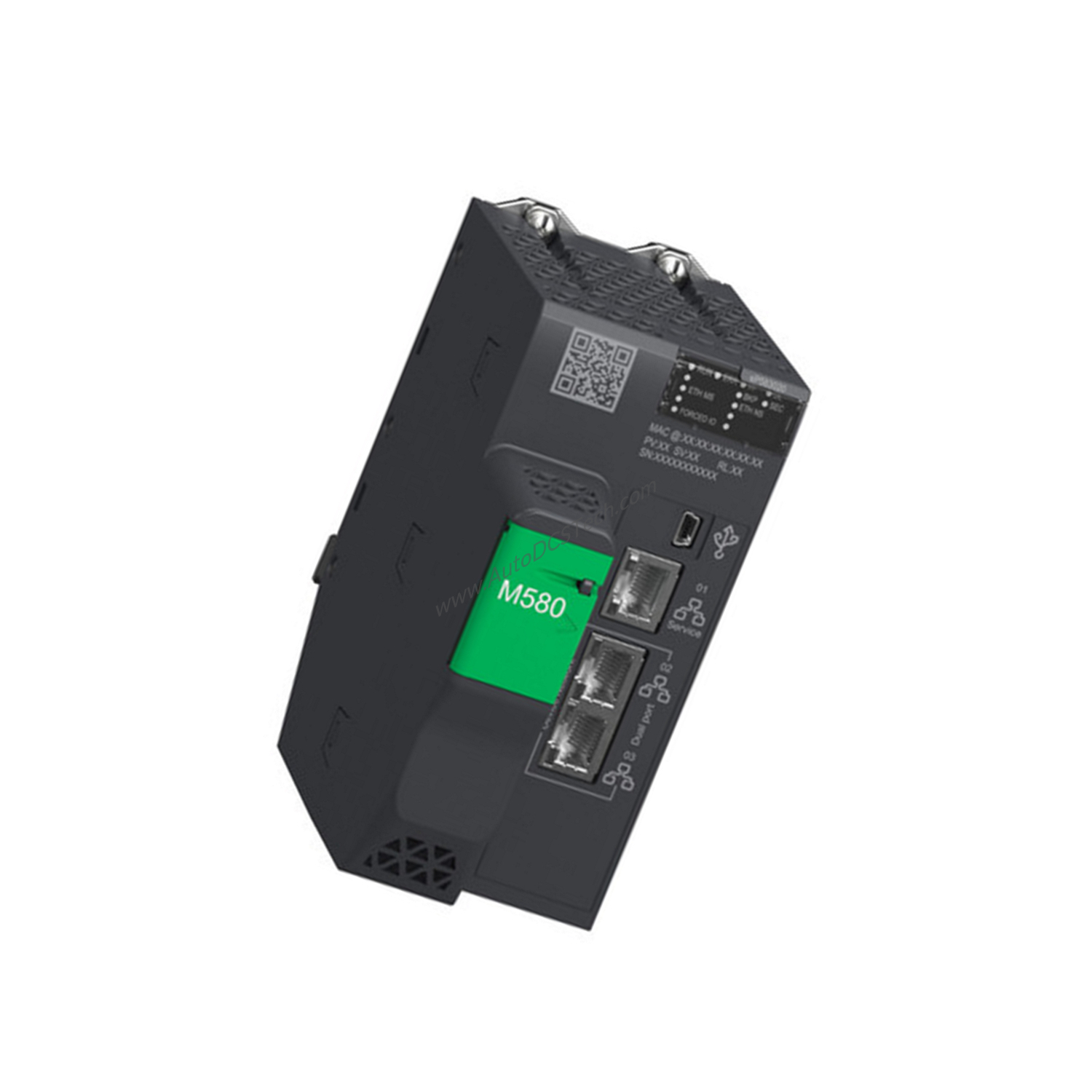

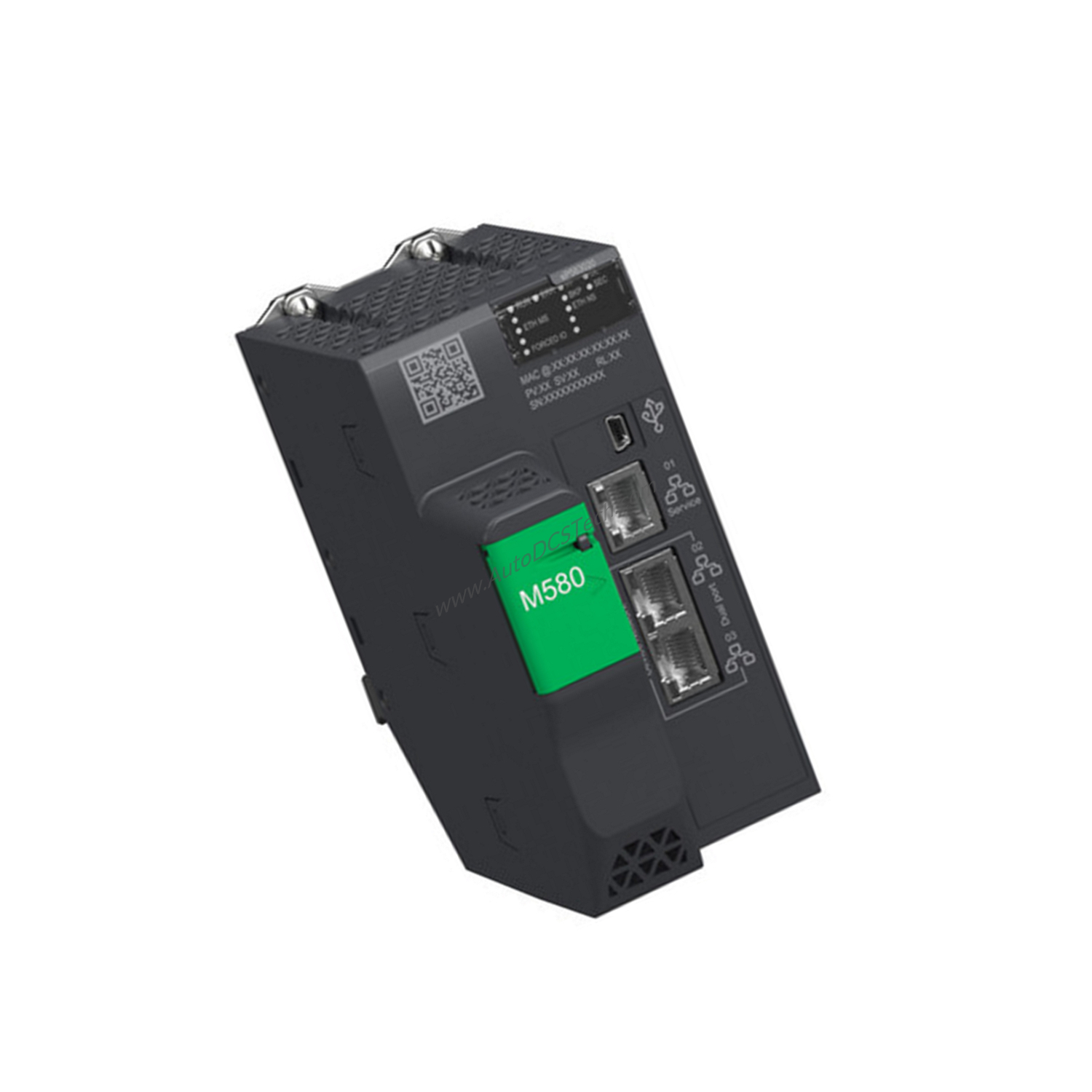

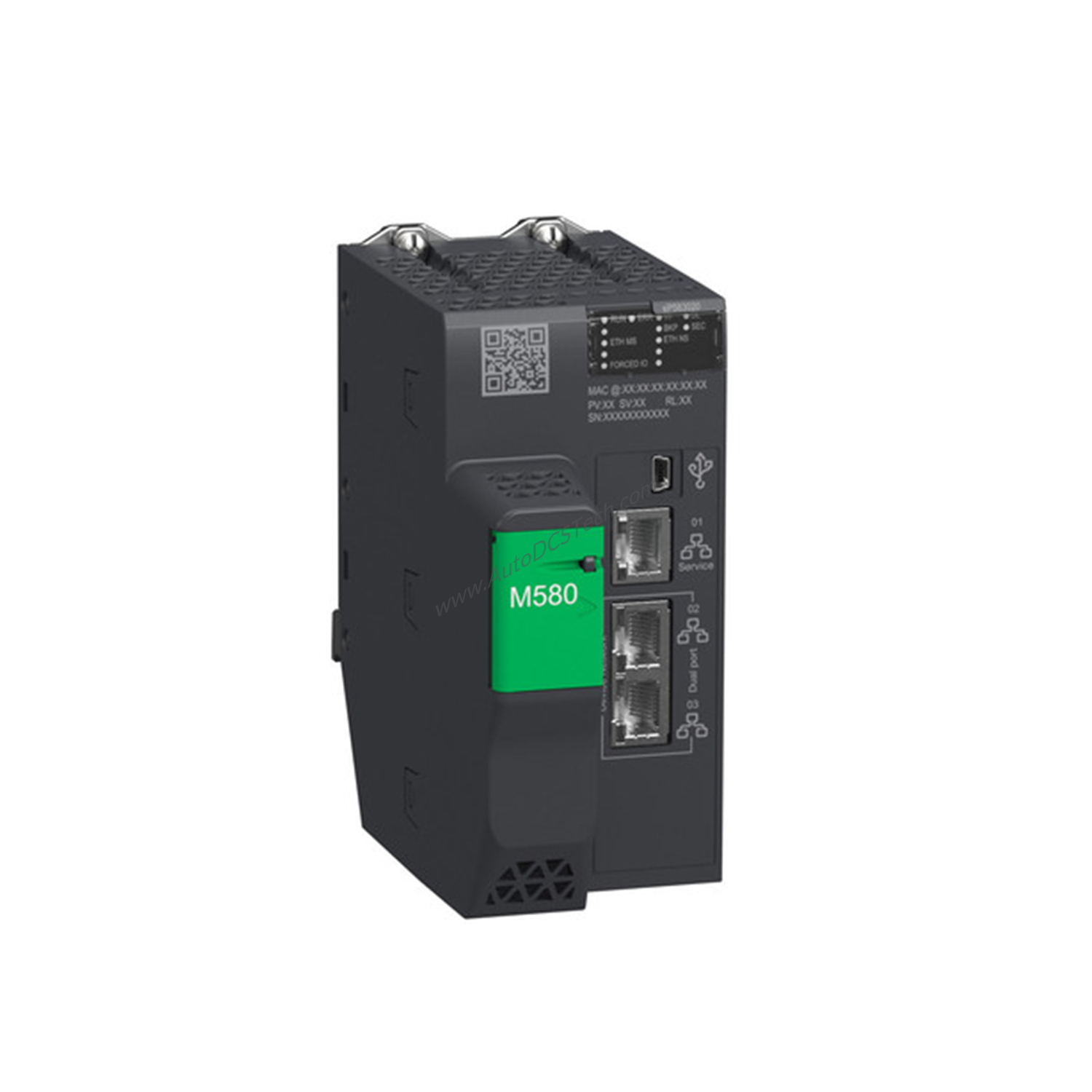

When your control system demands high reliability and robust performance, the Schneider BMEP583020 Processor module delivers. As part of the Modicon M580 family, this standalone processor is designed for demanding industrial automation environments. It supports up to 125 Ethernet devices and 8 local I/O racks, handling 3072 discrete I/O and 768 analog I/O points. With a 12 MB program memory and integrated cybersecurity features, it meets the needs of modern, connected plants.
Technical Specifications Breakdown
The BMEP583020 offers a balanced set of specifications for complex automation tasks. Its program memory of 12 MB provides ample space for large control programs. The processor handles 30 Kinst/ms for a mix of 65% Boolean and 35% fixed arithmetic, and 40 Kinst/ms for 100% Boolean operations, ensuring fast logic execution. Current consumption is 295 mA at 24 V DC, and the module has an MTBF of 775,000 hours, indicating long-term reliability. It operates in ambient temperatures from 32 to 140 °F (0 to 60 °C) and can be stored from -40 to 185 °F (-40 to 85 °C). The IP20 degree of protection suits cabinet installation.
Industry Applications
In process control applications, the BMEP583020 excels at managing multiple loops and analog I/O. Its support for 768 analog I/O points makes it ideal for continuous processes like chemical or water treatment plants. For discrete manufacturing, the 3072 digital I/O capacity handles high-speed machine control. The processor's cybersecurity features, including Achilles certification and embedded firewall, are critical for industries requiring secure network communication, such as energy and utilities.
Installation & Setup Guidance
When installing the BMEP583020, ensure the rack provides internal power supply as per specifications. Mount the module in a suitable cabinet with IP20 protection. Connect the Ethernet TCP/IP service port and device network ports for communication. Use the USB mini B port for local programming. Verify that the ambient temperature remains within 32 to 140 °F (0 to 60 °C) and that relative humidity stays between 5% and 95% at 131 °F (55 °C) without condensation. The module's status LEDs (RUN, ERR, I/O, DL, BACKUP, ETH MS, Eth NS) help confirm proper operation during startup.
Maintenance & Reliability
With an MTBF of 775,000 hours, the BMEP583020 offers exceptional reliability, reducing unplanned downtime. Regular inspection of the module's LEDs and network status can catch issues early. The processor's robust design withstands vibration of 3 gn and shock of 30 gn, making it suitable for harsh industrial environments. For extended life, ensure the operating altitude does not exceed 6561.68 ft (2000 m) without derating. The module's cybersecurity features, such as port hardening and security log, help maintain system integrity over time.
Compatibility & Integration
The BMEP583020 integrates seamlessly with the Modicon M580 ecosystem. It supports up to 8 local I/O racks and 128 distributed devices. Communication is handled via one Ethernet TCP/IP service port and two Ethernet TCP/IP device network ports. The processor works with AS-Interface modules (up to 8) and Ethernet communication modules (up to 6). Application-specific I/O includes serial link, motion control, HART, SSI encoder, counter, accurate time stamping, and process control. The DIO scanner service enables efficient data exchange.
Buying Guide
Before purchasing the BMEP583020, verify that your system requires a standalone processor with 12 MB program memory. Check compatibility with your existing Modicon M580 racks and I/O modules. The module weighs 1.872 lb (0.849 kg) and comes in a package of 1 unit. For current availability and lifecycle status, contact SpareTechPLC, your trusted supplier for industrial automation parts. We offer fast shipping and genuine Schneider products.
Frequently Asked Questions
Q: What is the program memory size of the BMEP583020?
A: The BMEP583020 has 12 MB of integrated RAM for program memory, plus 1024 kB of data memory and 10 kB of system memory.
Q: How many Ethernet devices can the BMEP583020 support?
A: It supports up to 125 Ethernet devices on the device network.
Q: What cybersecurity certifications does the BMEP583020 hold?
A: It is Achilles certified and includes features like DoS prevention, IPSec, SNMP logging, Syslog protocol support, transport layer security, audit trail, embedded firewall, firmware signature, password protection, port hardening, secure communication (HTTPS), and security log.
Q: What is the operating temperature range for the BMEP583020?
A: The ambient air temperature for operation is 32 to 140 °F (0 to 60 °C).
