Product Overview

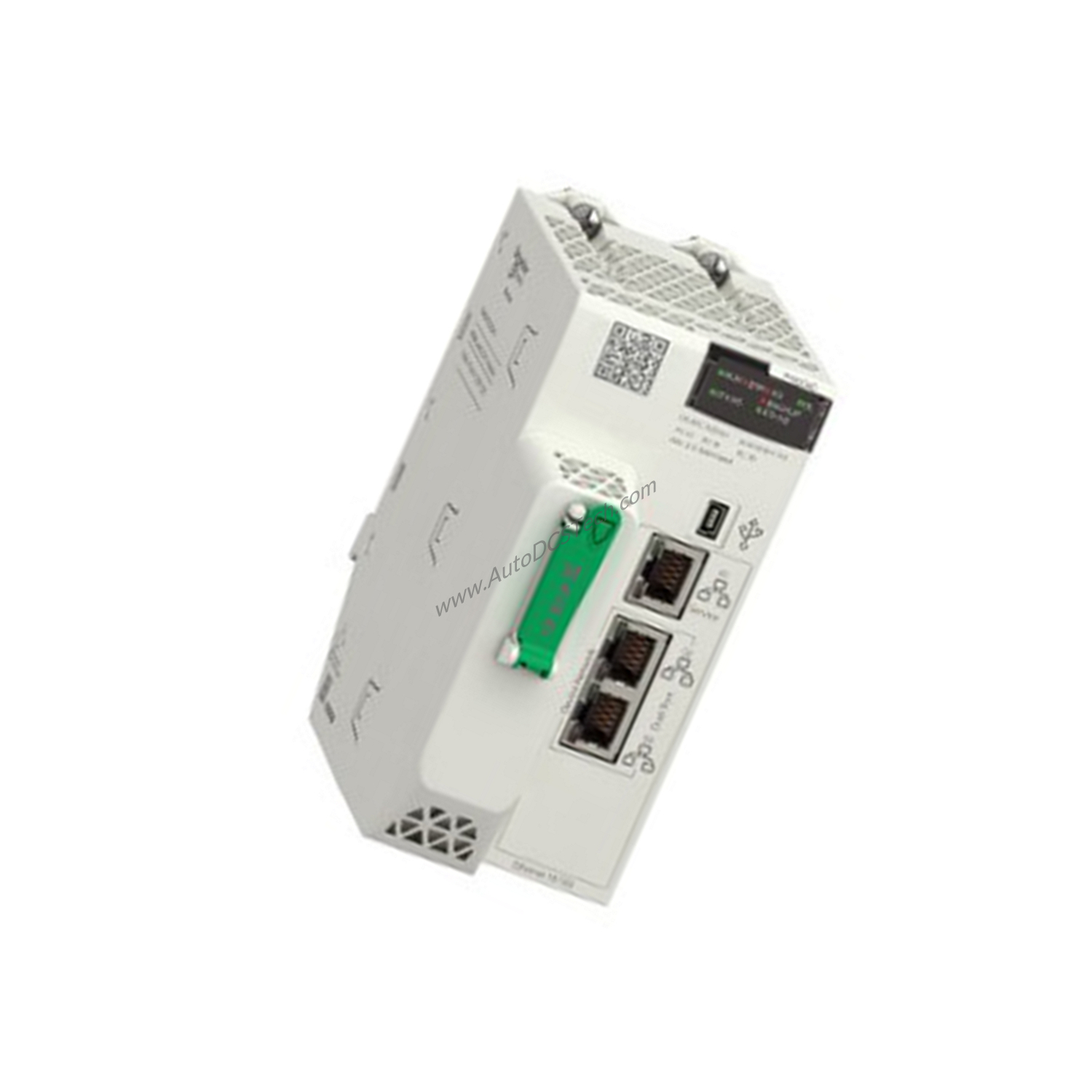

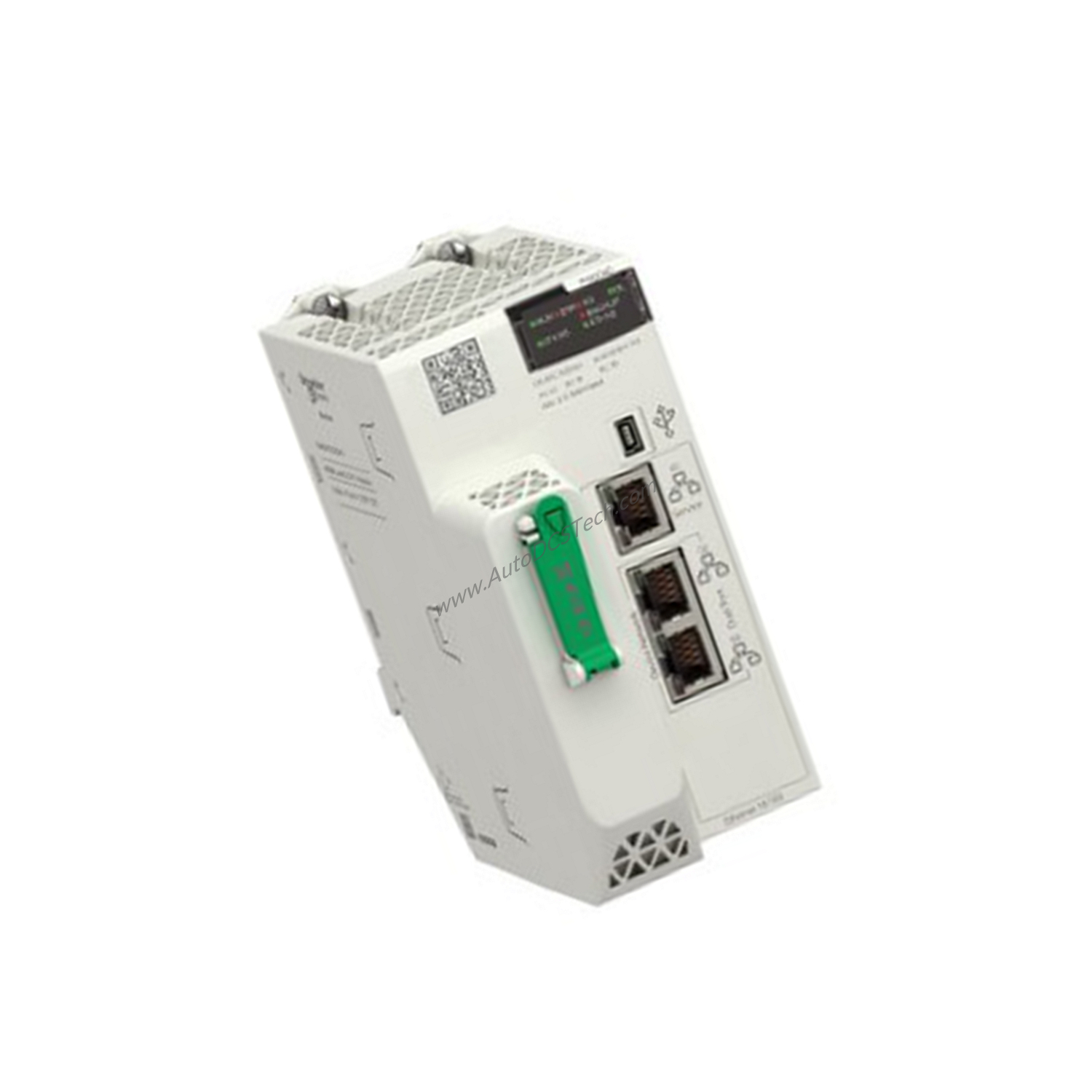

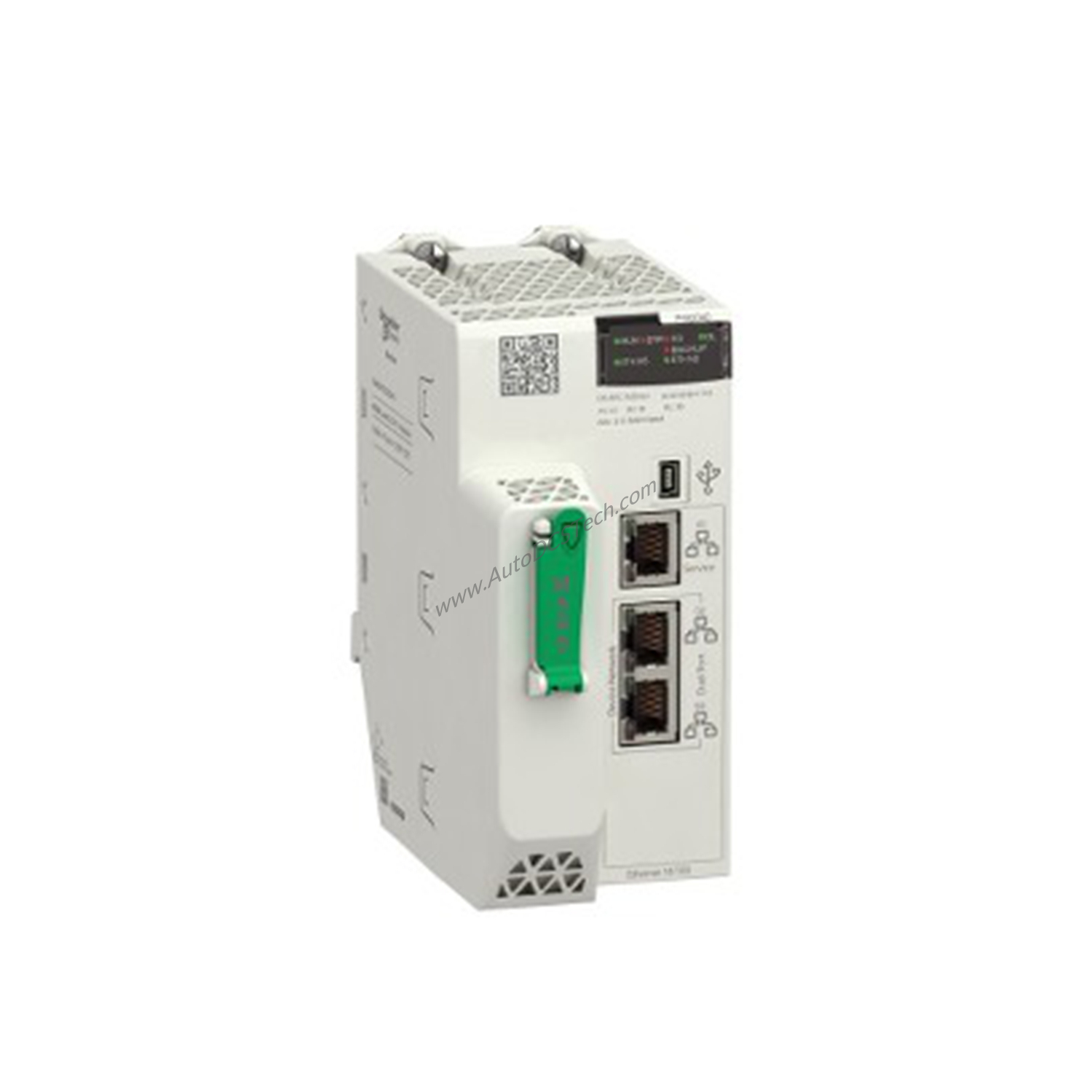

The Schneider BMEP582040 is a standalone processor module from the Modicon M580 family, designed for demanding industrial automation applications. It offers 8MB of program memory and supports up to 61 Ethernet devices, making it ideal for large-scale distributed control systems. With the ability to manage 8 remote I/O racks of X80, this processor ensures efficient and reliable data processing.
Technical Specifications Breakdown
- Memory: 8 MB program process RAM, 768 KB data process RAM, and 2 MB program safety RAM, plus 4 GB expandable flash data storage.
- Ethernet Connectivity: 1 Ethernet TCP/IP service port and 2 Ethernet TCP/IP device network ports, enabling robust networking.
- I/O Capacity: Supports up to 2048 discrete I/O and 512 analog I/O locally, with 64 remote I/O stations.
- Cybersecurity: Achilles certified, with DoS prevention, IPSec, SNMP logging, Syslog, TLS, embedded firewall, and more.
- Environmental Tolerance: Operating temperature 32…140 °F (0…60 °C), vibration resistance 3 gn, shock resistance 15 gn, IP20 protection.
Industry Applications
The BMEP582040 excels in process control, discrete manufacturing, and hybrid industries. Its high-speed processing (40 Kinst/ms for 100% Boolean) suits fast-paced production lines. The integrated cybersecurity features protect critical infrastructure, such as power plants or water treatment facilities, from cyber threats.
Installation & Setup Guidance
Mount the BMEP582040 on a compatible Modicon M580 rack. Ensure proper internal power supply via the rack. Connect Ethernet cables to the designated ports for device network and service. Use the USB mini B port for local programming. Follow the IEC 61131-2 standards for safe installation.
Maintenance & Reliability
With an MTBF of 775,000 hours, the BMEP582040 offers exceptional reliability. Regular inspection of status LEDs (RUN, ERR, I/O, DL, BACKUP, ETH MS, ETH NS, SRUN, SMOD, FORCED IO) helps monitor system health. Operate within the specified temperature and humidity ranges to maximize lifespan.
Compatibility & Integration
This processor integrates seamlessly with Modicon M580 architecture, supporting 2 Ethernet communication modules and 16 AS-Interface modules. It communicates via DIO scanner and RIO scanner services. Compatible with X80 remote I/O racks and up to 64 distributed devices.
Selection Guide & Purchasing Advice
Before purchasing, verify your system's rack compatibility and power supply requirements. The BMEP582040 requires 270 mA at 24 V DC. SpareTechPLC offers this module with fast shipping and expert support. Ensure your application needs match the 8MB memory and 61 Ethernet device capacity.
Frequently Asked Questions
Q1: What is the program memory size of the BMEP582040?
A: It has 8 MB of program process RAM, plus 2 MB for safety programs.
Q2: How many Ethernet devices can this processor support?
A: It supports up to 61 Ethernet devices.
Q3: Is the BMEP582040 suitable for safety applications?
A: Yes, it includes dedicated safety memory (2 MB program, 512 KB data) and safety mode LED (SRUN).
Q4: What cybersecurity features does it offer?
A: It is Achilles certified, with DoS prevention, IPSec, SNMP logging, TLS, embedded firewall, and more.
Q5: What is the operating temperature range?
A: It operates from 32 to 140 °F (0 to 60 °C).
