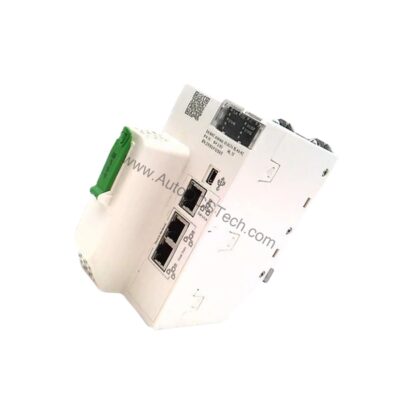

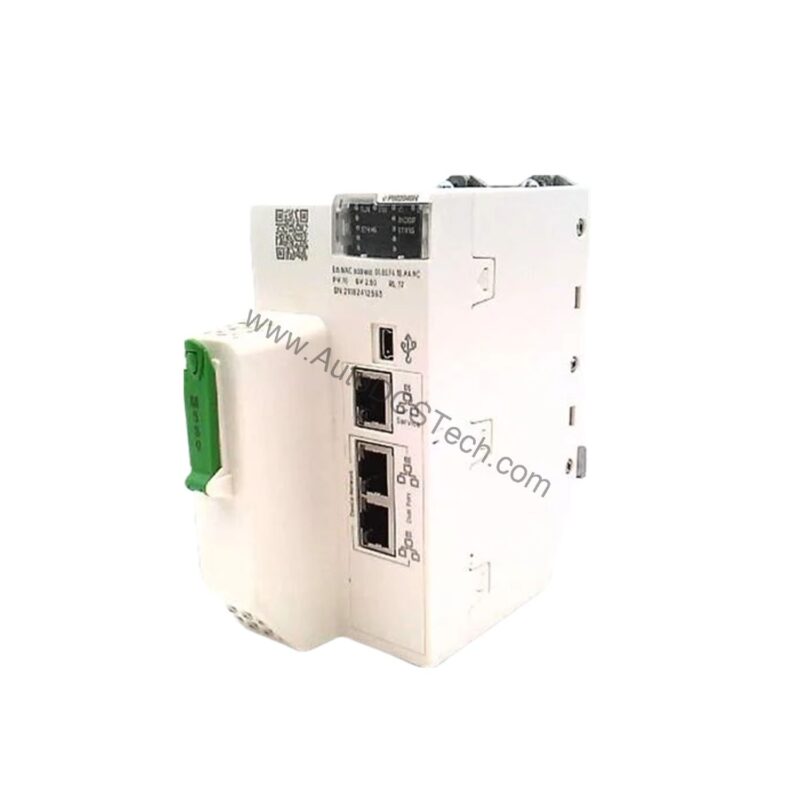

BMEP582040H: Modicon M580 Processor Module for Severe Environments
The BMEP582040H is the Modicon M580 Processor Module for Severe Environments covered on this page. The attribute that decides whether it fits the existing installation without modification is 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean.
The reason to specify this exact variant is modicon m580 processor module for severe environments. A processor or controller is selected on memory, scan time and platform compatibility before anything else. modicon m580 processor module for severe environments sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | BMEP582040H |
| Range of Product | Modicon M580 |
| Product or Component Type | Processor module |
| Product Specific Application | For severe environments |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 2048 I/O |
| Local I/O processor capacity (analog) | 512 I/O |
| Integrated connection type | 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB type mini B |
| Number of remote I/O station | 8 - 2 remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 2 Ethernet communication module, 16 AS-Interface module |
| Communication Service | RIO scanner, DIO scanner |
| Memory description | Expandable flash, 4 GB data storage, Integrated RAM, 10 kB system memory, Integrated RAM, 8 MB program, Integrated RAM, 768 kB data |
| Application structure | 1 periodic fast task, 64 event tasks, 1 cyclic/periodic master task, 2 auxiliary tasks |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean |
| Current consumption | 270 mA 24 V DC |
| MTBF reliability | 775000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Protective treatment | Conformal coating |
| Supply | Internal power supply via rack |
| Net Weight | 1.872 lb(US) (0.849 kg) |
| Ordering and shipping details | Category US1PC3418161, Discount Schedule PC34, GTIN 3595864174495, Returnability No, Country of origin FR |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-bmep582040-modicon-m580-standalone-processor-module-8mb | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | BMEP582040H |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
