Product Overview

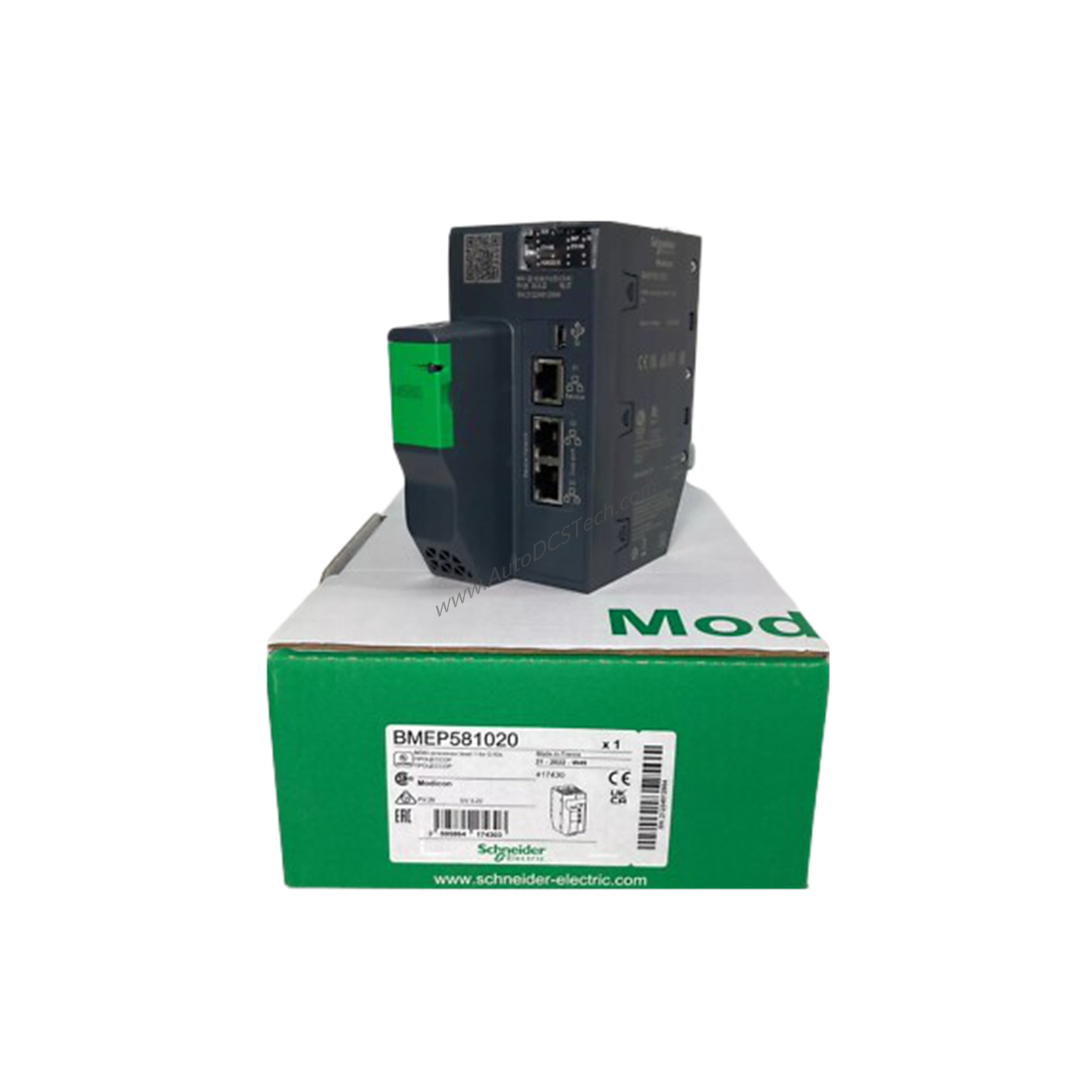

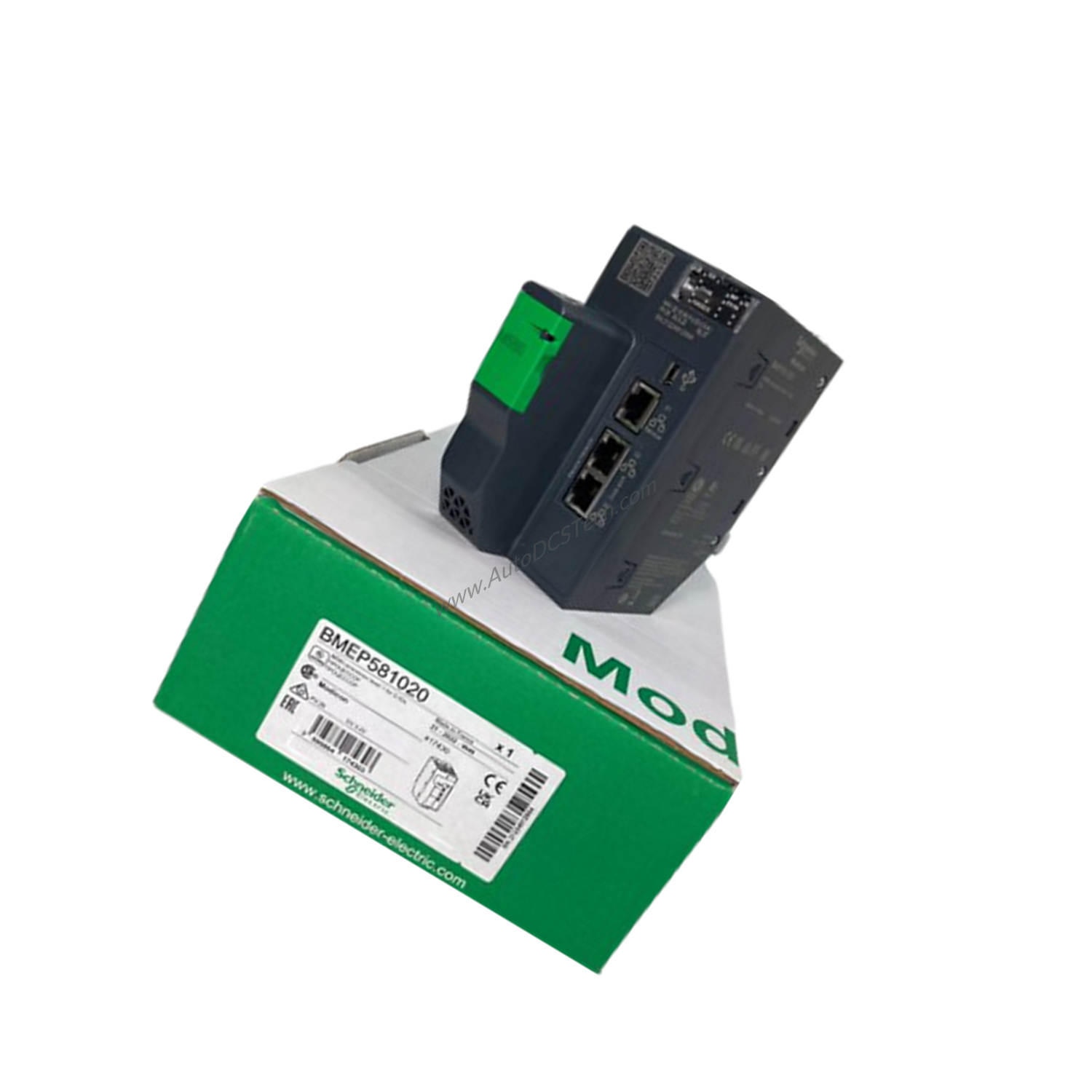

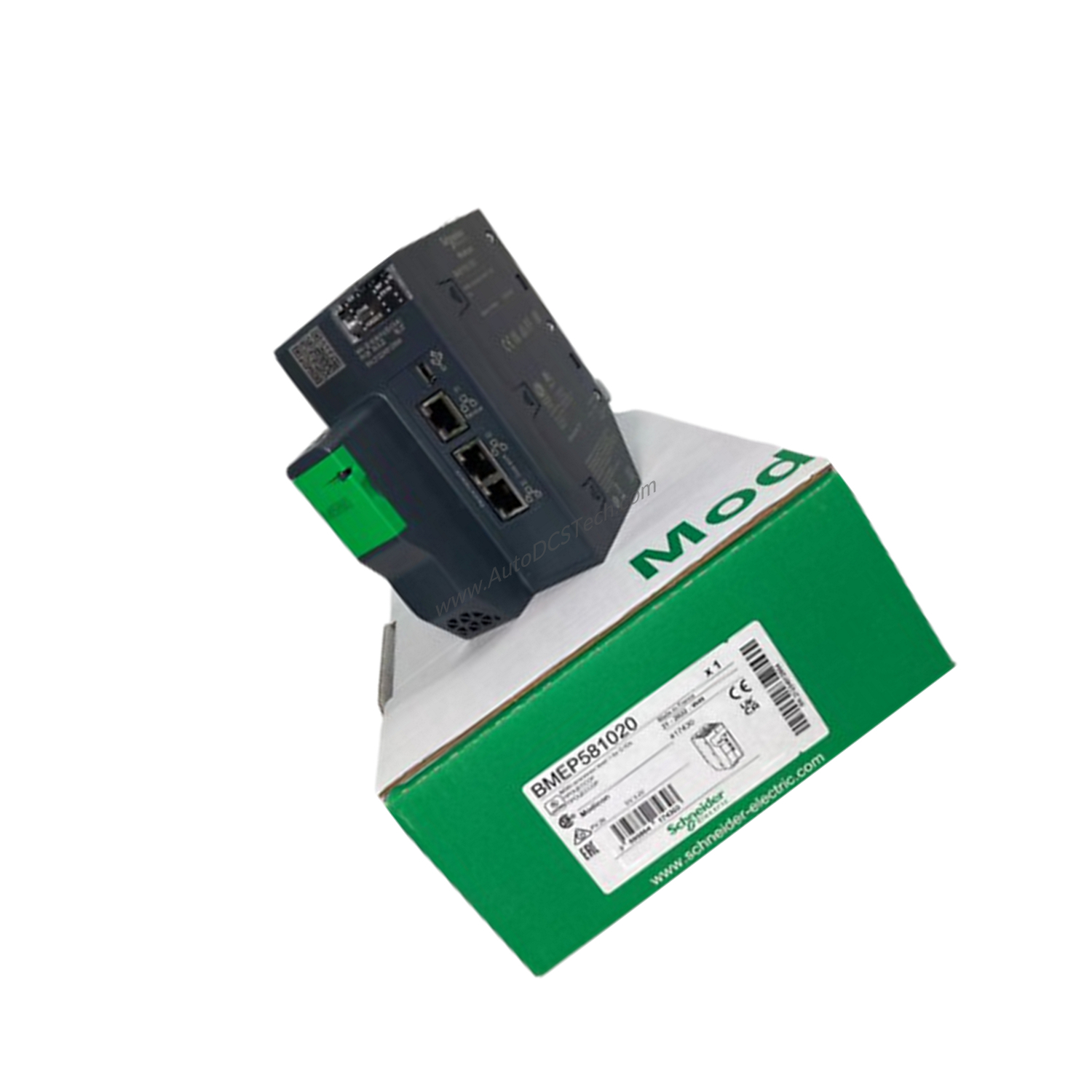

When your control system demands high performance and robust cybersecurity, the Schneider BMEP581020 processor module delivers. Part of the Modicon M580 family, this standalone processor handles complex automation tasks with ease. It supports up to 61 Ethernet devices and manages 4 local I/O racks, accommodating 1024 digital and 256 analog I/O points. Designed for process control, motion control, and accurate time stamping, the BMEP581020 is a versatile core for modern industrial networks.
Technical Specifications Breakdown
Key specifications from the BMEP581020 include:
- Memory: Integrated RAM with 4 MB for program, 384 kB for data, and 10 kB system memory. Expandable flash up to 4 GB for data storage.
- Performance: 30 K instructions per ms (65% Boolean + 35% fixed arithmetic) and 40 K instructions per ms (100% Boolean).
- Connectivity: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports, and 1 USB type mini B port.
- Current Consumption: 270 mA at 24 V DC.
- Environmental: Operating temperature 32…140 °F (0…60 °C), storage temperature -40…185 °F (-40…85 °C), vibration resistance 3 gn, shock resistance 30 gn, IP20 protection.
- Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy; Achilles certified for cybersecurity.
These specs ensure reliable operation in harsh industrial environments while maintaining high-speed processing and secure communication.
Industry Applications
In process control applications, the BMEP581020 excels with its 36 application-specific channels for accurate time stamping, motion control, counters, HART, SSI encoder, and serial links. For example, in a chemical plant, it manages 64 distributed devices and 2 Ethernet communication modules, ensuring precise loop control and data integrity. Its cybersecurity features—including embedded firewall, IPSec, and DoS prevention—make it ideal for critical infrastructure where network security is paramount.
Installation & Setup Guidance
Mount the BMEP581020 on a Modicon M580 rack. Connect the internal power supply via the rack. Use the Ethernet TCP/IP service port for initial configuration. Ensure ambient temperature stays within 32…140 °F (0…60 °C) and relative humidity between 5…95% at 131 °F (55 °C) without condensation. For altitudes above 2000 m, apply derating factors as specified. No special tools required; follow standard PLC installation practices.
Maintenance & Reliability
With an MTBF reliability of 775,000 hours, the BMEP581020 offers long service life. Routine maintenance includes inspecting status LEDs (RUN, ERR, I/O, DL, BACKUP, ETH MS, Eth NS) for any fault indications. Keep the enclosure clean and ensure proper ventilation. The IP20 rating requires installation in a clean, dry cabinet. Regular firmware updates via the USB port help maintain cybersecurity posture.
Compatibility & Integration
The BMEP581020 integrates seamlessly with Modicon M580 ecosystem components. It supports up to 2 Ethernet communication modules and 2 AS-Interface modules. Communication services include DIO scanner. It works with 64 distributed equipment and up to 61 Ethernet devices. The processor handles 4 local I/O racks and supports 36 application-specific channels for specialized I/O like HART and SSI encoder. For programming, use EcoStruxure Control Expert software.
Buying Guide
Before purchasing the BMEP581020, verify your system requirements: ensure your rack supports this processor, and confirm the number of I/O points (1024 digital, 256 analog) meets your needs. Check compatibility with existing Ethernet devices and communication modules. SpareTechPLC offers this genuine Schneider module with fast shipping. Contact our team for current lifecycle status and availability.
Frequently Asked Questions
Q: What is the memory capacity of the BMEP581020?
A: It has 4 MB integrated RAM for program, 384 kB for data, 10 kB system memory, and expandable flash up to 4 GB for data storage.
Q: How many Ethernet devices can the BMEP581020 support?
A: It supports up to 61 Ethernet devices across its two Ethernet TCP/IP device network ports.
Q: What cybersecurity certifications does the BMEP581020 have?
A: It is Achilles certified and includes features like embedded firewall, IPSec, DoS prevention, and secure communication (HTTPS).
Q: What is the operating temperature range for this module?
A: The ambient air temperature for operation is 32…140 °F (0…60 °C).
Q: Does the BMEP581020 support motion control?
A: Yes, it supports motion control along with accurate time stamping, counters, HART, SSI encoder, and serial links via its application-specific channels.
