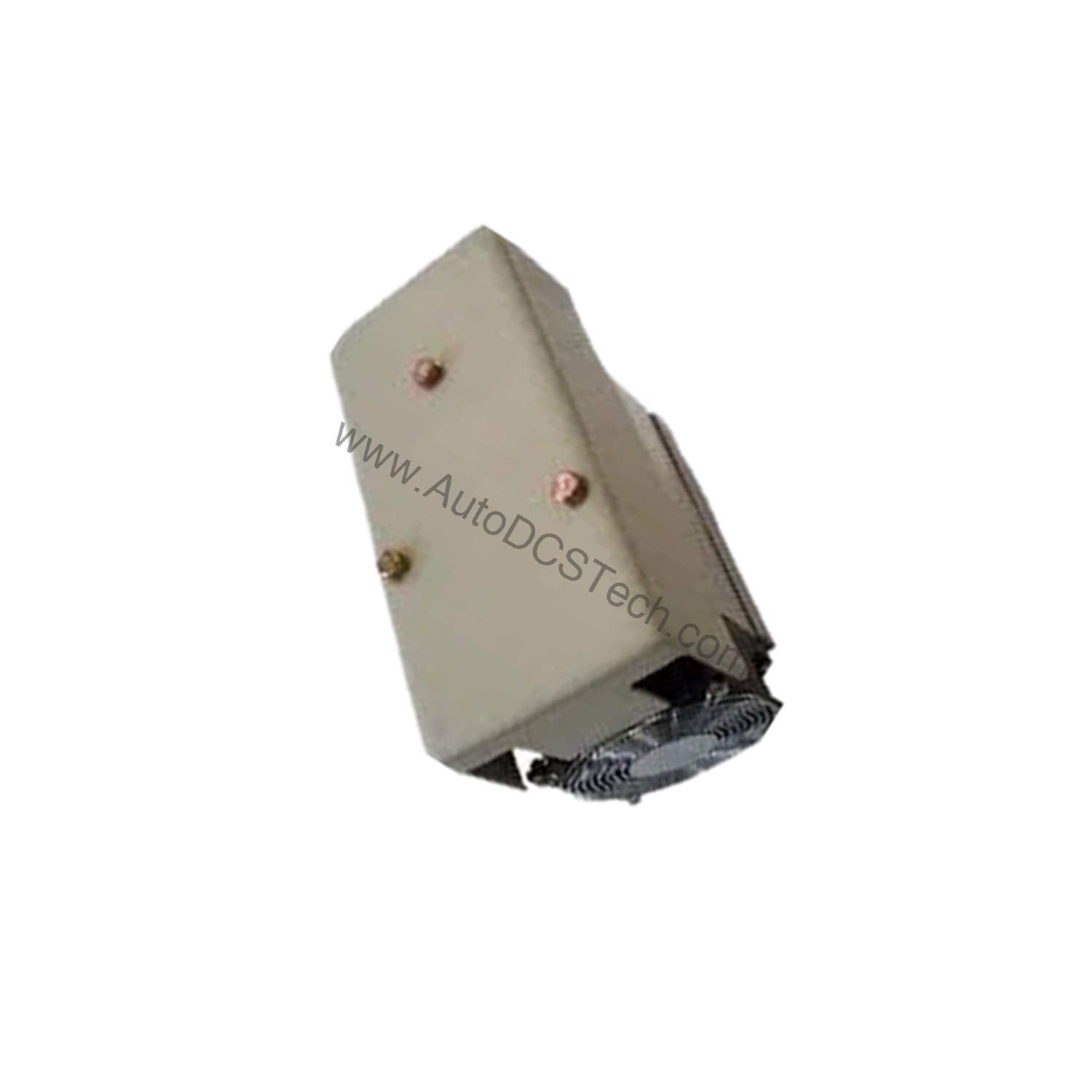

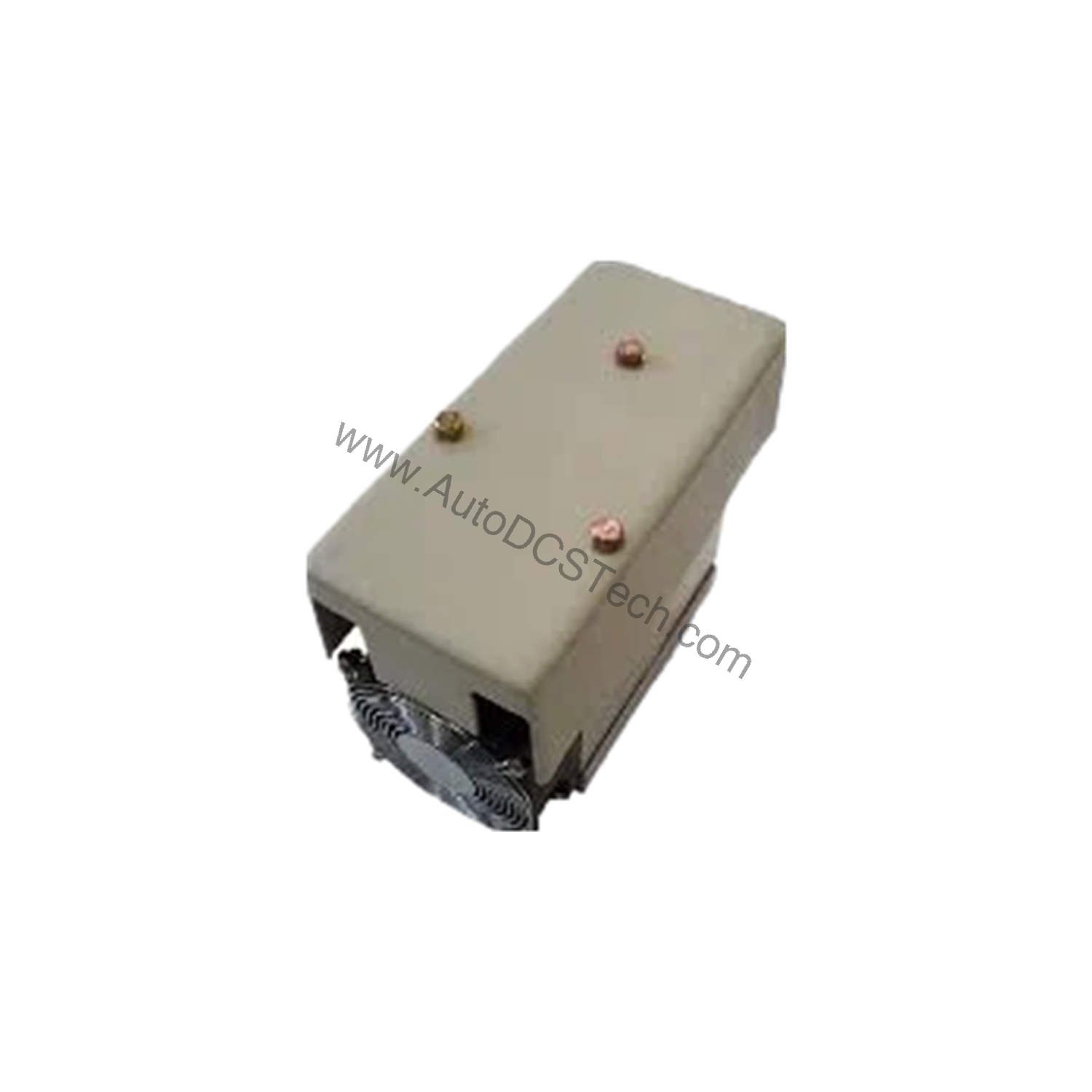

Lenze EME9364-E Power Supply Module | Series 9300 | 74A

Technical Specifications Breakdown

Key parameters for the EME9364-E are listed below for quick reference:

Industry Applications

This power supply module is designed for use in demanding industrial environments. Its wide supply voltage range and robust current handling make it suitable for applications such as:

• Machine Tools: Provides stable DC bus power for servo drives and spindle motors, ensuring precise machining operations.
• Material Handling: Powers conveyor systems and automated guided vehicles, where consistent power is critical for uptime.
• Process Automation: Supports continuous processes in chemical or food plants, where voltage fluctuations are common.

Installation & Setup Guidance

When installing the EME9364-E, consider its protection class IP00, which denotes an open design without additional housing for dust or moisture protection. Therefore, mount the module in a clean, dry, and well-ventilated control cabinet. Ensure adequate clearance for airflow to maintain ambient operating temperature within -10 to 40°C. Use proper busbar connections for the DC bus and follow Lenze's guidelines for AC supply wiring. Always verify that the supply voltage is within the 100 to 550 Volts AC range before energizing.

Maintenance & Reliability

Regular inspection is essential to maintain reliability. Check for dust accumulation on heatsinks and ensure fans (if any) are operational. Since the module operates with a power loss of 173 Watts, verify that the cabinet cooling is sufficient to keep temperatures within the specified range. Periodically inspect all electrical connections for tightness and signs of corrosion. For storage, keep the module in an environment between -25 and 75°C to avoid damage.

Compatibility & Integration

The EME9364-E is part of the Lenze Series 9300, designed to integrate with other Series 9300 components. Its main frequency range of 48 to 62 Hertz ensures compatibility with various power grids. The module provides a DC bus current of 90 Amperes (maximum 135 Amperes), making it suitable for powering multiple drives in a shared DC bus configuration. Always verify that all connected devices are compatible with the DC bus specifications.

Selection Guide & Purchasing Advice

When selecting a power supply module, evaluate your system's peak current demands and environmental conditions. The EME9364-E offers a maximum output rating of 75 kilowatt, providing headroom for applications that may experience transient overloads. At AutoDCSTech, we stock this module and can advise on availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the module fails to start, check the AC supply voltage and frequency. Ensure that the incoming voltage is within 100 to 550 Volts AC and the frequency is between 48 and 62 Hertz. If the module trips on overcurrent, verify that the connected load does not exceed the maximum DC bus current of 135 Amperes. Overheating can occur if the ambient temperature exceeds 40°C; improve cabinet ventilation. For persistent issues, consult Lenze documentation or contact AutoDCSTech for technical support.
