Technical Specifications Breakdown
Key parameters for the E84AVSCE7524VX0 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Input Voltage Range | 400-500 V AC |
| Output Voltage Range | 0-500 V AC |
| Switching Frequency | Adjustable: 2, 4, 8, or 16 kHz |
| Power Loss | 320 W at rated output current |
| Input Current (up to +45 °C) | 20.0 A (400 V) / 16.0 A (500 V) |
| Input Current (up to +55 °C) | 15.0 A (400 V) / 12.0 A (500 V) |
| Output Current (up to +45 °C) | 16.5 A (400 V) / 13.2 A (500 V) |
| Output Current (up to +55 °C) | 12.4 A (400 V) / 9.9 A (500 V) |
| Control Modes | V/f, SLVC, SLPSM, Servo Control |
| Protection Rating | IP20 |
| Max Operating Temperature | 55 °C |
| EMC Compliance | EN 61800-3, C2 or C1 (with filtering) |
| Motor Cable Length | Up to 50 m (shielded) |
| Cooling Method | Forced air with temperature monitoring |
Real-World Applications and Operational Benefits
For example, in conveyor systems, the adjustable switching frequency (2, 4, 8, or 16 kHz) lets you optimize performance while minimizing acoustic noise. In pump and fan applications, the V/f control mode ensures energy savings by matching motor speed to demand. The drive's ability to operate at input voltages from 400 to 500 V AC makes it versatile for global installations.
Installation and Setup Guidance
Proper installation is key to maximizing the lifespan of your drive. Mount the unit in a clean, dry environment that meets the IP20 protection rating. Ensure adequate airflow around the drive for forced air cooling. Use shielded motor cables up to 50 meters to maintain signal integrity. For EMC compliance, follow EN 61800-3 guidelines and use appropriate filters to achieve C2 or C1 classification. Always verify that the input voltage matches your supply before energizing.
Maintenance and Reliability Tips
Regular maintenance keeps your drive operating reliably. Inspect the cooling fan and air filters periodically to prevent dust buildup. Monitor the operating temperature; the drive is rated up to 55 °C, but higher temperatures reduce output current capacity. Check all electrical connections for tightness and signs of wear. If you notice unusual noise or overheating, contact a qualified technician.
Compatibility and Integration

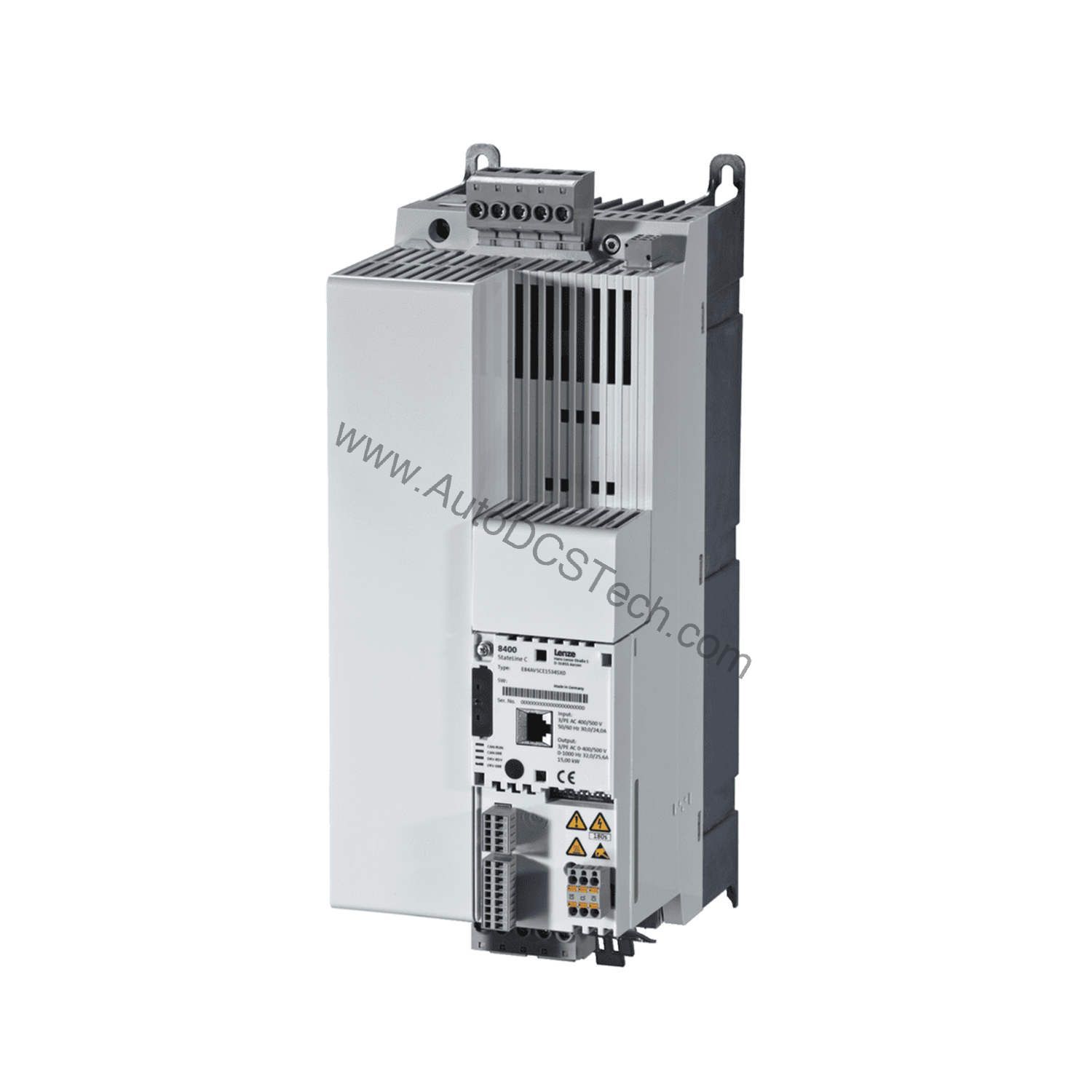

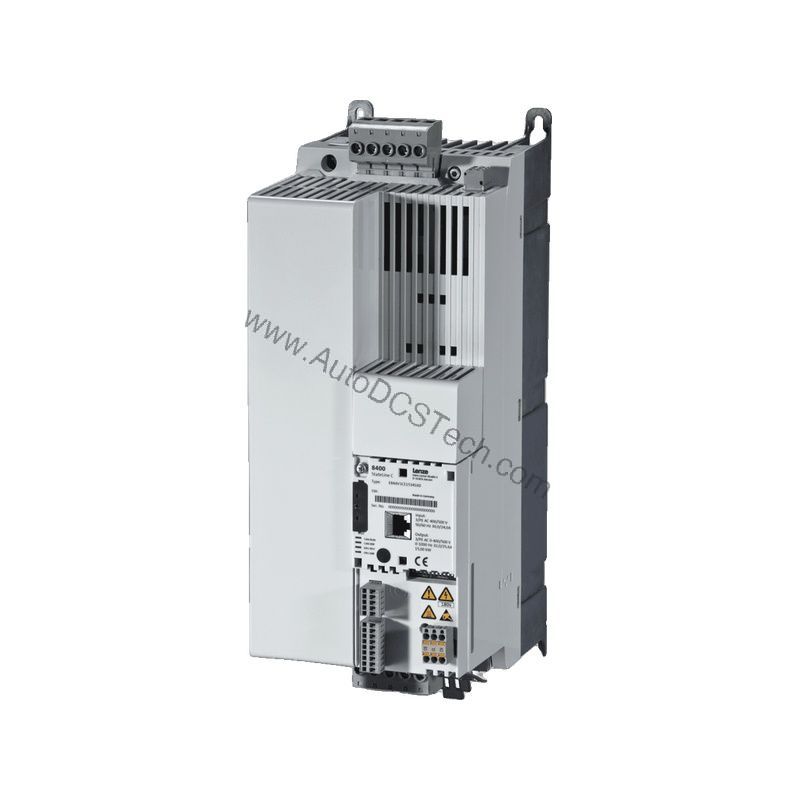

The E84AVSCE7524VX0 is part of Lenze's Series 8400, designed for seamless integration into existing motor control systems. It supports multiple control modes, including V/f, SLVC, SLPSM, and servo control, giving you flexibility for various motor types. The adjustable switching frequency allows you to tailor performance to your application. Always consult the product manual for detailed wiring and configuration instructions.
Selection Guide and Purchasing Advice
When selecting a variable frequency drive, consider your motor's power rating, input voltage, and required control features. The Lenze E84AVSCE7524VX0 offers a balanced combination of performance and durability. For expert advice and competitive pricing, contact AutoDCSTech. We are your trusted partner for industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | E84AVSCE7524VX0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
