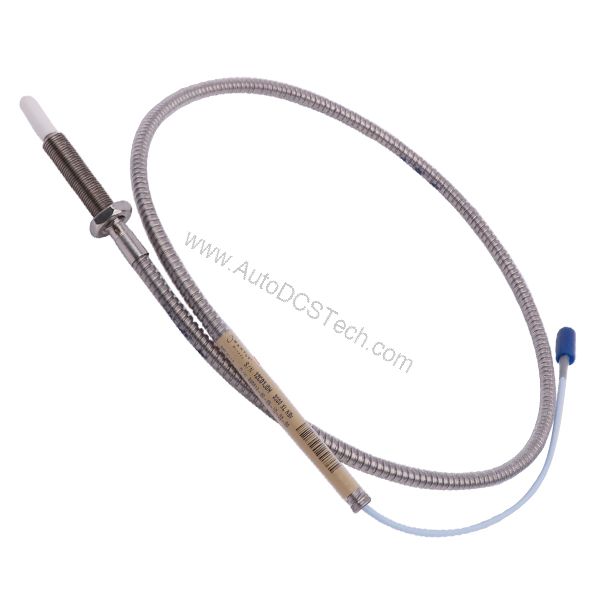

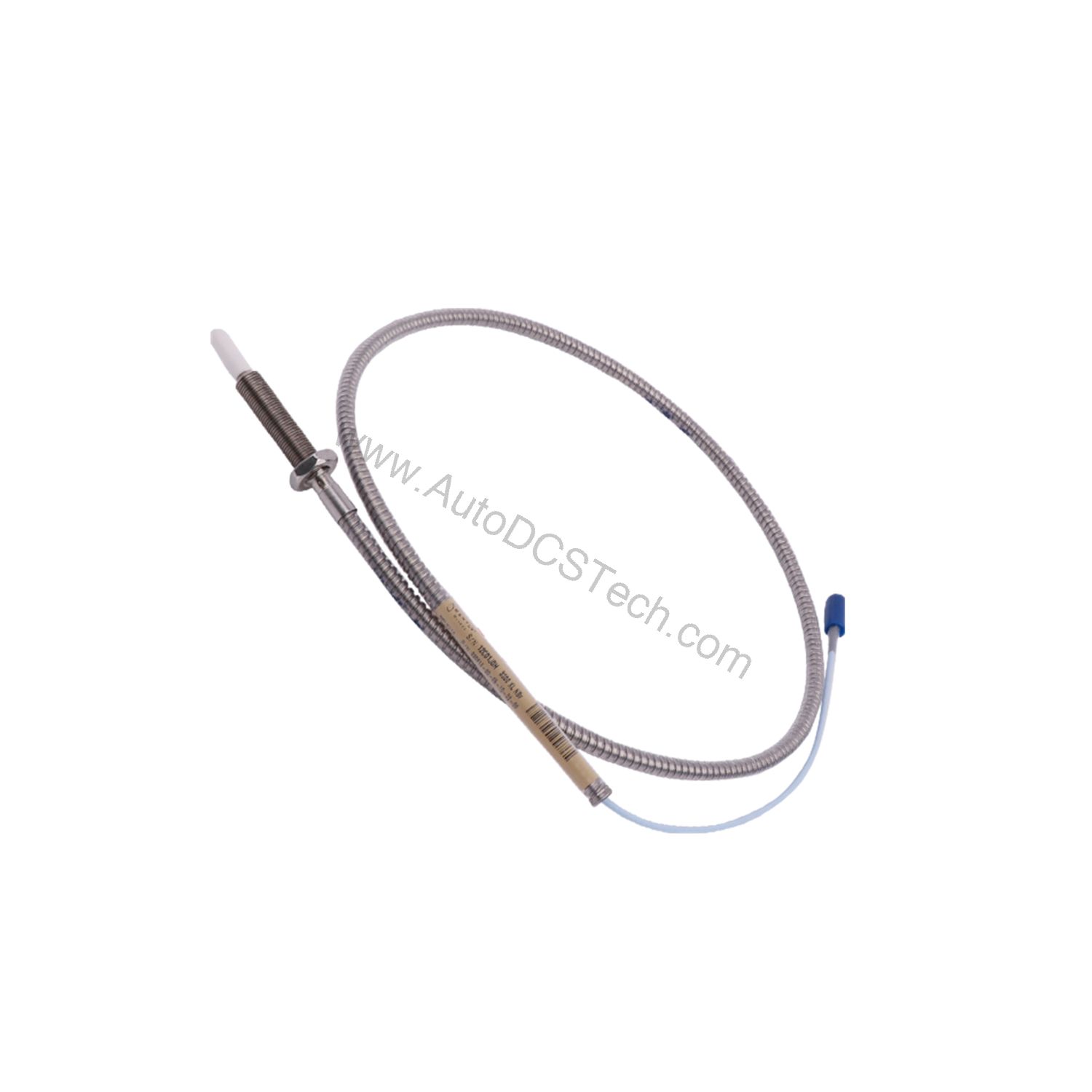

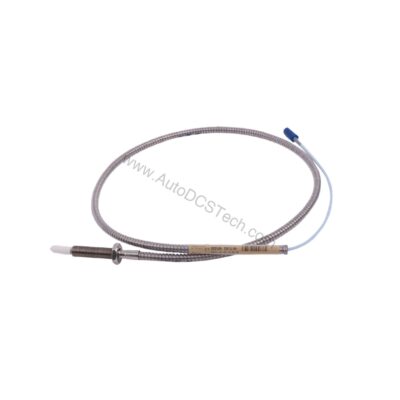

330910-07-23-05-02-00 0.5m Cable Bently Nevada Proximity Probe

Introduction to the 330910-07-23-05-02-00

When rotating machinery experiences unexpected vibration, the 330910-07-23-05-02-00 provides the precise measurement needed to diagnose and correct issues. This Bently Nevada 3300 NSv proximity probe is engineered for reliable shaft vibration and position monitoring in critical industrial applications.

With a 0.5 meter total length and M10X1 thread with armor, this probe integrates seamlessly into existing monitoring systems. The miniature coaxial ClickLoc connector ensures secure and repeatable connections, while the standard cable offers dependable signal transmission.

Key Features and Technical Specifications

The 330910-07-23-05-02-00 is built to perform under demanding conditions. Its specifications are designed for accuracy and durability.

• Model: 3300 NSv Proximity Probes with M10X1 thread and armor.
• Unthreaded length: 70 mm, ensuring proper mounting clearance.
• Overall case length: 230 mm, providing robust sensor housing.
• Total length: 0.5 meter (20 inches) for flexible installation.
• Connector: Miniature coaxial ClickLoc with standard cable.
• Probe tip material: Polyphenylene sulfide (PPS) for chemical resistance.
• Probe case material: AISI 304 stainless steel for corrosion resistance.
• Cable: 75 Ω coaxial, FEP insulated, available in 0.5, 1, 5, or 7 meters.
• DC resistance (RPROBE): 4.0 ± 0.5 ohms from center to outer conductor.
• Operating temperature: -52°C to +177°C (-62°F to +351°F).

One distinctive spec is the probe's DC resistance of 4.0 ± 0.5 ohms. This tight tolerance ensures consistent signal strength and reliable gap measurements, which is critical for accurate vibration analysis.

Applications and Use Cases

The 330910-07-23-05-02-00 excels in turbomachinery monitoring, including steam turbines, compressors, and pumps. Its robust construction and temperature range make it suitable for harsh environments. For example, in a refinery, this probe can monitor shaft vibration in a high-speed compressor, helping to prevent unplanned downtime. Furthermore, its 75 Ω cable is compatible with standard Bently Nevada monitoring systems, simplifying integration.

Installation and Setup

Proper installation is key to accurate readings. The M10X1 thread allows for secure mounting, with a recommended torque of 11.3 N•m (100 in•lb) and a maximum of 33.9 N•m (300 in•lb). The unthreaded length must be at least 20 mm less than the case length to ensure correct positioning. The connector-to-connector torque should be finger tight, with a maximum of 0.56 N•m (5 in•lb). Finally, maintain a minimum bend radius of 25.4 mm (1.0 in) for the cable to prevent damage.

Maintenance and Reliability

Regular inspection of the probe and cable is recommended to ensure long-term reliability. Check for any signs of wear or damage, especially at the connector and cable bend points. The stainless steel case and PPS tip resist corrosion and chemical attack, reducing maintenance frequency. However, exposing the probe to temperatures below -34°C (-30°F) for extended periods may cause premature failure of the pressure seal, so avoid such conditions.

Compatibility and Integration

This probe is part of the Bently Nevada 3300 NSv series, designed for use with Bently Nevada monitoring systems. The 75 Ω coaxial cable and ClickLoc connector are industry-standard, ensuring compatibility with existing installations. For specific system integration details, refer to the official Bently Nevada documentation or contact AutoDCSTech.

Troubleshooting Common Issues

If readings are inconsistent, first check the cable for damage or loose connections. Verify that the probe is properly torqued and that the gap is within the specified range. Also, confirm that the ambient temperature is within the operating range. If problems persist, consult the manufacturer's manual or contact AutoDCSTech for support.

Product Support and Availability

The 330910-07-23-05-02-00 is available at AutoDCSTech. It is supplied as new and original in factory packing. For ordering or technical inquiries, contact AutoDCSTech for assistance.
