Product Overview

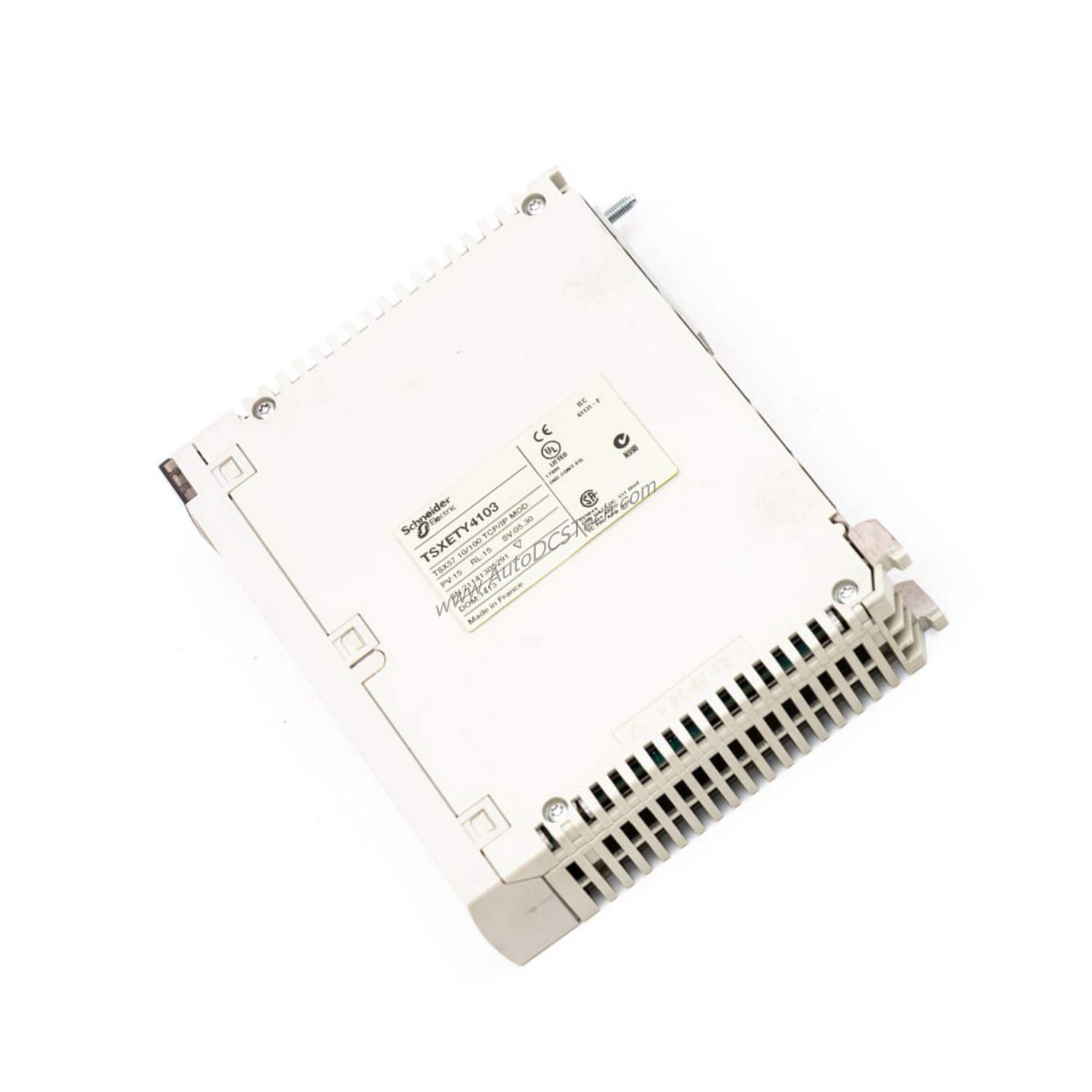

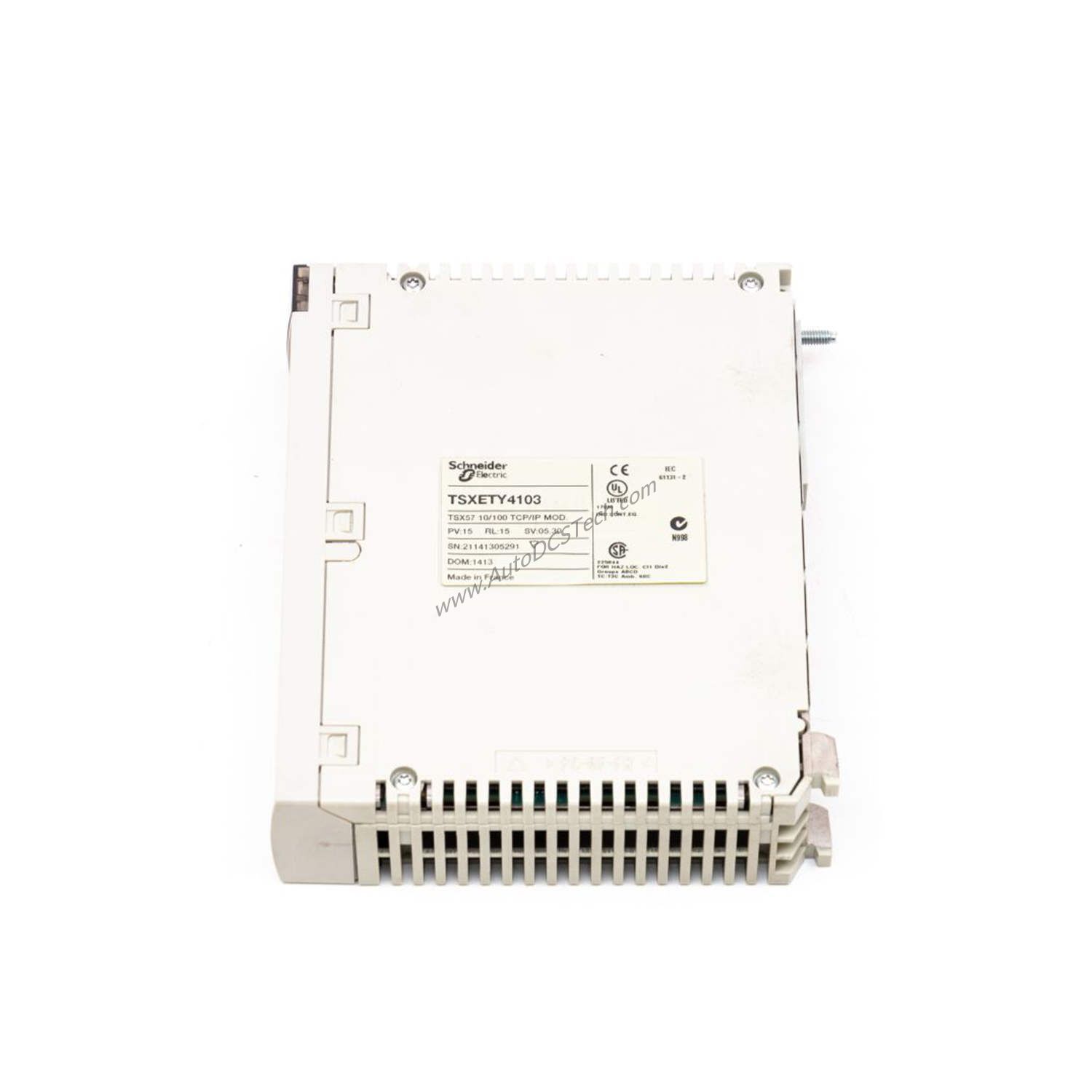

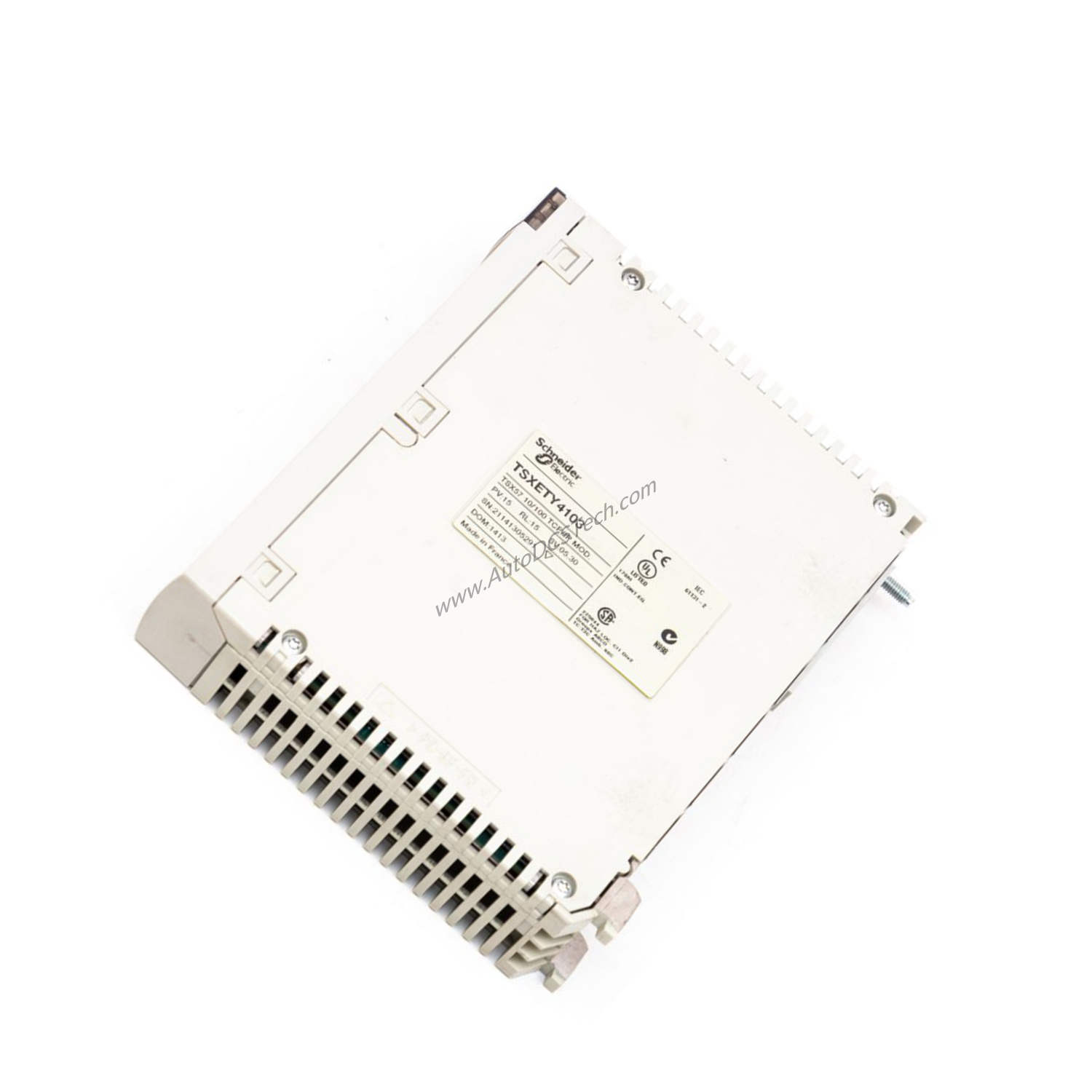

When your automation network demands reliable Ethernet connectivity, the Schneider TSXETY4103 Ethernet TCP/IP module delivers seamless integration for TSX Micro PLCs. Designed as a standard module format, it supports up to 64 concurrent connections and offers dual-protocol communication via Uni-Telway and Modbus TCP. This module is compatible with PL7 Pro and Unity Pro software, making it a versatile choice for upgrading or expanding existing control systems.
Technical Specifications Breakdown
The TSXETY4103 operates with a current consumption of 360 mA at 5 V DC, supplied directly from the rack. Its physical interface uses an RJ45 connector supporting 10BASE-T and 100BASE-TX twisted-pair cabling, with transmission rates of 10 or 100 Mbit/s. The module includes four local signaling LEDs: COL for collision detection, RUN for Ethernet network status, ERR for port faults, and TX/TR for transmission/reception activity. This clear visual feedback simplifies diagnostics and reduces troubleshooting time.
Industry Applications
In manufacturing environments, the TSXETY4103 enables real-time data exchange between PLCs and supervisory systems. For example, in a packaging line, it supports Modbus TCP messaging for I/O scanning and global data sharing, ensuring synchronized operation across multiple machines. The web server, classified as transparent ready class B30, provides rack viewer and data editor functions via a PC terminal, allowing engineers to monitor performance remotely.
Installation & Setup Guidance
Mount the TSXETY4103 in any standard slot of a TSX Micro PLC rack. Connect the RJ45 port to your Ethernet network using a twisted-pair cable. Power is supplied via the rack, so no additional wiring is needed. Configure the module using PL7 Pro or Unity Pro software, selecting the appropriate communication services such as bandwidth management, FDR server, or SMTP e-mail notification. Verify LED status after power-up: RUN should be steady green for normal operation.
Maintenance & Reliability
The TSXETY4103 is built for continuous industrial use with an IP20 degree of protection. It operates in ambient air temperatures from 0 to 60 °C and withstands relative humidity of 10 to 95% at 60 °C without condensation. Periodic inspection of the RJ45 connection and LED indicators helps ensure reliable performance. No internal maintenance is required; simply keep the module free from dust and moisture.
Compatibility & Integration
This module integrates seamlessly with the TSX Micro PLCs product line and supports both Uni-Telway and Modbus TCP communication protocols. It offers a wide range of communication services, including bandwidth management, FDR server, global data I/O scanning, Modbus TCP messaging, SMTP e-mail notification, SNMP agent, and Uni-TE messaging. The web server enables rack viewer and data editor functions via a PC terminal, enhancing remote accessibility.
Selection Guide & Purchasing Advice
Before purchasing, verify that your PLC rack has an available slot and that your software environment includes PL7 Pro or Unity Pro. The TSXETY4103 weighs 0.45 kg (1.00 lbs) and ships in a compact package measuring 26.0 x 18.0 x 5.5 cm. For current availability and lifecycle status, contact SpareTechPLC. Our team can confirm stock levels and recommend compatible accessories if needed.
Frequently Asked Questions
Q1: What is the maximum number of connections supported by the TSXETY4103?
A: The module supports up to 64 concurrent connections.
Q2: Which communication protocols does the TSXETY4103 use?
A: It supports Uni-Telway and Modbus TCP protocols.
Q3: Can the TSXETY4103 be used with Unity Pro software?
A: Yes, it is compatible with both PL7 Pro and Unity Pro.
Q4: What does the COL LED indicate?
A: The COL LED indicates collision detection on the Ethernet network.
Q5: What is the power supply requirement for the TSXETY4103?
A: It is supplied via the power supply of the rack, consuming 360 mA at 5 V DC.
